Pinions simple Z45 with taper T2012 08B-1 ISO 606

€66.35 Tax included

53.94 tax excl.

Instead of €66.35

PK-PZ4508B1T2012

Pinions single with bushing taper lock 2012 for roller chain 08B-1 according to norm European DIN ISO 606

Teeth: 45

ISO: 08B-1

Taper lock available in various shaft diameter sizes. Please select the desired size.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pinions single with bushing taper lock 2012 roller chain bushing 08B-1 according to norm European DIN ISO 606

The bushings are supplied with bore finished to the selected diameter, standardized keyway for the selected shaft diameter, studs and screws.

Manufacturer: Technox

Taper part number: T.L 2012-0xx
Pinion part number: PINHON Z45 1/2-T2012

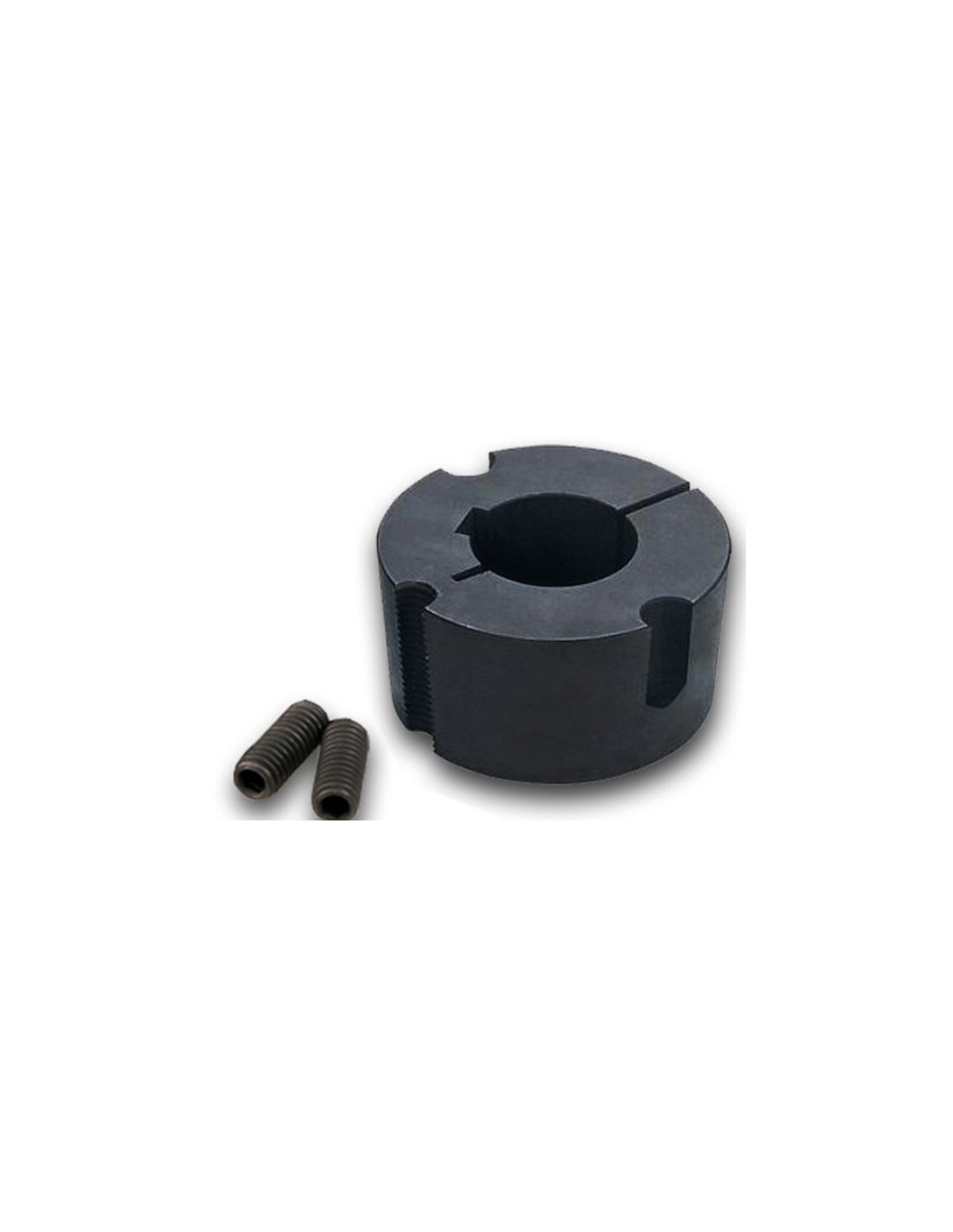

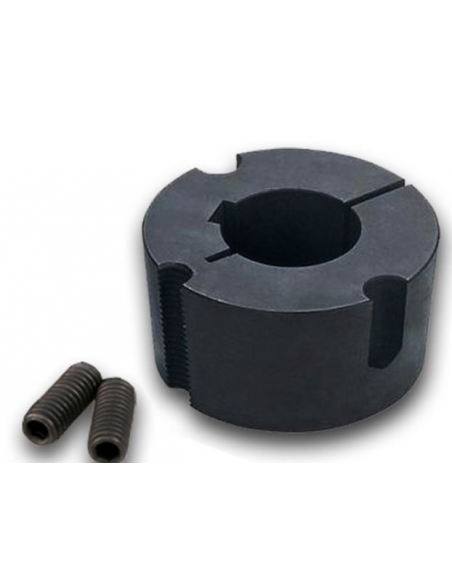

Taper characteristics:

Dimensiones-taper

  • Size: 2012.
  • Available diameters: 18,19,20,21,22,24,25,28,30,32,35,38,40,42,45,48 and 50.
  • Tightening torque: 30.4
  • D1: 70 mm.
  • Type: A.
  • S: 31,8

Pinion characteristics:


  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 45
  • Cap Taper Lock: 2012
  • Outside Diameter (De): 188.0
  • Primitive diameter (Dp): 182.07
  • Hub Diameter (d): 100
  • Width (H): 32


Material for professional use, install in compliance with the regulations in force at the place of installation.
