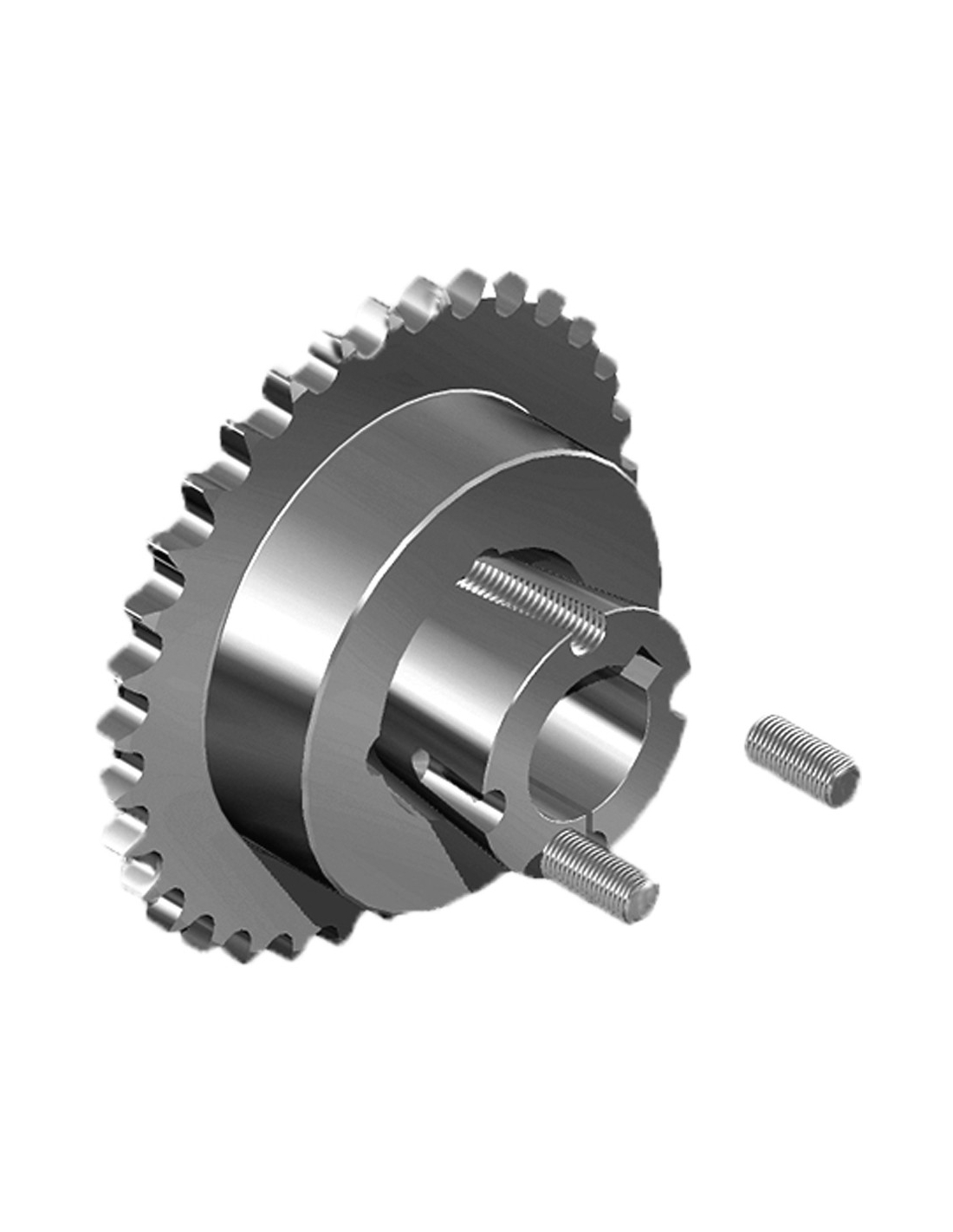

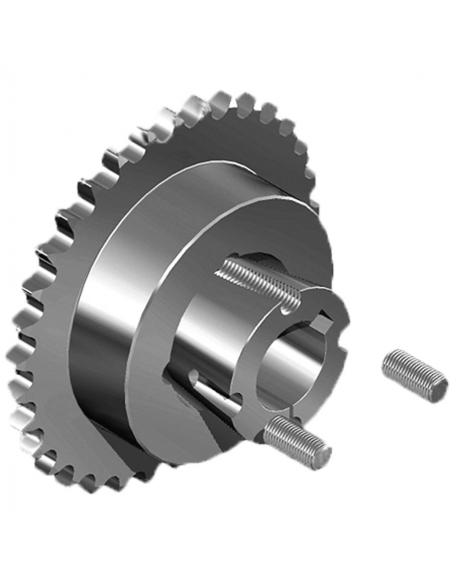

Simple sprockets Z27 with taper T2517 12B-1 ISO 606

€107.81 Tax included

€89.10 tax excl.

Simple sprockets with cap lock taper 2517 for roller chain 12B-1 according to European standard DIN ISO 606

Teeth: 27

ISO: 12B-1

Taper lock available in various shaft diameter sizes. Select the desired measurement.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Simple sprockets with cap taper lock 2517 roller chain 12B-1 according to European standard DIN ISO 606

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

Manufacturer: Technox

Taper reference: T.L 2517-0xx
Pinion reference: PINHON Z27 3/4-T25178

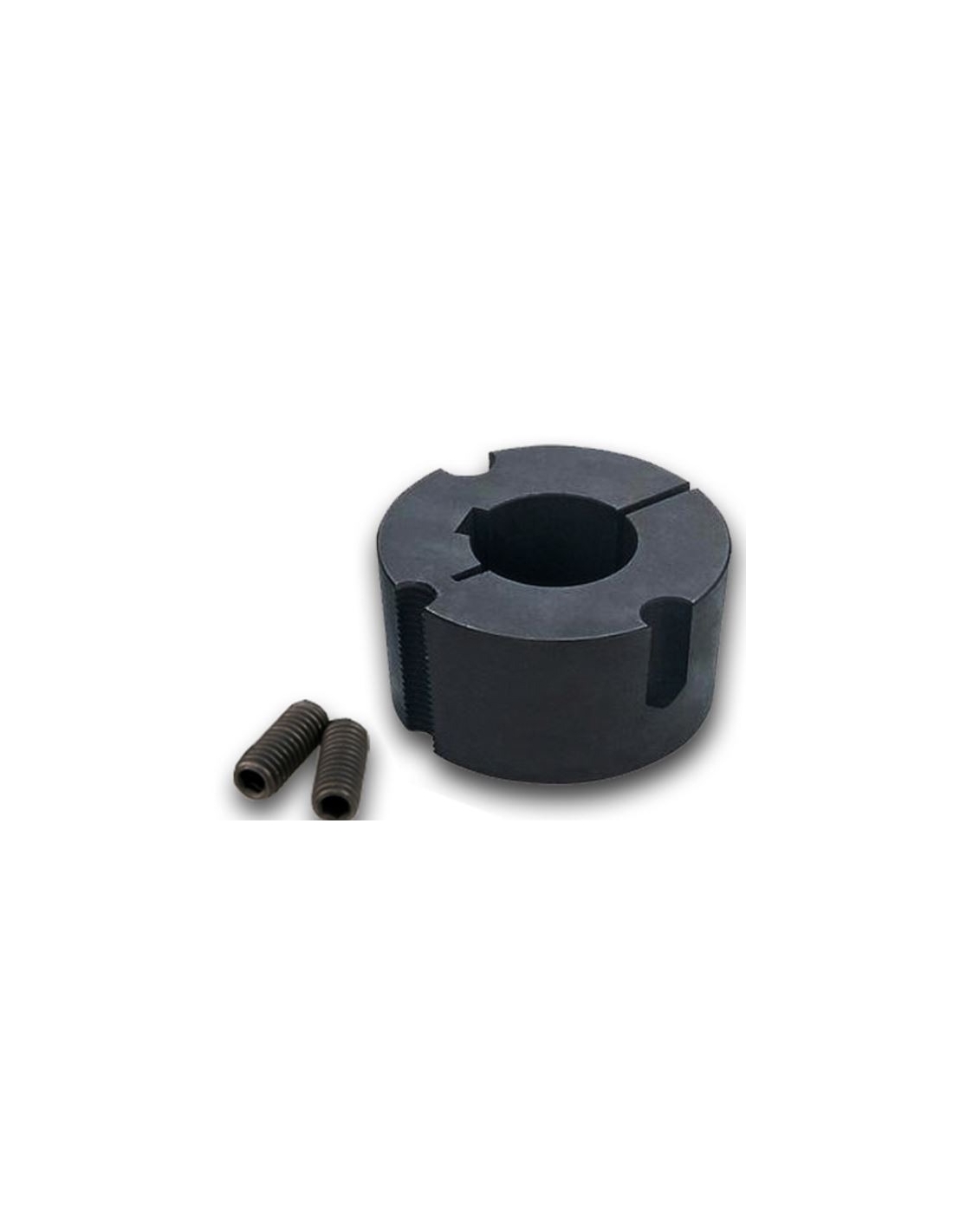

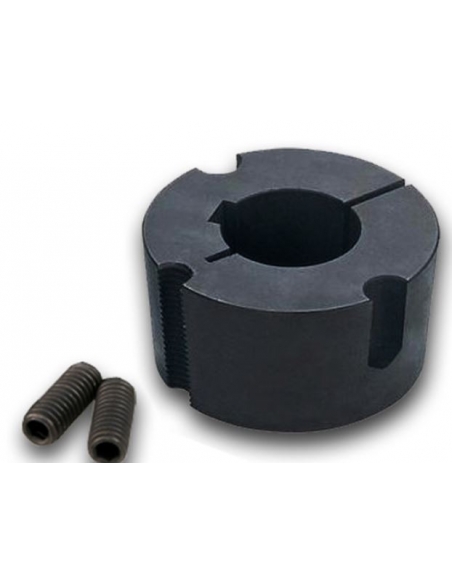

Taper features:

Dimensiones-taper

  • Size: 2517.
  • Available diameters: 16,18,19,20,21,22,24,25,28,30,32,35,38,40,42,45,48,50,55 and 60.
  • Tightening torque: 48.
  • D1: 85.5 mm.
  • Type: A.
  • S: 44.5

Characteristics pine nut:


  • 3/4" x 7/16" mm ISO 12B-1
  • 19.05 x 11.68 mm
  • Teeth: 27
  • Taper Lock: 2517



Material for professional use, install in compliance with the regulations in force at the place of installation.
