Simple taper pinions lock 5/8 x 3/8 10B-1 ISO 606 - ADAJUSA
Simple taper pinions lock 5/8 x 3/8 10B-1 ISO 606 - ADAJUSA

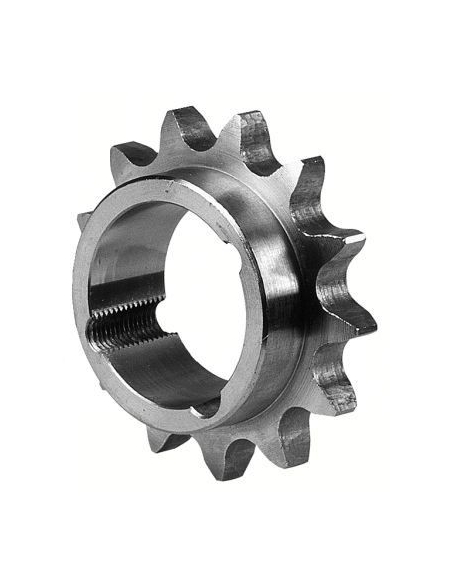

Simple sprockets Z16 taper lock T1108 1/2 x 5/16 08B-1 ISO 606

€14.82 Tax included

€12.25 tax excl.

Simple sprockets for taper lock of bush 1108 of roller chain 08B-1 according to European standard DIN ISO 606

Reference: PINHON Z16 1/2-T1108

Teeth: 16

ISO: 08B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for taper lock of bush 1108 of roller chain 08B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z16 1/2-T11088


Characteristics:

  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 16
  • Taper Lock: 1108
  • Outer Diameter (S): 69.5
  • Primitive diameter (Dp): 65.10
  • Hub diameter (d): 50
  • Width (H): 22


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
