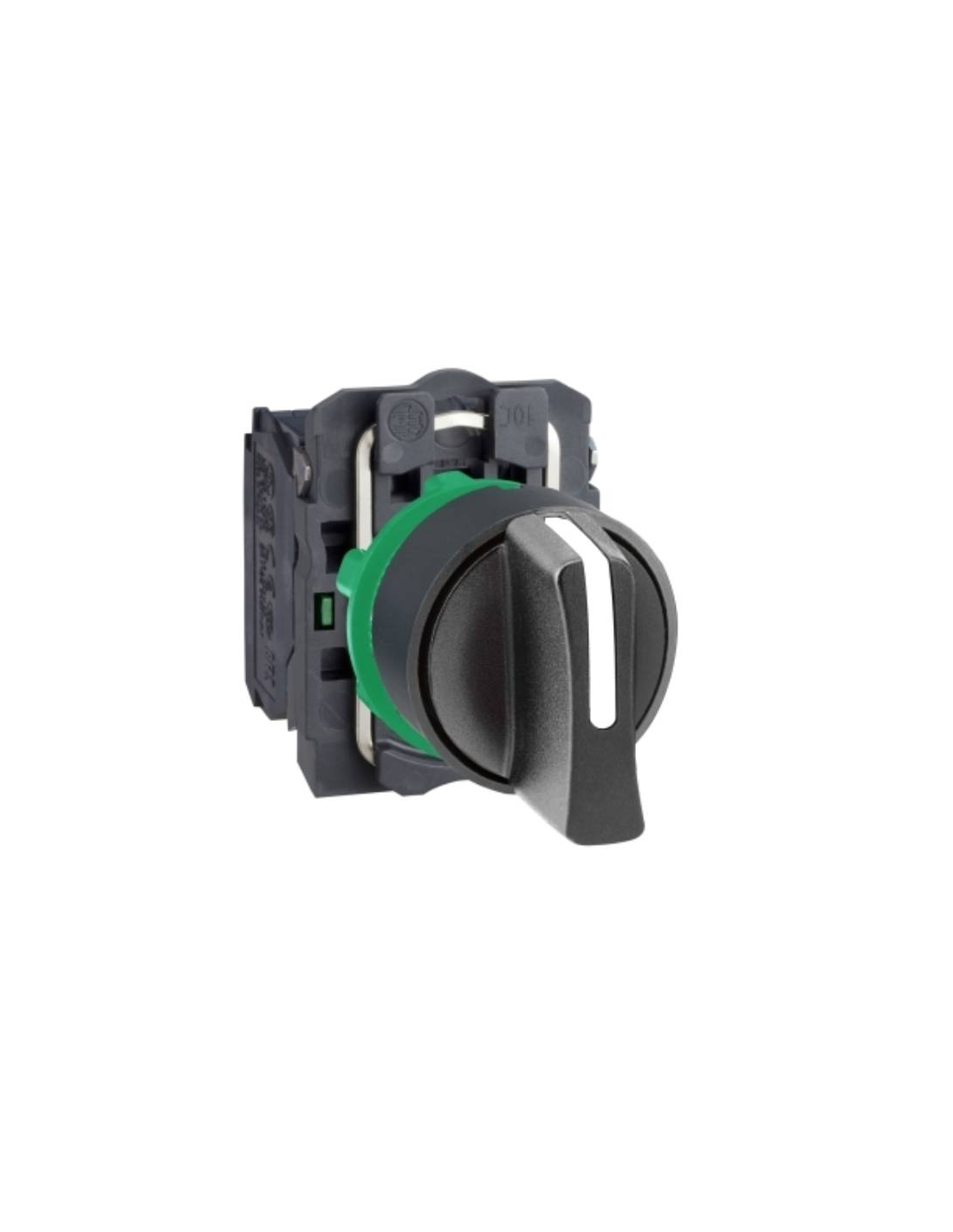

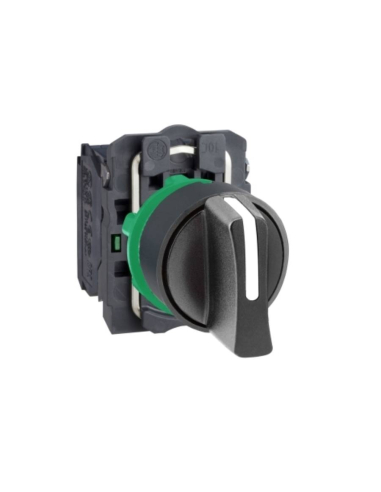

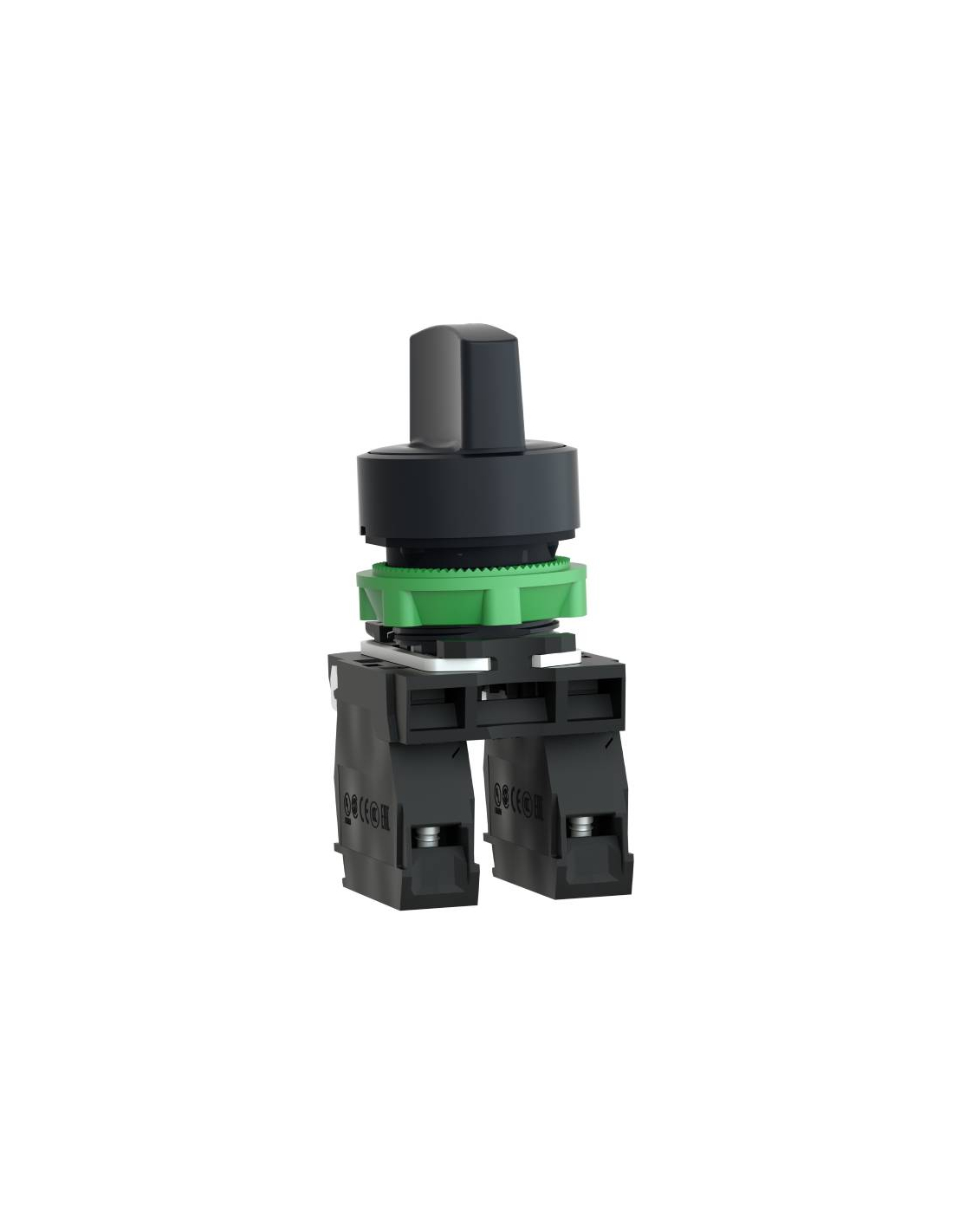

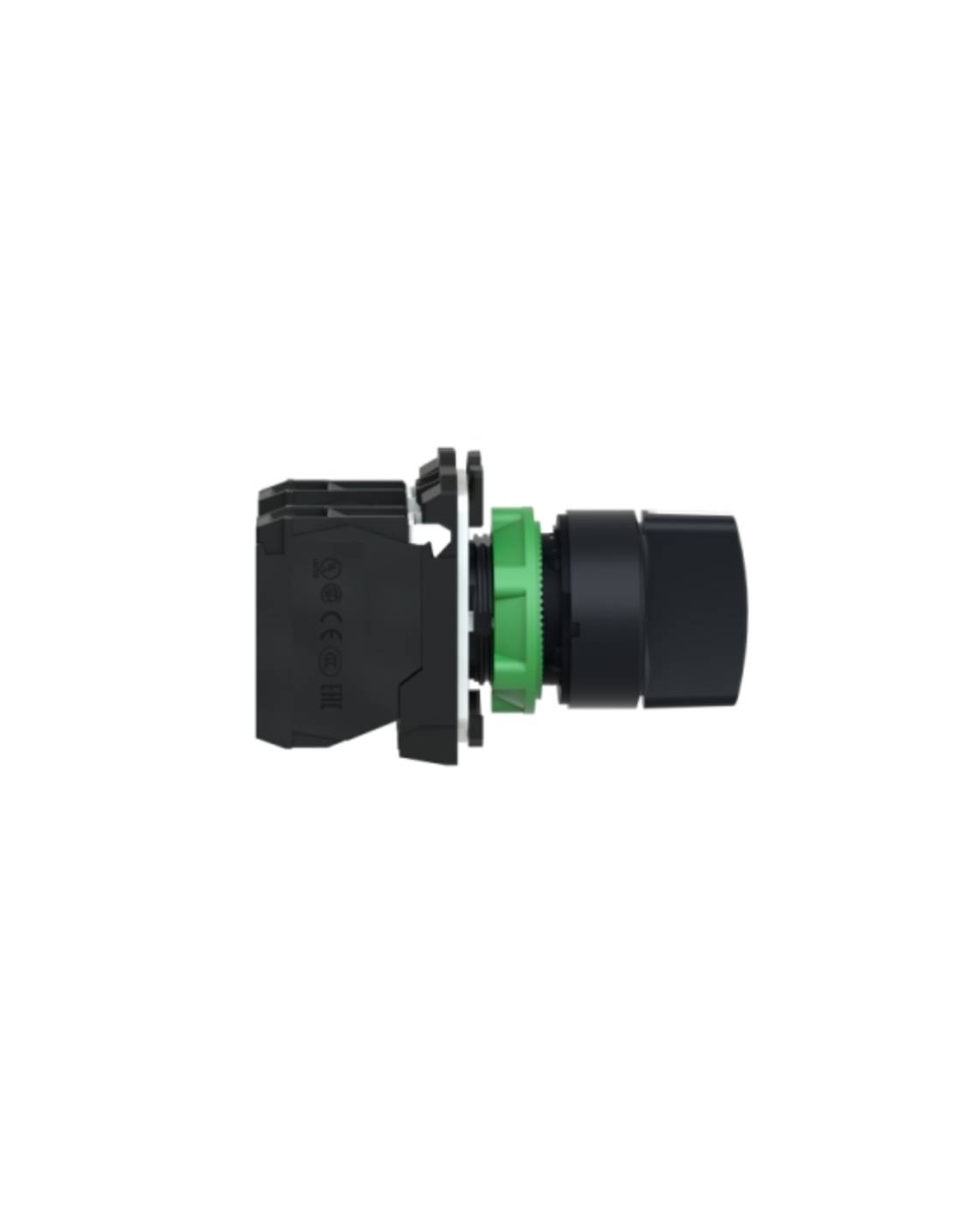

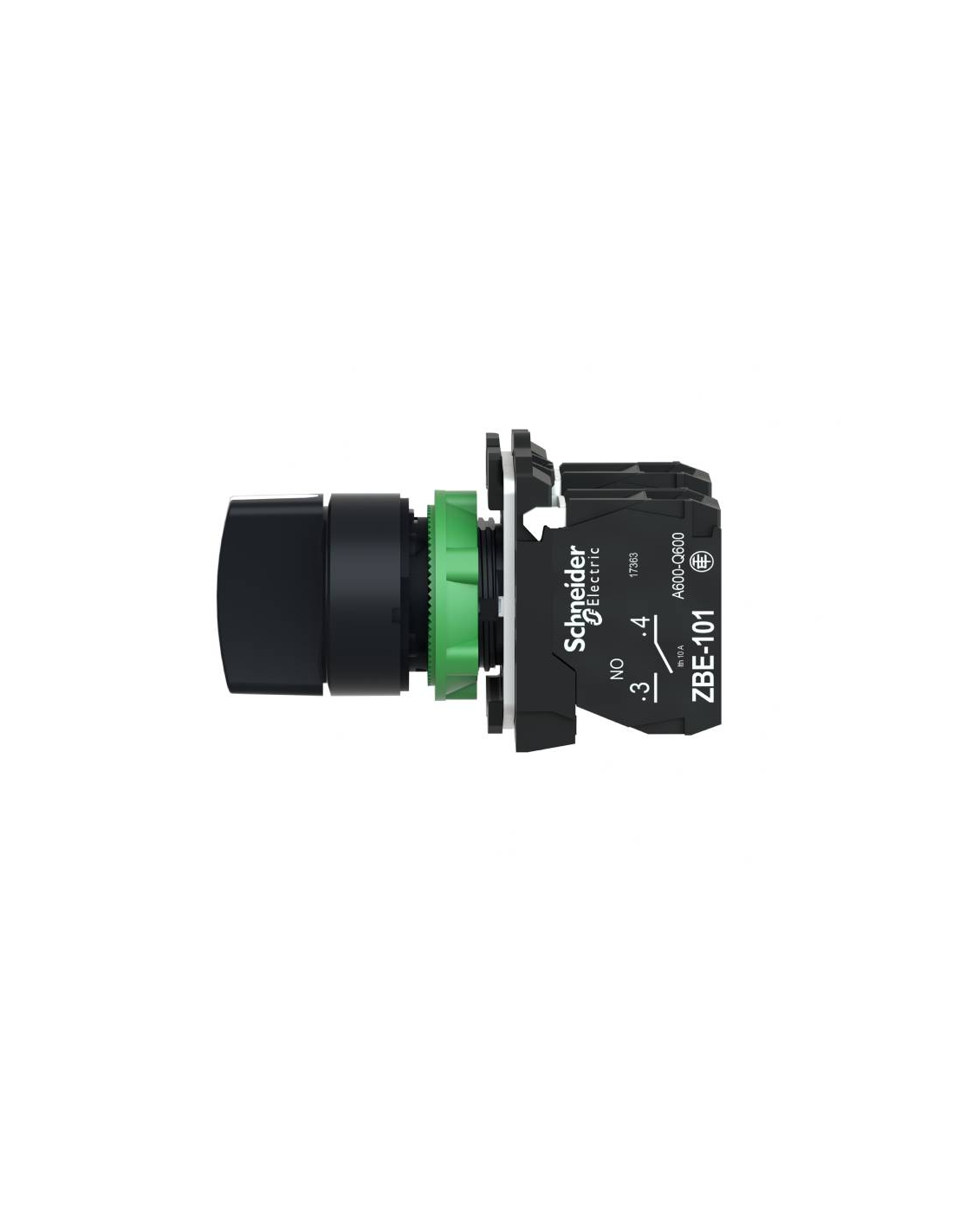

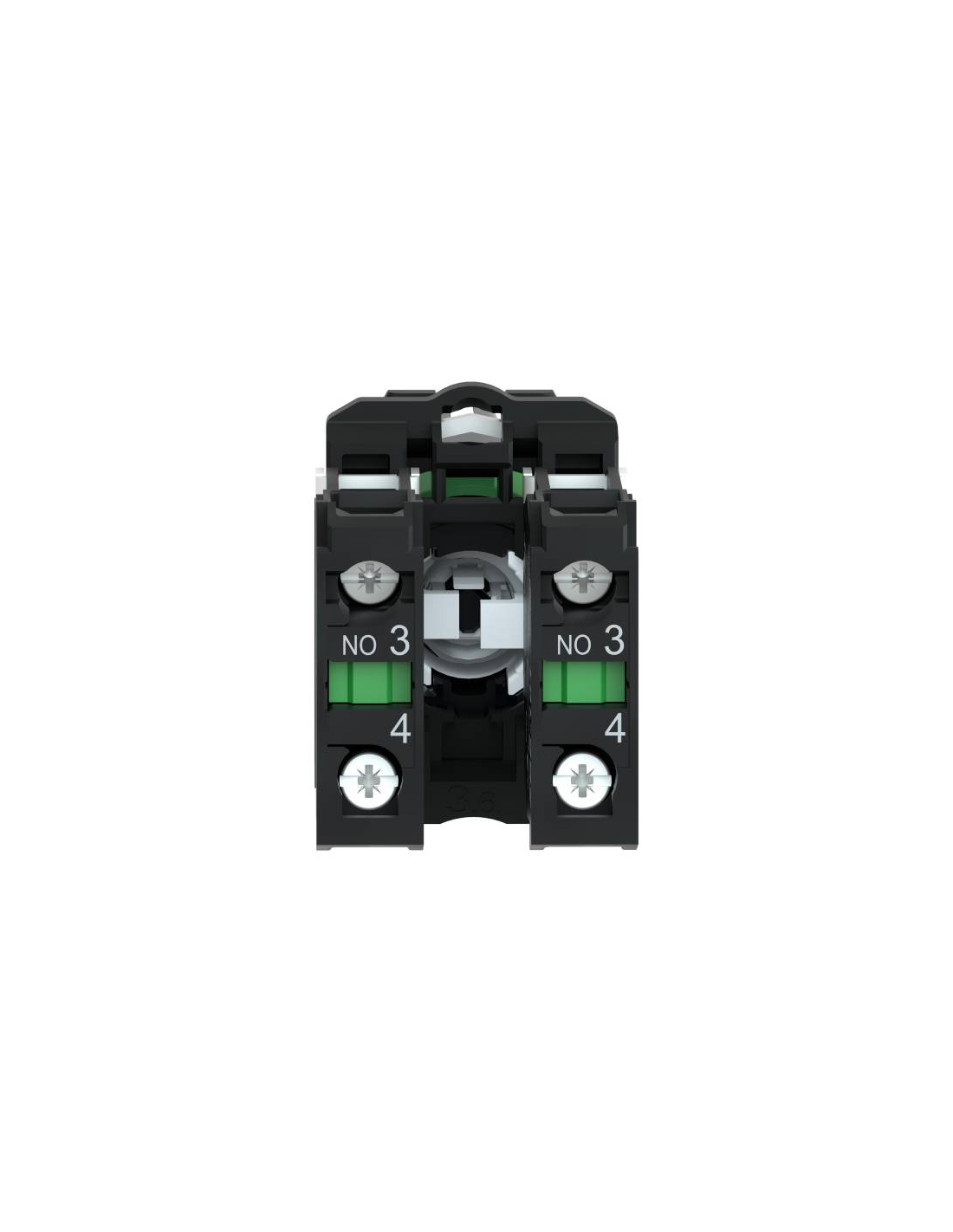

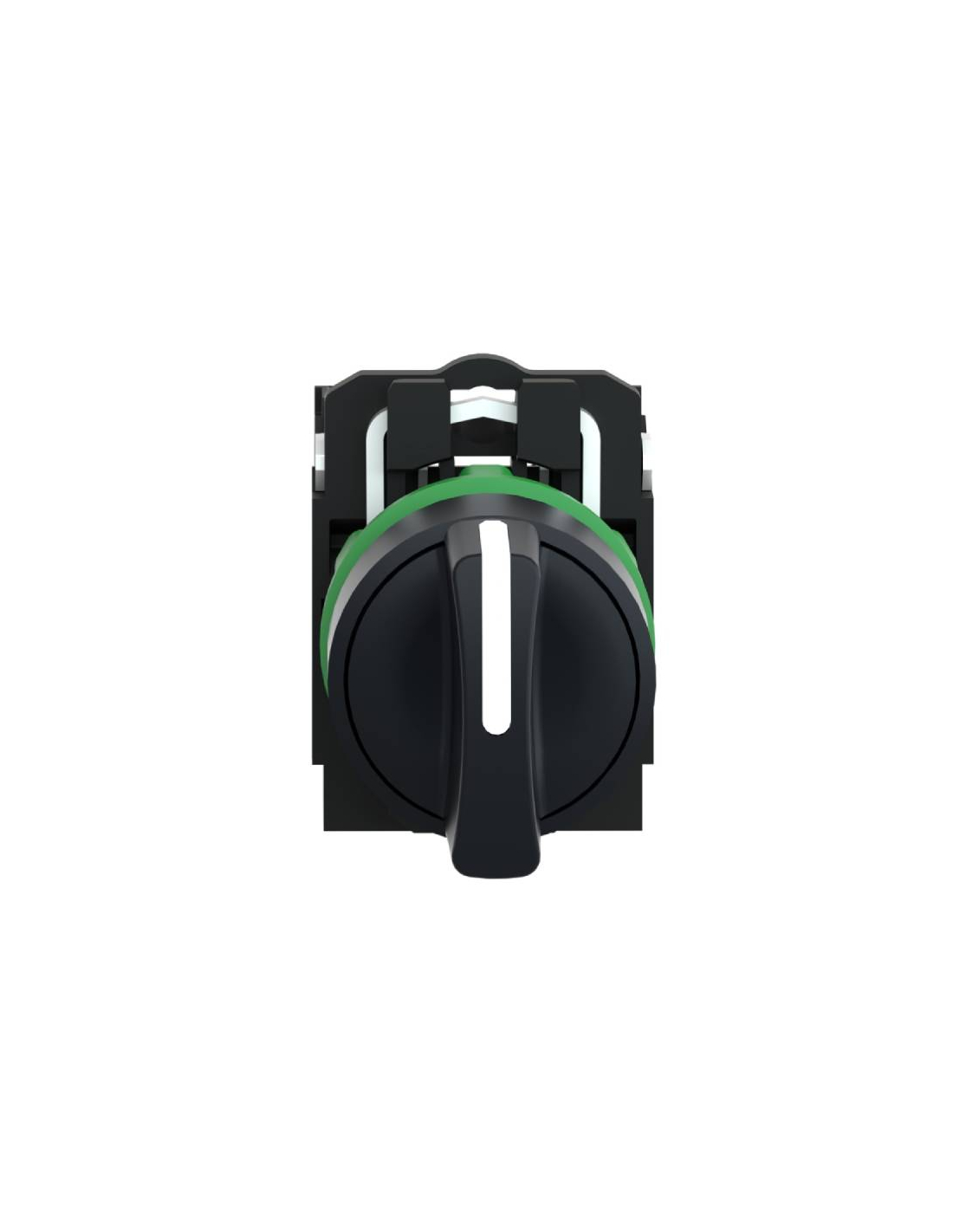

Selector 3 positions 2 open contacts (NO) Harmony XB5 - SCHNEIDER

Plastic selector with short handle, 3 fixed positions and two open contacts (NO), mounting diameter 22.5 mm. Operation based on a fixed position mechanism, allows efficient configuration of machines in various operating modes. It is easily installed in standard 22 mm diameter knockouts and connected via simple screw terminals.

Its design is highly resistant to impact, dust, water and vibration thanks to its IP67 degree of protection, making it suitable for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation.

The complete selector with two open contacts is included in the scope of delivery. Additional contacts can be added.

Features:

• Manufacturer: SCHNEIDER
• Ref. No.: XB5AD33
• HARMONY XB5 SERIES
• Operator profile: Black with standard handle
• Operator type: 3 fixed positions of +/- 45°
• Contact2 NO
• Mounting diameter: 22,5mm
• Short-circuit protection: 10A Cartridge fuse type gG
• Conventional thermal current: 10A
• Rated insulation voltage: 600V
• Surge withstand voltage: 6kV
• Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
• Bezel material: plastic
• Contact material: Ag/Ni
• Electrical durability: 1000000 cycles
• Mechanical durability: 1000000 cycles
• Operating temperature: -40...70C
• IP degree of protection: IP67
• IK protection degree: IK04

e: clamping thickness: 1 to 6 mm

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
