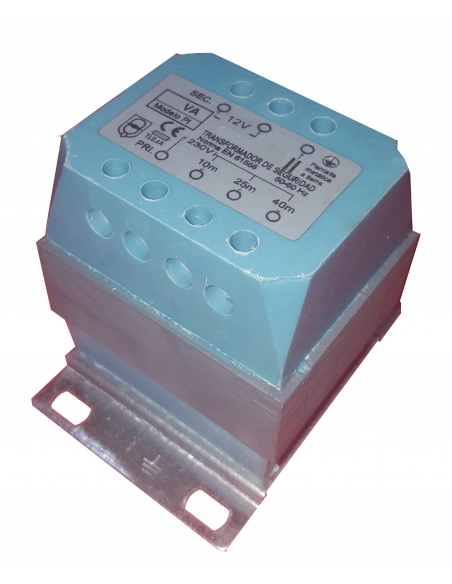

Transformer specially designed for power supply of spotlights in swimming pools, fountains, gardens and humid places, with resin encapsulation. Provided with several sockets in the primary to be connected according to the distance between the spotlight and the transformer.
It has several sockets in the primary to be able to compensate for voltage drops that occur in the power supply line between the spotlight and the transformer in order to achieve adequate illumination of each spotlight.
Technical characteristics:
- Series: PI.
- Reference: PI130
- Input voltage: 230Vac.
- Output voltage: 12Vac.
- Power: 130VA.
- Windings: Thermal class N 200ºC.
- Insulation: Thermal class B 130ºC.
- Electrostatic screen between windings.
- Frequency: 50/60 Hz.
- Protection: IP-20.
- Protection: Class II.
- Test voltage
- 4,5KV between windings.
- 3.2KV between primary and ground.
- 2,5KV between secondary and ground.
- Ambient temperature: Ta=25ºC.
- Enclosure: resin.
- Certificate: UNE-EN 61558.
Recommended cable sections depending on the distance for 300VA power transformers:
- Distance ≤ 10m, line section 2.5mm².
- Distance between 10m and 25m, line section 4mm².
- Distance between 25m and 40m, line section 6mm².
The transformer is supplied without any type of overload protection, it is mandatory to install them in order to avoid overloading the transformer.
The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.
