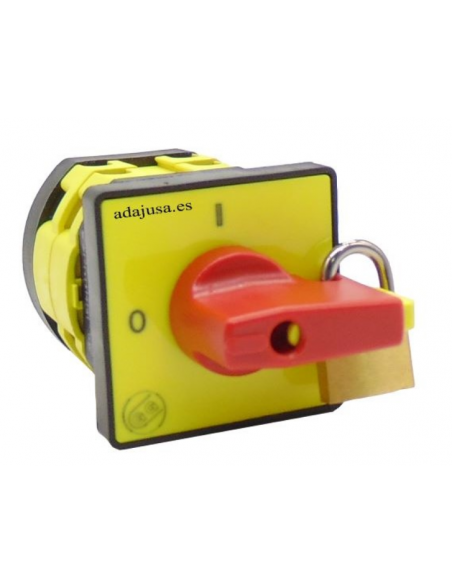

Cam switch 4-pole 40a 48x48mm red lever lock - Giovenzana

Four-pole cam switch, 4 poles, 40A for inductive loads (electric motors) and general control. 90º rotary knob, with two positions 0-1. Yellow plate and red handle, possibility of padlocking.

This series of rotary switches have been made in accordance with the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Panel mounting (rear panel), IP-20 protection degree on terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

The supply includes:

• Three-phase switch: C0400004R
• Faceplate: 004/0001

The supply does not include a padlock

Characteristic:

• Brand: Giovenzana
• Switch reference: C0400004R
• Front reference: 004/0001
• number of poles: 4
• Rated voltage Ue: 690V.
• Rated current Ie (AC21A): 40A.
• Rated breaking capacity: 10kA.
• Number of maneuvers / hours: 120.
• Mechanical durability: 1,000,000 operations.
• Flush mount.
• Degree of protection:
• Type 1-4-4X controls: IP-65.
• Controls with only handle: IP-40.
• Terminals: IP-20.
• Standards: CE; IEC60947; IEC60204; UL508 CSA 22.2 No.14

Table of intensities and powers of use:

• Use category AC-21A: 40A.
• Use category AC-22A: 40A.
• Use category AC-23A:
• Standard single-phase 230Vac motors: 35A - 6.5kW.
• Standard 230Vac three-phase motors: 35A - 11kW.
• Standard three-phase 400Vac motors: 32A - 18.5kW.
• Use category AC-3:
• Standard single-phase 230Vac motors: 30A - 5.5kW.
• Standard 230Vac three-phase motors: 27A - 9kW.
• Standard three-phase 400VAc motors: 27A - 15kW.
• Use category DC-21A (direct current):
• Small overload 50V (1 phase): 32A.
• Use category DC-22A (direct current):
• Mixed load 30V (1 phase): 25A.
