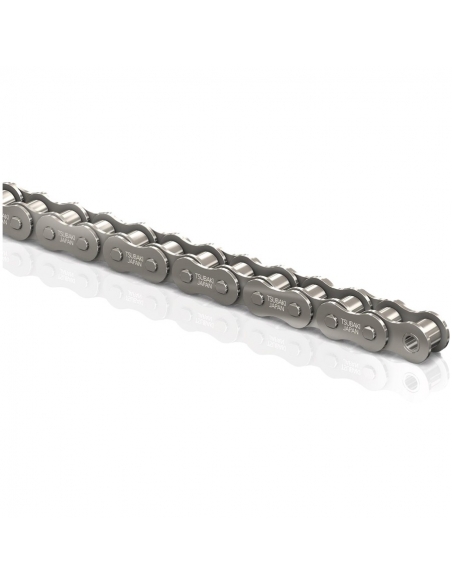

Single stainless steel roller chain step 19.05 3/4 12BSS-1 DIN 8187 - Tsubaki

Roller chain in stainless steel, in accordance with the requirements of ISO DIN 8187. Made in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted mechanical stress.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....

All the basic components of this chain are made of SUS304 stainless steel (except the presillas, which are made of SUS301).

These chains can be used in special environments, such as underwater and in acydic and alkaline applications. They can also be used in low and high temperatures (-20 °C to +400 °C). The SUS304 is only slightly magnetic, which is the result of the cold setting process.


Characteristics:

• Manufacturer: Tsubaki
• Reference: CADE-RS 12B-1-SS:TSU
• Stainless steel
• Sale by packaging of 5 meters of chain.
• Pitch (P): 19.05 mm
• Roller diameter (d₁): 12.07 mm (max)
• Internal width (b₁): 11.68 mm (min)
• Shaft diameter (d₂): 5.72 mm (max)
• Length of the union
  • (L): 22.50 mm (max)
  • (Lc): 25.10 mm (max)
• Mesh height (h₂): 16.13 mm
• Mesh thickness: (t/T): 1.85 mm
• Minimum breaking load (Q ISO/DIN) 28.90/29.00 kN
• Average breaking load (Q₀): 33.30 kN
• Approximate weight: 1.15 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
