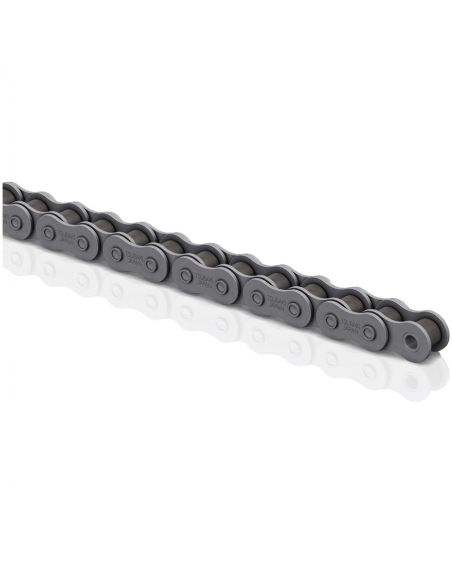

Double step roller chain 50.80 2 32B-2 DIN 8187 - Tsubaki

€3,216.04 Tax included

2614.67 tax excl.

CADE-RS32B2

Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces.

Reference: CADE-RS 32B-2:TSU

Pitch: 50.80 mm - 2"

Roller diameter: 29.21 mm



Price per meter. Sale exclusively by packaging of multiples of 5 meters.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Roller chain according to the requirements of ISO DIN 8187 manufactured in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted mechanical stress.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....

Features:
  • Manufacturer: Tsubaki
  • Reference: CADE-RS 32B-2:TSU
  • Sale by packaging of 5 meters of chain.
  • Pitch (P): 50.80 mm
  • Roller diameter (d1): 29.21 mm (max)
  • Internal width (b1): 30.99 mm (min)
  • Shaft diameter (d2): 17.81 mm (max)
  • Junction length (L): 73.30 mm (max)
  • Mesh height (h2): 42.20 mm
  • Width between axles (T/t): 7.00/6.30 mm
  • Cross-pitch: (Pt): 58.55 mm
  • Minimum breaking load (Q ISO/DIN) 450.0 kN
  • Average breaking load (Q0): 485.0 kN
  • Approximate weight: 20.10 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Double step roller chain DIN 8187 - ADAJUSA
Roller chains European standard ISO DIN 8187

Double step roller chain 50.8 2 32B-2 DIN 8187

ISB-Cadenas
CAD32B-2
Starting from €321.60 (€261.46 tax excl.)
Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250135 Pitch: 50.80 mm - 2" Roller diameter: 29.21 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters.  Representative image for...
View

16 other products in the same category:

Triple roller chain DIN 8187 - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple step roller chain 31.75 1 1/4 20B-3 DIN 8187

ISB-Cadenas
CAD20B-3
Starting from €141.25 (€114.84 tax excl.)
Chain of triple standard rollers according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250200 Pitch: 31.75 mm - 1 1/4" Roller diameter: 19.05 mmPrice per meter. Sale exclusively by packaging of 5 meters.  Representative image for...
View

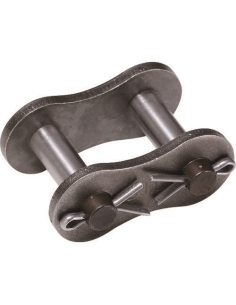

Union roller chain simple 05B-1 ISO - Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Union roller chain simple 05B-1 ISO - Tsubaki

Tsubaki
UNIO-RS 05B-1-TSU
Starting from €4.01 (€3.26 tax excl.)
Link from union for roller chain type 05B simple, according to norm ISO 606, supplied with elastic clip (clamp spring/clip) for fast and secure mounting. Manufactured by Tsubaki. Price per unit. Sold only in packs of multiples of 5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
View

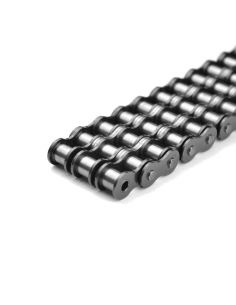

Triple step roller chain 15.875 5/8 10B-3 DIN 8187 ISB- ADAJUSA
