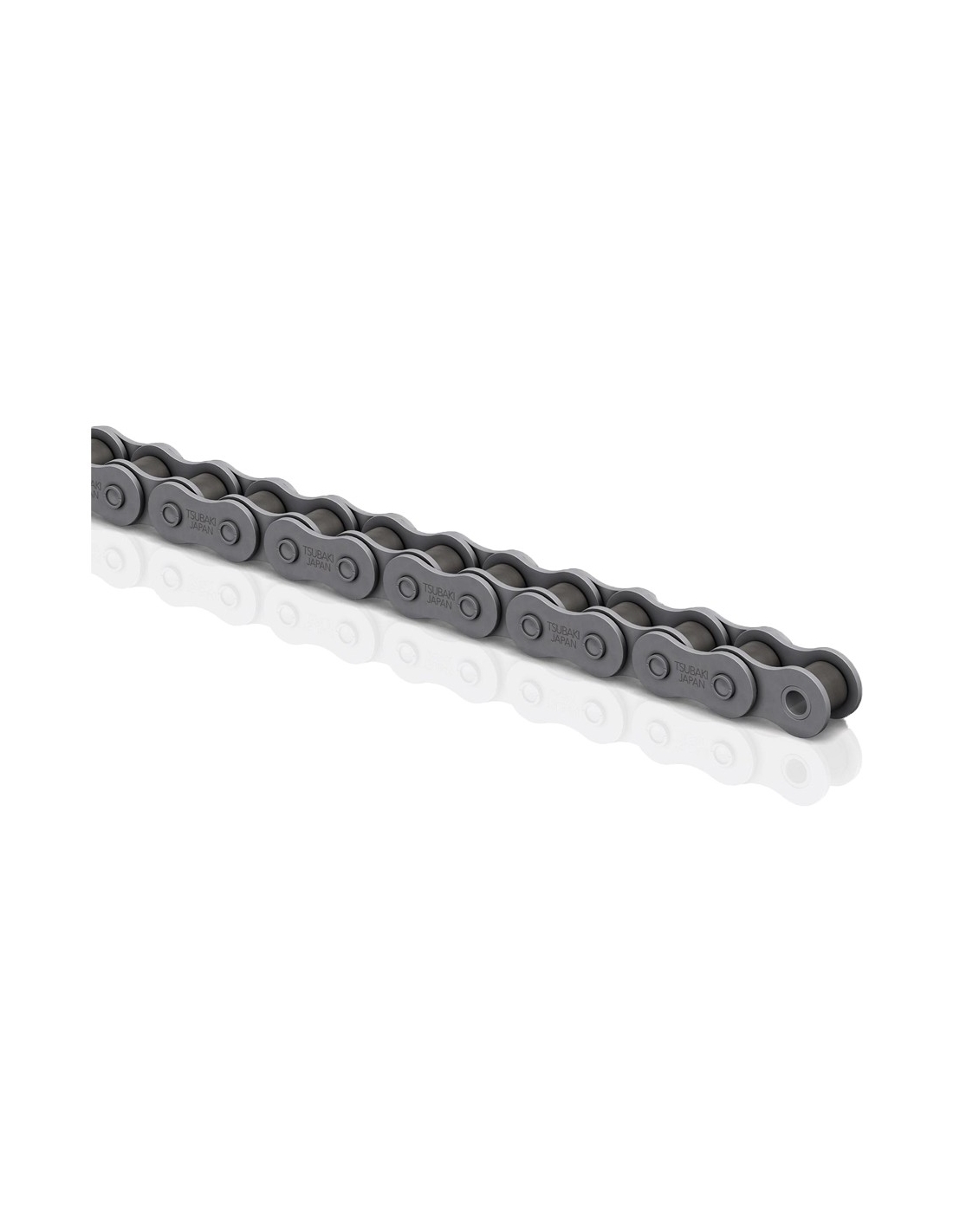

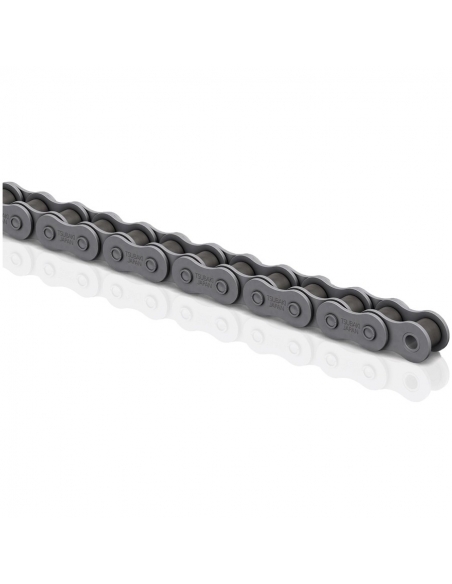

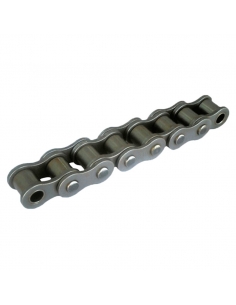

Single step roller chain 15.875 5/8 10B-1 DIN 8187 - Tsubaki

€189.85 Tax included

154.35 tax excl.

CADE-RS10B1

Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces.

Reference: CADE-RS 10B-1

Pitch: 15.875- 5/8"

Roller diameter: 10.16 mm



Price per meter. Sale exclusively by packaging of multiples of 5 meters.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Roller chain according to the requirements of ISO DIN 8187. Made in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted voltage.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....


Features:
  • Manufacturer: Tsubaki
  • Reference: CADE-RS 10B-1:TSU
  • Exclusive sale for packaging of 5 meters of chain.
  • Pitch (P): 15.875mm
  • Roller diameter (d1): 10.16 mm (max)
  • Internal width (b1): 9.65 mm (min)
  • Shaft diameter (d2): 5.08 mm (max)
  • Length of the union
    • (L): 19.50 mm (max)
    • (Lc): 22.00 mm (max)
  • Mesh height (h2): 14.73 mm
  • Mesh thickness: (t/T): 1.70 mm
  • Minimum breaking load (Q ISO/DIN) 22.20/22.40 kN
  • Average breaking load (Q0): 27.5 kN
  • Approximate weight: 0.93 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Simple roller chain ISO DIN 8187 ISB - ADAJUSA
Roller chains European standard ISO DIN 8187

Single step roller chain 15,875 5/8 10B-1 DIN 8187

ISB-Cadenas
CAD10B-1
Starting from €10.01 (€8.14 tax excl.)
Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250025  Pitch: 15.875- 5/8" Roller diameter: 5.08 mm Price per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image for...
View

16 other products in the same category:

Iso DIN 8187 single roller chain ISB - ADAJUSA
Roller chains European standard ISO DIN 8187

Single pitch roller chain 38.10 1 24B-1 DIN 8187

ISB-Cadenas
CAD24B-1
Starting from €77.27 (€62.82 tax excl.)
Standard single roller chain according to European standard ISO DIN 8187, up to 98% efficiency (*), very light and compact which allows installation in very limited spaces. Part number: 57250045 Pitch: 38.10 mm - 1" Roller diameter: 25.40 mmPrice per meter. Sold exclusively in packs of multiples of 5 meters Representative image for illustrative...
View
Triple step roller chain 5/8 10B-3 DIN 8187 - Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple pitch roller Chain 15.875 5/8 10B-3 DIN 8187 - Tsubaki

Tsubaki
CADE-RS10B-3
€125.39 (€101.94 tax excl.)
Standard triple roller Chain according to norm ISO DIN 8187, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces. Reference: CADE-RS 10B-3:TSU Pitch: 15.875- 5/8" Roller diameter: 10.16 mm Price per meter. Sold exclusively by packaging of 1 meter. Representative image for illustrative purposes, the...
View
Double step roller chain 25.40 1" 16B-2 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Double step roller chain 31.75 1 1/4 20B-2 DIN 8187 - Tsubaki

Tsubaki
CADE-RS20B2
Starting from €1,362.18 (€223.26 tax excl.)
Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 20B-2:TSU Pitch: 31.75 mm - 1" 1/4 Roller diameter: 19.05 mm Price per meter. Sale exclusively by packaging of multiples of 5 meters. Representative...
View
Union triple roller chain 10B-3 ISO - Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

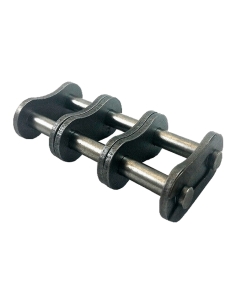

Union triple roller chain 10B-3 ISO - Tsubaki

Tsubaki
UNIO-RS 10B-3-TSU
Starting from €13.05 (€10.61 tax excl.)
Link from union for roller chain type 10B triple, according to norm ISO 606, supplied with elastic clip (clamp spring/clip) for fast and secure mounting. Manufactured by Tsubaki. Price per unit. Sold only in packs of multiples of 5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
View
Iso DIN 8187 single roller chain ISB - ADAJUSA
Roller chains European standard ISO DIN 8187

Single pitch roller chain 44.45 1 28B-1 DIN 8187

ISB-Cadenas
CAD28B-1
Starting from €122.62 (€99.69 tax excl.)
Standard single roller chain according to European standard ISO DIN 8187, up to 98% efficiency (*), very light and compact which allows installation in very limited spaces. Part number: 57250050 Pitch: 44.45 mm - 1" Roller diameter: 27.94 mmPrice per meter. Sold exclusively in packs of multiples of 5 meters Representative image for illustrative...
View
Triple step roller chain 25.40 1 16B-3 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple pitch roller Chain 25.40 1 16B-3 DIN 8187 - Tsubaki

Tsubaki
CADERS16B3
€283.91 (€230.82 tax excl.)
Standard triple roller Chain according to norm ISO DIN 8187, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces. Reference: CADE-RS 16B-3:TSU Pitch: 25.40 mm - 1" Roller diameter: 15.88 mm Price per meter. Sold exclusively in 1 meter packaging. Representative image for illustrative purposes, the...
View

Customers who bought this product also bought:

Endless crown reducer size. 30 63B14
Endless crown reducers

Endless crown reducer Size 63 Flange PAM 200/24 - Motor housing 90 B5

Generico-MOT
9R063xxx90B5
€141.59 (€115.11 tax excl.)
With hollow output shaft of Ø25mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90. Reduction ratios: 10-15-20-25-30. The powers of the usual engines at 1500 rpm are: 1.5CV Max. net. i=30. 2CV Max. net. i=20. Representative image for illustrative purposes, the item...
Jagged discs or simple serrated chains - ADAJUSA
Toothed discs or toothed crowns ISO DIN 606 - DIN 8187 - ASA DIN 8188

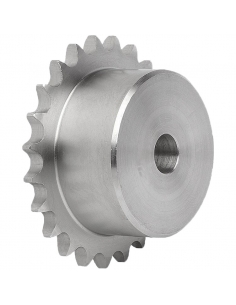

Single discs or ring gears Z13 5/8 x 3/8 10B-1 ISO DIN 606

Generico-TE
DISCOZ1358381
€4.17 (€3.39 tax excl.)
Discos dentados o cadenas dentadas simples Z13 para cadena de rodillos 5/8" x 3/8" 10B-1 según norma Europea DIN ISO 606 Referencia: DISCO Z13 5/8 Dientes: 13 ISO: 10B-1 (5/8" - 3/8") Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

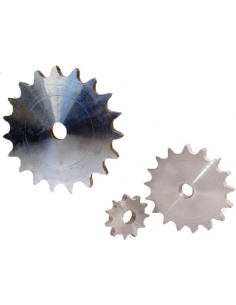

Jagged discs or simple serrated chains - ADAJUSA
