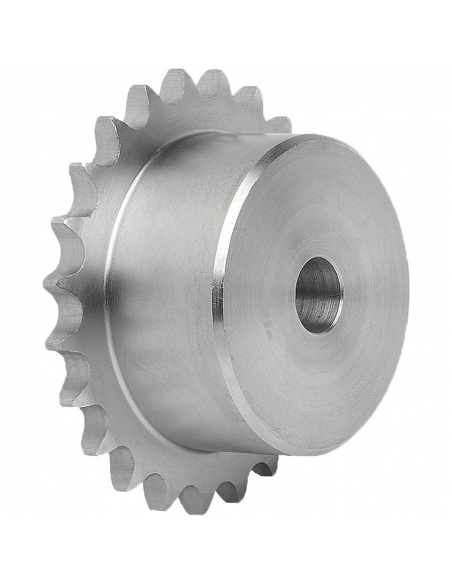

Roller chain sprockets 1 x 17.02 16B-1 Z21 DIN8187 - ISO R606

€84.05 Tax included

€69.46 tax excl.

Single pinion for single roller chain model 16B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z21 1

Teeth: 21

ISO: 16B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Simple sprockets for single roller chains 16B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z21 1


Characteristics:

  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17x02 mm
  • Teeth: 21
  • Roller diameter: 25.4 mm
  • Inner width: 17.02 mm
  • Roller diameter: 15.88 mm
  • Tooth radius (r): 26 mm
  • Curved area width (C): 2.5 mm
  • Tooth width (h1): 16.2 mm
  • Outer Diameter (S): 181.2
  • Primitive diameter (Dp): 170.43
  • Center diameter (d): 110
  • Hub diameter (D): 20 (Non-mechanical shaft diameter)
  • Width (H): 50


Material for professional use, install in compliance with the regulations in force at the place of installation.
