Roller chain sprockets 1/2 x 5/16 08B-1 Z12 DIN8187 - ISO R606

€5.02 Tax included

4.08 tax excl.

P1251608B1Z12

Single pinion for single roller chain model 08B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z12 1/28

Teeth: 12

ISO: 08B-1

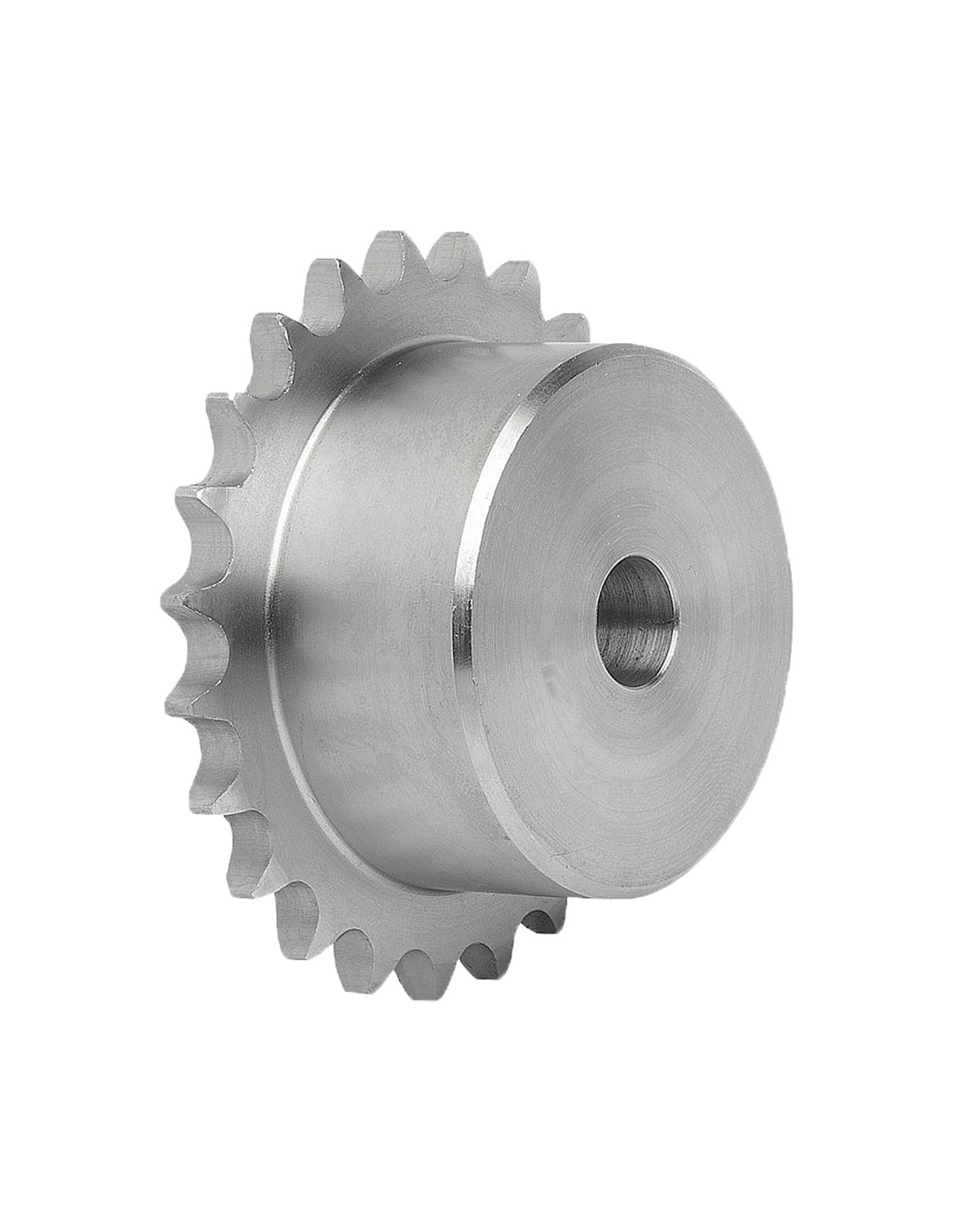

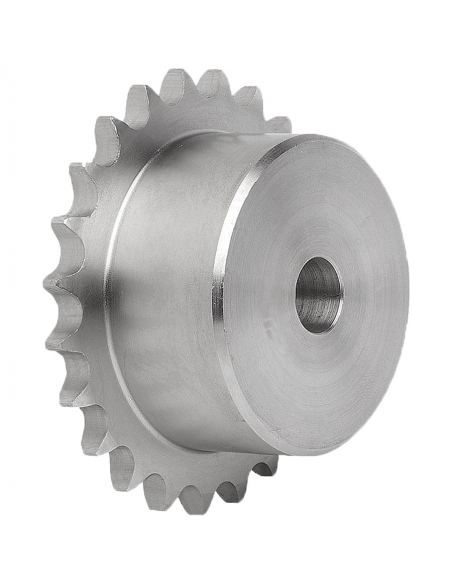

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Simple sprockets for single roller chains 08B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z12 1/28


Characteristics:

  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 12
  • Roller diameter: 8.51 mm
  • Tooth radius (r): 13 mm
  • Curved area width (C): 1.3 mm
  • Tooth width (h1): 7.2 mm
  • Outer Diameter (S): 53.0
  • Primitive diameter (Dp): 49.07
  • Center diameter (d): 33
  • Hub diameter (D): 10 (Non-mechanical shaft diameter)
  • Width (H): 25


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buonasera, sono un costruttore di macchine agricole,mi occorrono dei pignoni con queste caratteristiche:
- Pignone 1/2x3/16 Z12 con foro quadro 16x16
- Pignone 083-1 12 con foro tondo da 15
-Pignone 083 18 con foro quadro 16x16
Pignone 083 Z15 B3 con foro da 25 con sede chiavetta
Answer
Gentile Cliente,

Non abbiamo ruote dentate con assi quadrati in vendita.

L'unica cosa che abbiamo, con un albero cieco per la lavorazione.

E non abbiamo nemmeno i pignoni per la catena 083.

Ti auguro il meglio
ADAJUSA
Michele on 11/14/2024 20:51:04
