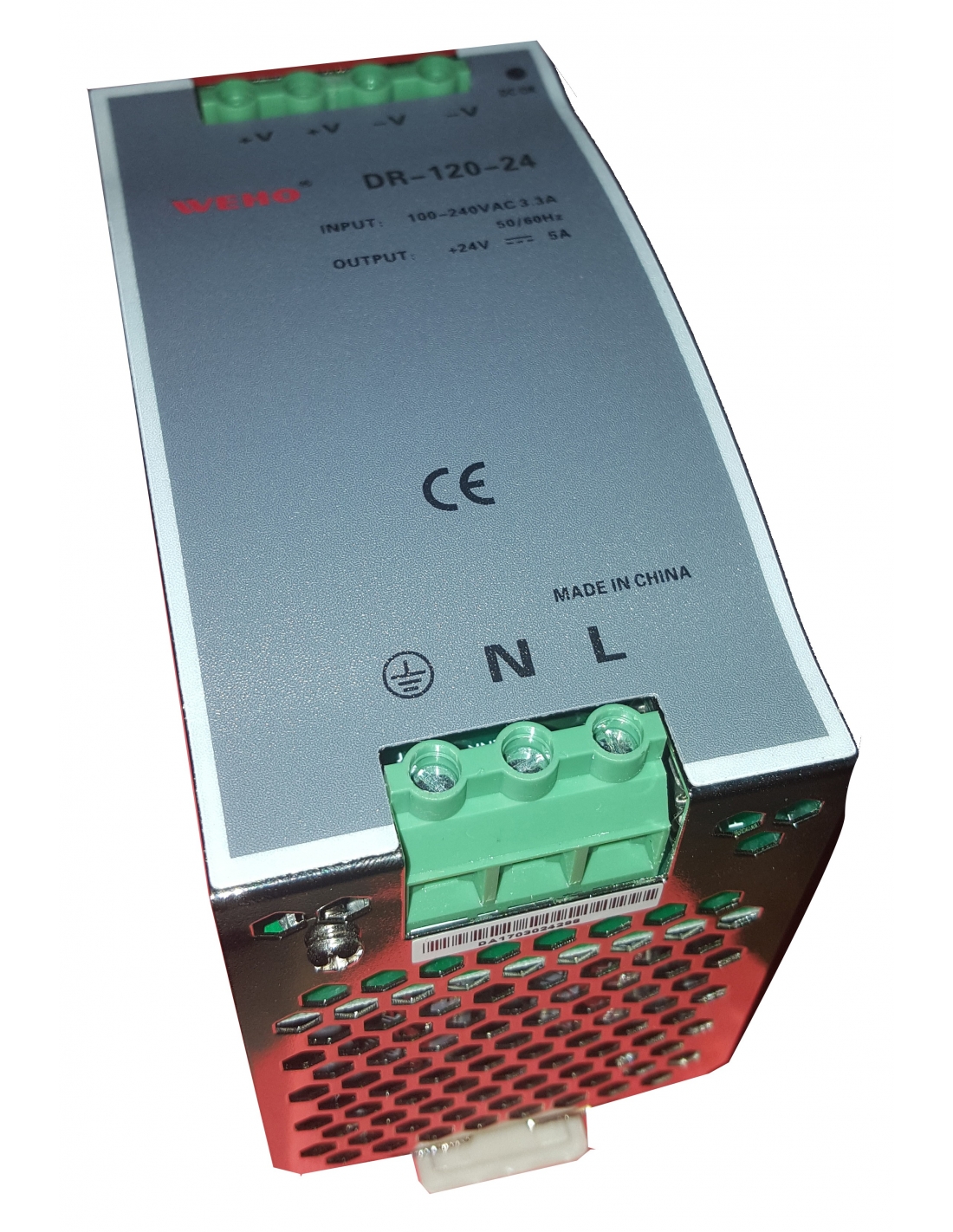

Power supply 24Vdc 5A 120W DIN rail

€29.82 Tax included €39.75 -25%

€24.24 tax excl.

DR120 24Vcc

Stabilized industrial Power supply , single output 24Vdc, 5A., switching type, 120W power. Supply voltage 100 to 240Vac., protected against overloads and short circuits.

Metal Box for industrial use, DIN rail mounting. High performance and reliability required for industrial use.

Reference: DR120 24Vdc

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

1 question about the product

Privacy

Shipments

Returns

Stabilized industrial Power supply with single output of 24Vdc, nominal current 5A, and 120W of power. Supply voltage 100..240Vac.

The power supply is mounted in a very robust metal box for industrial use, for mounting on the back panel using screws. High performance and reliability required for industrial use.

With a high overload capacity and short-circuit protection at the output. Automatic reset against overloads and short-circuits.

Cooling by electronically controlled fan, only activated when necessary due to excess temperature.

Technical characteristics:

Manufacturer/Supplier: Denor
Reference: DR120 24Vdc
Operating mode: switched.
Mounting: On DIN rail.
Input voltage: 100..240Vac.
Frequency: 47 .. 63Hz.
Output voltage: 24Vdc. (+/- 1%).
Output voltage adjustment range: 24±10%.
Nominal output current: 5A.
Rated output power: 120W.
Maximum commissioning time: less than 1 sec.
Ripple and noise: Below 80mVpp.
Performance: 84%.
Overload protection range: 105~150%.
Overcurrent, short circuit and temperature limitation: Yes, self-resettable.
Switching frequency: 50Khz.
Working temperature: -10ºC .. 60ºC temperature.
Cooling: convention.
Safety standards: CE, EN60950-1; EN61347; EN61347-2.
Complies with EMC regulations: EN55015; EN55022; EN55024; EN61000-2; EN61000-3; EN61547.
CE ROHS standard.
Dimensions: 65.5x125.2x100mm.
Weight: 0.79Kg.

Dimensions of the DR-120-24 5A 120W 24Vdc power supply

Professional use material, install in compliance with the regulations in force at the place of installation.

Power supplies

Download (712.58KB)

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Question

La intensidad nominal de salida(5A) es lo que consume la fuente? En este caso el magnetotérmico en la entrada de la fuente con uno de 6A C seria suficiente?

Answer

Buenas tardes,

La intensidad que indica es la nominal de salida, la de entrada es mucho menor, salvo el pico inicial de arranque, pero que tampoco es determinante. El magnetotermico que se suele asociar a una fuente de este tipo es solo para protección por cortocircuito, no para sobrecarga en la fuente, se suele instalar del orden de los 2-3A.

Saludos

Joel on 09/07/2018 23:18:42
