Pneumatic tube flexible polyamide PA12 8x10 natural 25m Aignep: ADAJUSA : price

Pneumatic tube in polyamide 10x8mm natural 25m

Name: Pneumatic tube in polyamide 10x8mm natural 25m
Brand: Aignep
SKU: SCPAEHF8X10X25T
Price: 33.62 EUR
Availability: BackOrder

€33.62 Tax included

27.33 tax excl.

SCPAEHF8X10X25T

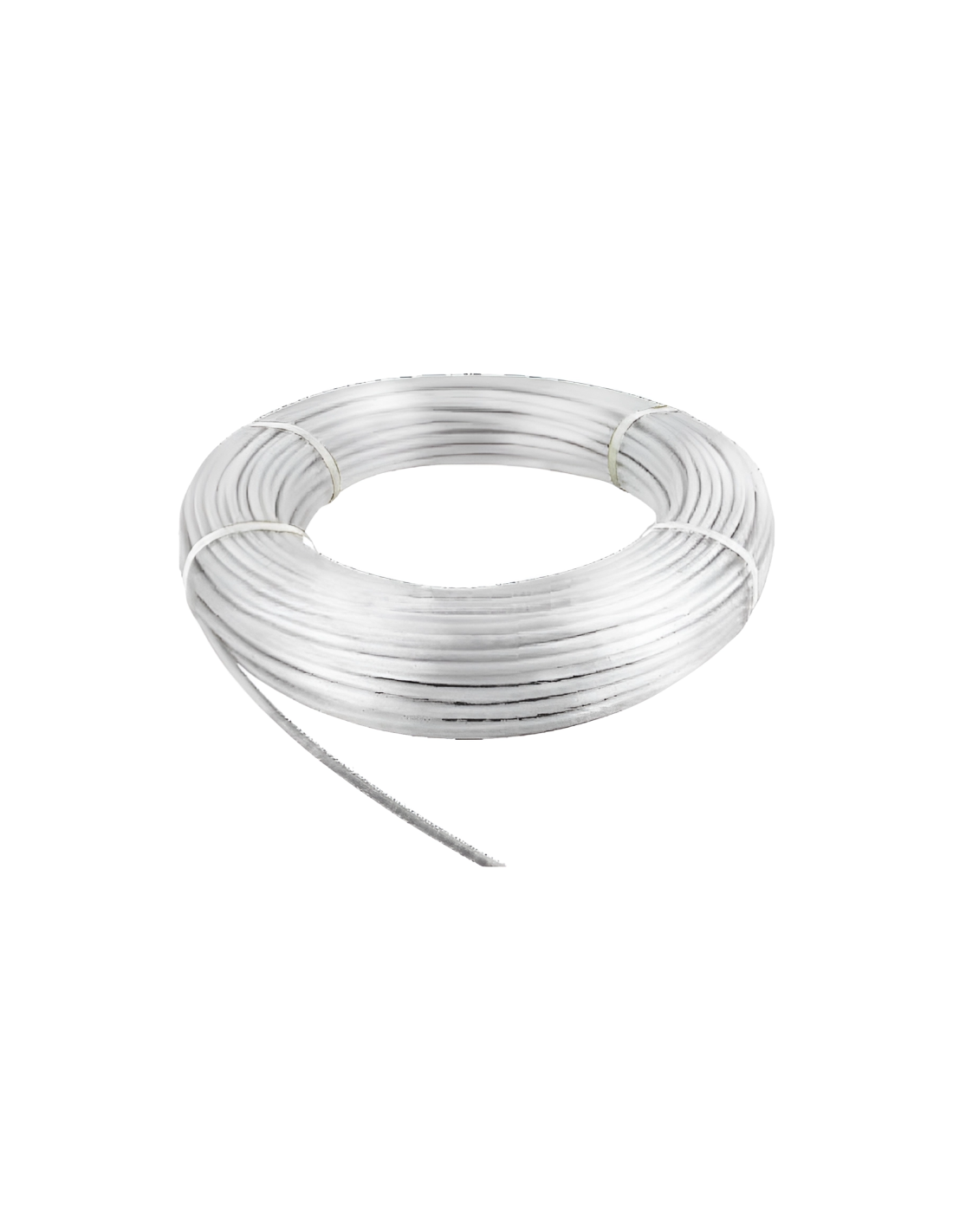

Pneumatic tube made of polyamide, size 10x8mm available in natural transparent color. Linear flexible tube with outer diameter 10mm and inner diameter 8mm. Box of 25 meters.

Tube made of polyamide PA12 ETHER-HF AIR, a product of the LONGLIFE series ideal for applications with pneumatic fittings in industrial installations. High flexibility, elasticity and excellent resistance to aging.

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flexible hose in polyamide PA12 elastomeric PA12 ETHER-HF AIR, product of the LONG LIFE series for pneumatic applications, size 10x8mm. Roll of 100 meters available in natural transparent color.

This type of tubing consists of a triple-layer structure; two outer layers of light and heat stabilized polyamide and an intermediate layer of ether-based polyurethane for chemical bonding without the use of additional adhesives or binders. The outer layers give the tube high resistance to chemical, hydrolysis and microbial attack, while the intermediate layer improves its flexibility and resistance to low temperatures.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, hydrolysis resistance, machine tools, UV resistance, etc.

Characteristics:

Manufacturer: Mebra
Size: 10x8mm
Quantity: 25m
Color: Natural transparent
Outside diameter: 10mm
Inner diameter: 8mm
Thickness: 1mm
Minimum bending radius: 80mm
Temperature: -40ºC to +70ºC
Operating pressure (23ºC): 11bar
Burst pressure safety factor: 3:1
Tolerances
±0.05 on wall thickness
±0.05 on outer Ø, up to Ø 12
±0.10 on outer Ø, from Ø 14
±0.5% on weight

NOTE: The use of a support is recommended to ensure maximum sealing when the application involves vibrations or pressure changes. With fluids other than compressed air or industrial water, the use of fittings or hose supports is recommended.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Tubo poliuretano (PU98)

Polyamide tube (PA12)

Download (947.06KB)
