Pneumatic tube flexible polyamide PA12 4x6 red 100m Aignep: ADAJUSA : price

Pneumatic tube in polyamide 6x4mm red Roll 100m

Name: Pneumatic tube in polyamide 6x4mm red Roll 100m
Brand: Aignep
SKU: PA12EHF4X6R
Price: 62.40 EUR
Availability: BackOrder

€62.40 Tax included

50.73 tax excl.

PA12EHF4X6R

Pneumatic tube made of polyamide, size 6x4mm available in red color. Linear flexible hose with outer diameter 6mm and inner diameter 4mm. Roll of 100 meters.

Tube made of polyamide PA12 ETHER-HF AIR, product of the LONGLIFE series ideal for applications with pneumatic fittings in industrial installations. High flexibility, elasticity and excellent resistance to aging.

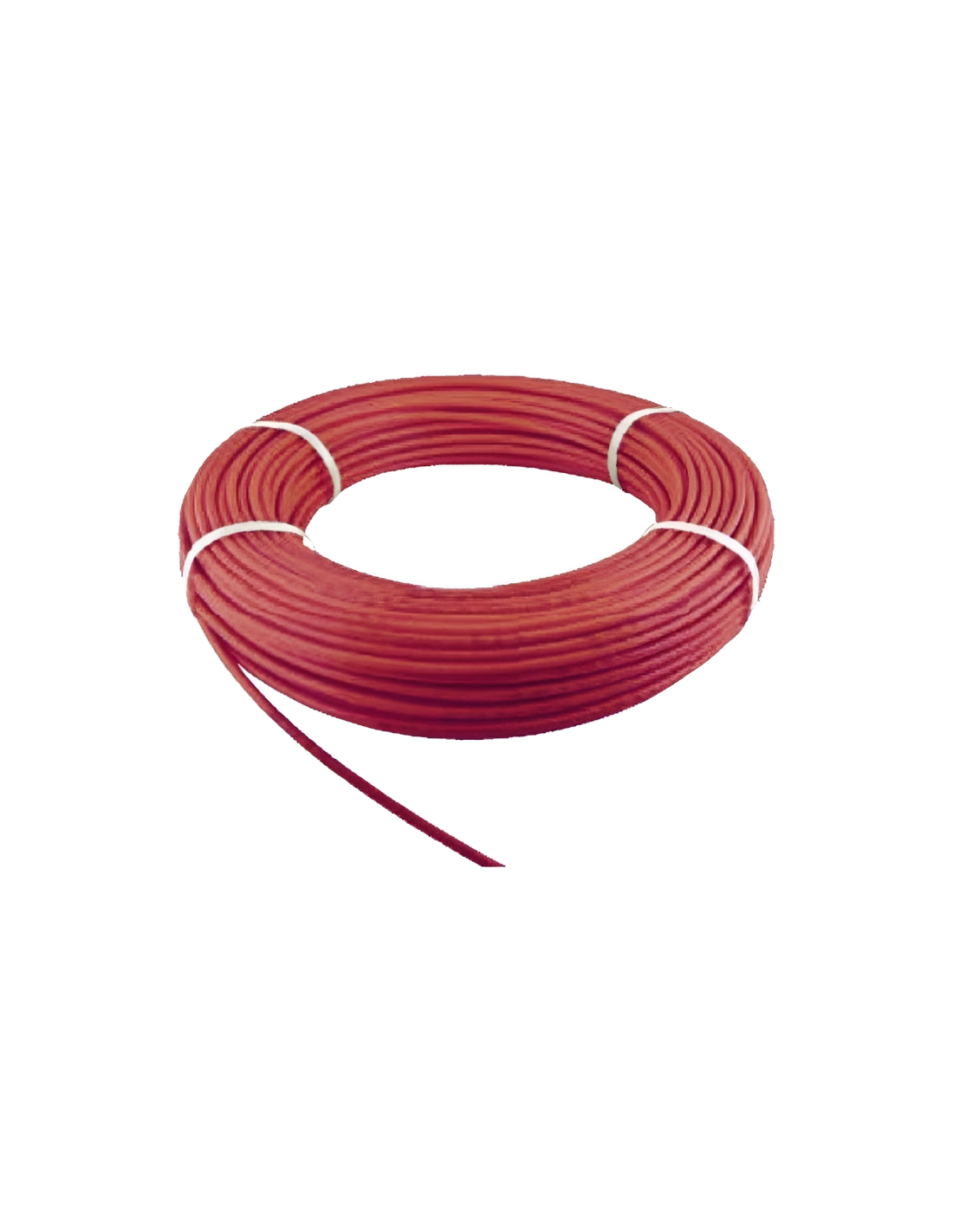

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flexible hose in polyamide PA12 elastomerized PA12 ETHER-HF AIR, product of the LONG LIFE series for pneumatic applications, size 6x4mm. Roll of 100 meters available in red color.

This type of tubing consists of a triple-layer structure; two outer layers of light and heat stabilized polyamide and an intermediate layer of ether-based polyurethane for chemical bonding without the use of additional adhesives or binders. The outer layers give the tube high resistance to chemical, hydrolysis and microbial attack, while the intermediate layer improves its flexibility and resistance to low temperatures.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, hydrolysis resistance, machine tools, UV resistance, etc.

Characteristics:

Manufacturer: Mebra
Size: 6x4mm
Quantity: 100m roll
Color: Red
Outside diameter: 6mm
Inner diameter: 4mm
Thickness: 1mm
Minimum bending radius: 30mm
Temperature: -40ºC to +70ºC
Operating Pressure (23ºC): 21 bar
Burst pressure safety factor: 3:1
Tolerances
±0.05 on wall thickness
±0.05 on outer Ø, up to Ø 12
±0.10 on outer Ø, from Ø 14
±0.5% on weight

NOTE: The use of a support is recommended to ensure maximum sealing when the application involves vibrations or pressure changes. With fluids other than compressed air or industrial water, the use of fittings or hose supports is recommended.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Tubo poliuretano (PU98)

Polyamide tube (PA12)

Download (947.06KB)
