Pneumatic tube flexible polyamide PA12 2,5x4 black 25m Aignep: ADAJUSA : price

Pneumatic tube in polyamide 4x2,5mm black 25m

Name: Pneumatic tube in polyamide 4x2,5mm black 25m
Brand: Aignep
SKU: SCPAEHF2,5X4X25N
Price: 12.28 EUR
Availability: InStock

€12.28 Tax included

9.98 tax excl.

SCPAEHF2,5X4X25N

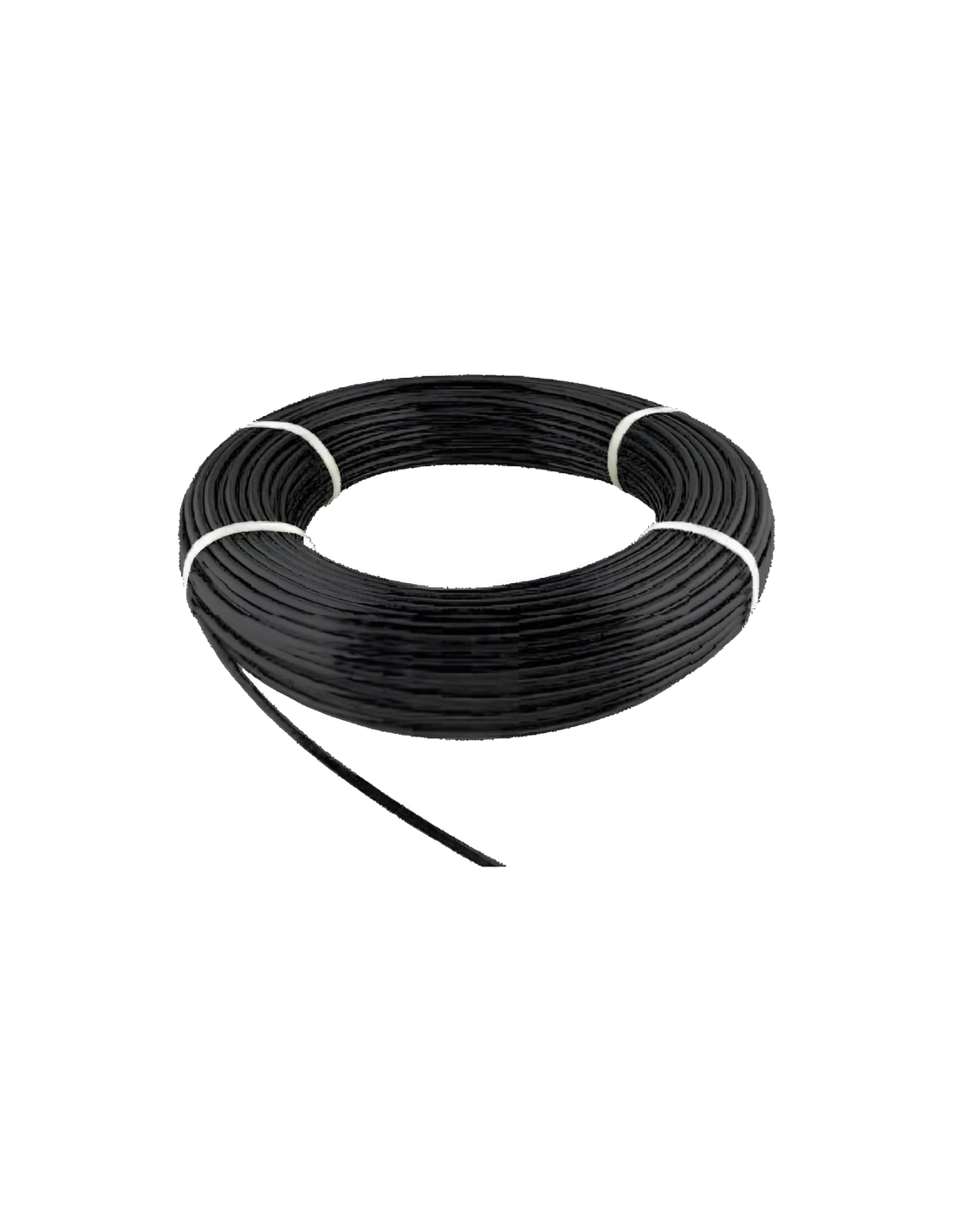

Pneumatic tube made of polyamide, size 4x2,5mm available in black color. Linear flexible tube with outer diameter 4mm and inner diameter 2,5mm. Box of 25 meters.

Tube made of polyamide PA12 ETHER-HF AIR, a product of the LONGLIFE series ideal for applications with pneumatic fittings in industrial installations. High flexibility, elasticity and excellent resistance to aging.

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flexible hose in polyamide PA12 elastomerized PA12 ETHER-HF AIR, product of the LONG LIFE series for pneumatic applications, size 4x2,5mm. Roll of 100 meters available in black color.

This type of tubing consists of a triple layer structure; two outer layers of light and heat stabilized polyamide and an intermediate layer of ether-based polyurethane for chemical bonding without the use of additional adhesives or binders. The outer layers give the tube high resistance to chemical, hydrolysis and microbial attack, while the intermediate layer improves its flexibility and resistance to low temperatures.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, hydrolysis resistance, machine tools, UV resistance, etc.

Characteristics:

Manufacturer: Mebra
Size: 4x2,5mm
Quantity: 25m
Color: Black
Outside diameter: 4mm
Inner diameter: 2,5mm
Thickness: 0,75mm
Minimum bending radius: 15mm
Temperature: -40ºC to +70ºC
Operating Pressure (23ºC): 24bar
Burst pressure safety factor: 3:1
Tolerances
±0.05 on wall thickness
±0.05 on outer Ø, up to Ø 12
±0.10 on outer Ø, from Ø 14
±0.5% on weight

NOTE: The use of a support is recommended to ensure maximum sealing when the application involves vibrations or pressure changes. With fluids other than compressed air or industrial water, the use of fittings or hose supports is recommended.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Tubo poliuretano (PU98)

Polyamide tube (PA12)

Download (947.06KB)
