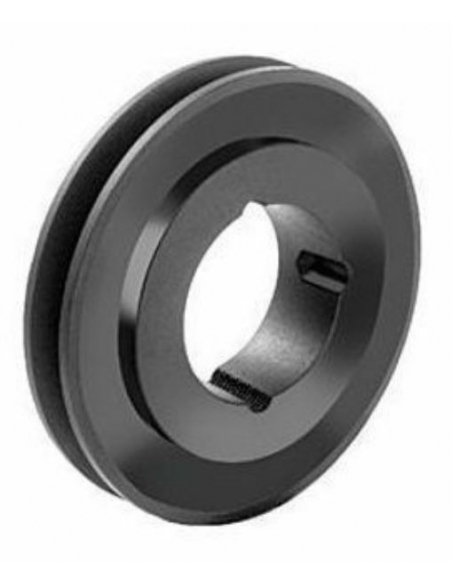

Pulley V-belt SPA 85x1 slot taper T1210

€18.63 Tax included

15.15 tax excl.

PSPA851T1210

Pulley for trapezoidal belts Ø85mm, 1 slot. Machined for conical bushing - taper lock T1210. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-85X1-T1210

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 85 mm.
  • Number of strap slots: 1.
  • Taper: T1210

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

1 question about the product
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 85mm.
  • Number of slots: 1.
  • Type of conical bushing - taper: T1210
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 85
  • (Od): 90.5
  • (F): 20
  • (L): 25
  • (M): 5
  • (N): 75
  • Taper: 1210



Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
EL TAPER CASQUILLO CONICO T1210 QUEDARA BIEN SI SE PONE (CON LA POLEA) EN UN EJE DE MOTOR ELECTRICO QUE NO TIENE HUECO PARA CHAVETA? EL EJE ES DE 12MM DE DIAMETRO , CILINDRICO CON LIGERAS RANURAS
Answer
Estimado cliente,

No es compatible con ejes con ranuras

Un saludo
ADAJUSA
Francisco coca on 09/26/2023 18:55:54
