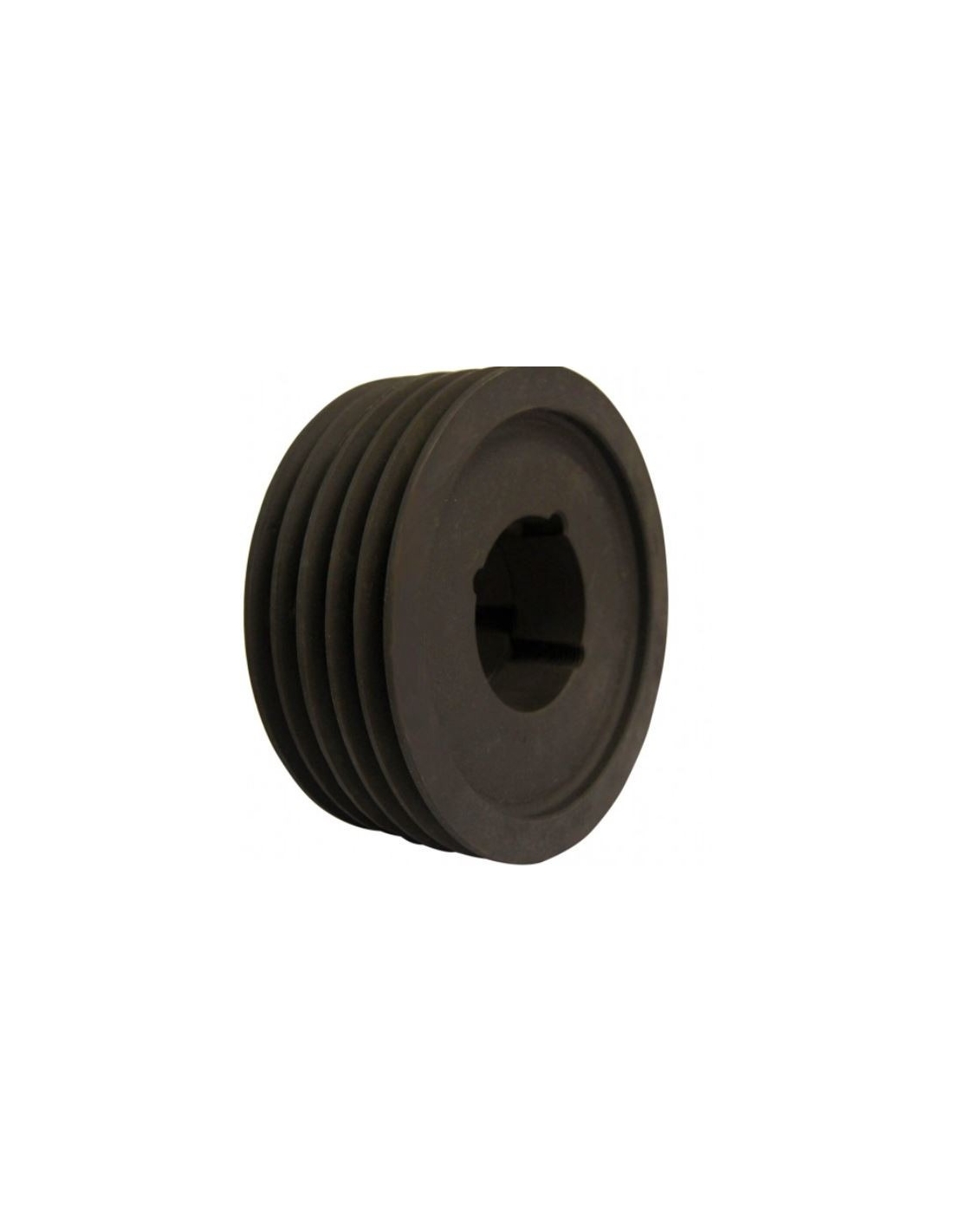

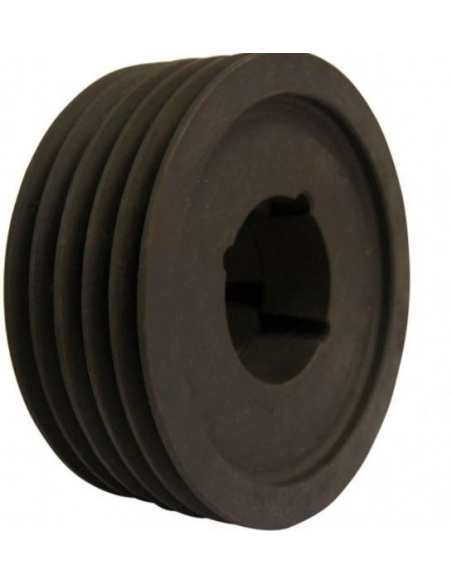

Pulley V-belt SPA 100x5 slots taper T1615

€55.90 Tax included

€46.20 tax excl.

Pulley for trapezoidal belts Ø100mm, 5 slots. Machined for conical bushing - taper lock T1615. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-100X5-T1615

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 100mm.
  • number of strap slots: 5.
  • Taper: T1615.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


V-shaped pulley for trapezoidal belts, for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183 standards.

Machined trapezoidal pulley for "Taper Lock" conical bushing.

Technical characteristics:

  • Type: trapezoidal "V" profile.
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 100mm.
  • Number of slots: 5
  • Tapered bushing type - taper: T1615
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.


Dimensions:

  • (Dp): 100
  • (Od): 105.5
  • (F): 80
  • (J): 66
  • (L): 38
  • (M): 42
  • Taper: 1615



Material for professional use, install in compliance with the regulations in force at the place of installation.
