1/4 3-way bi-stable pneumatic distributor valve Metal Work | Price adajusa.com.com.'

Pneumatic valve 1/4 3 ways bistable - Metal Work

Name: Pneumatic valve 1/4 3 ways bistable - Metal Work
Brand: Metal Work
SKU: 7020010100
Price: 47.93 EUR
Availability: BackOrder

€47.93 Tax included

38.97 tax excl.

7020010100

Pneumatic valve 1/4 3 ways bistable.

Reference: 7020010100

Logotipo metal work

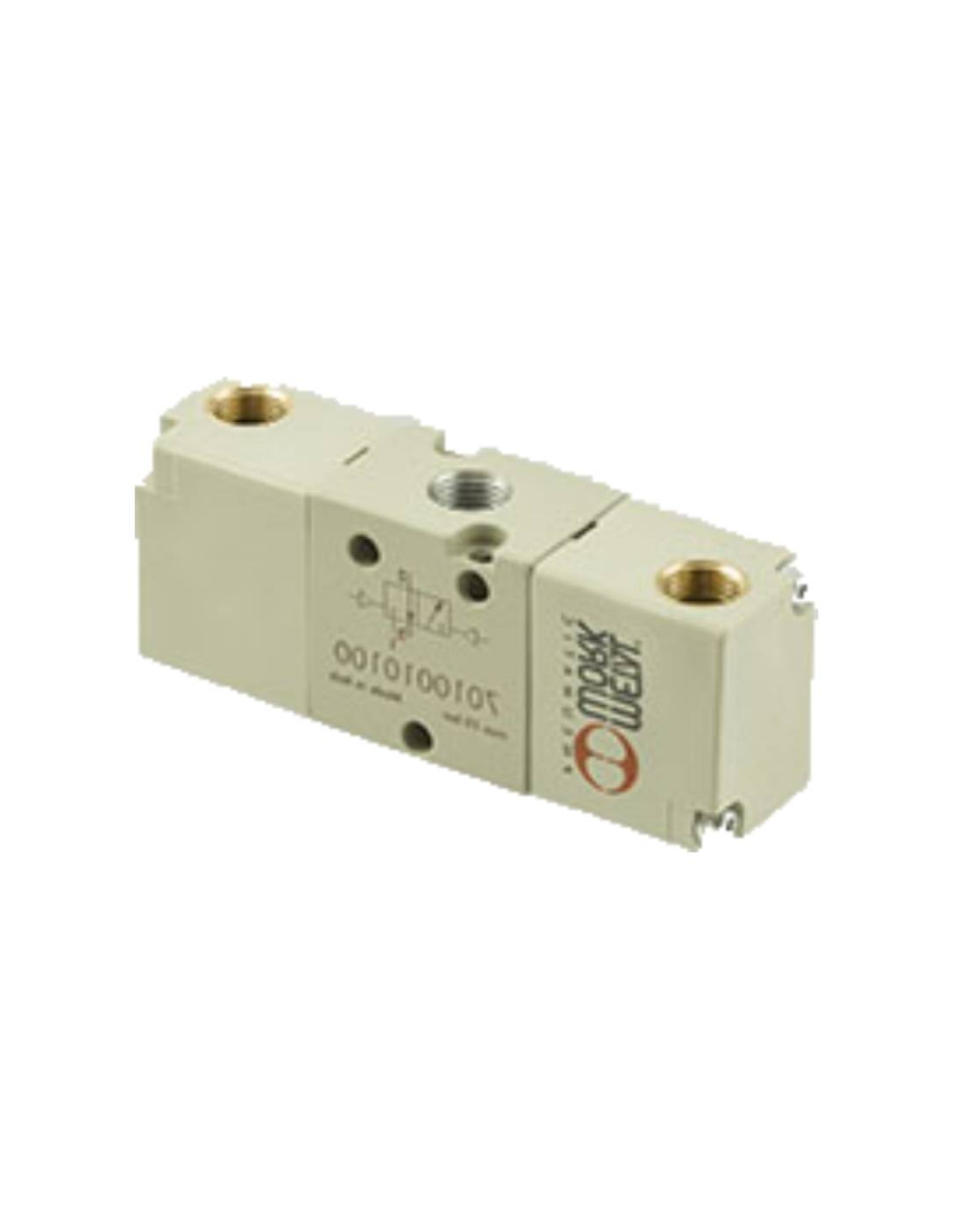

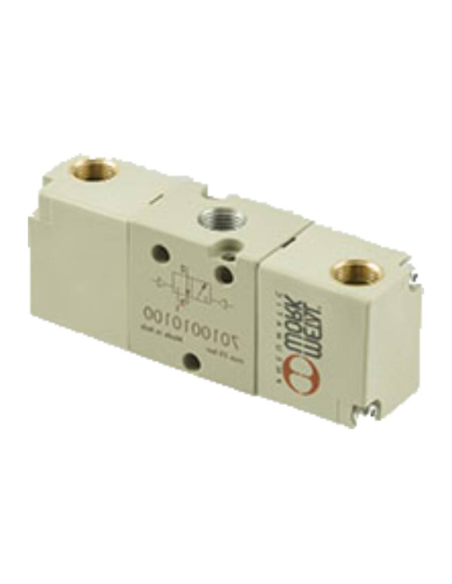

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic valve 1/4 3 ways bistable.

Manufacturer: Metal Work.
Reference: PNV33PNVOO Code: 7020010100.
Operating pressure bar: Empty ÷ 10
Minimum drive pressure monostable bar: 1
Operating temperature C: -10 ÷ +60
Nominal diameter mm: 7.5
Conductance C Nl/min ? bar: 264.26
Critical relationship b bar/bar: 0.27
Flow rate at 6 bar P 0.5 bar Nl/min: 750
Flow rate at 6 bar P 1 bar Nl/min: 1100
TRA/TRR monostable at 6 bar ms: 7/15
TRA/TRR bistable at 6 bar ms: 7/7

For other models consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
