Diameter 40 pneumatic pressure multiplier with regulator - Metal Work

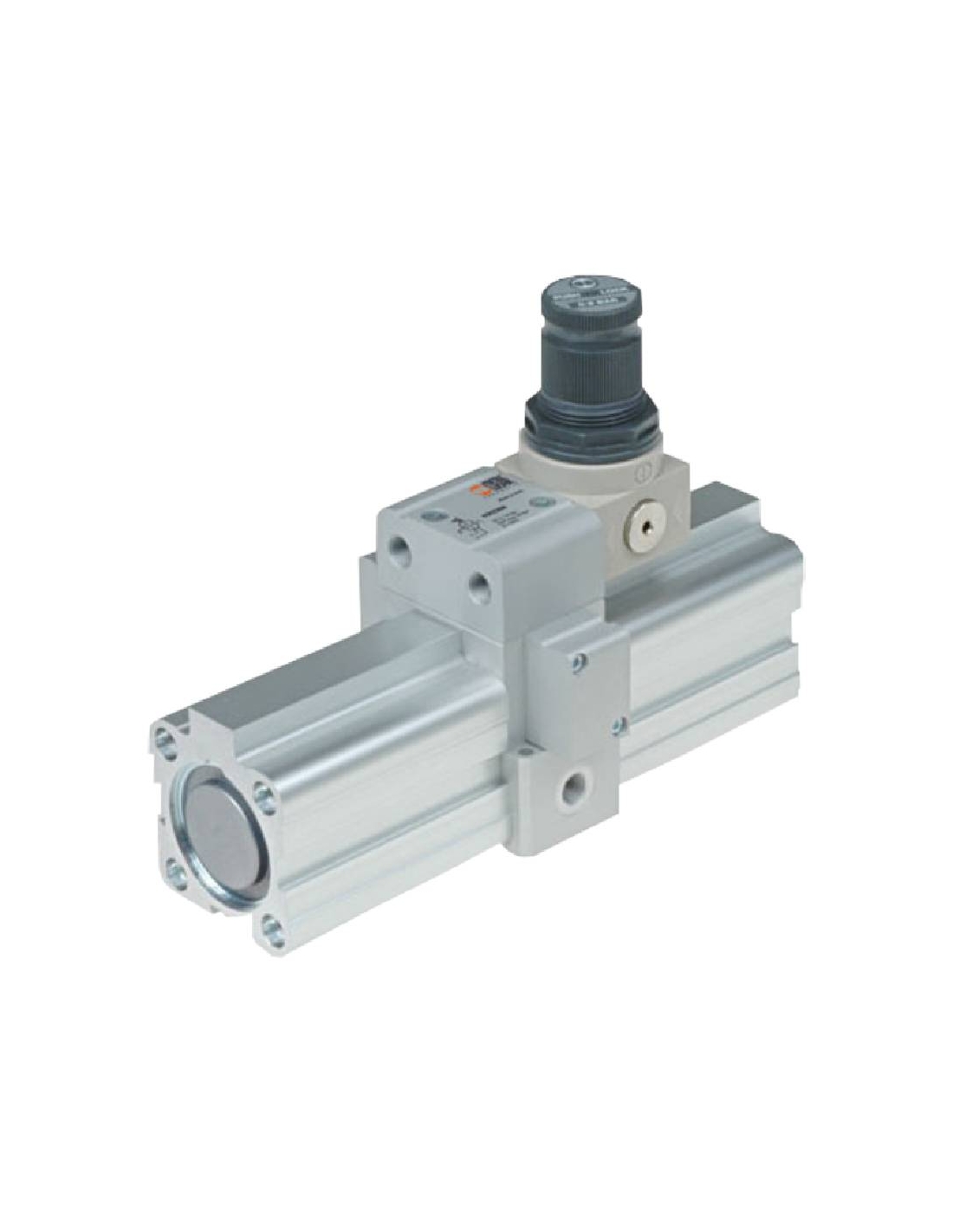

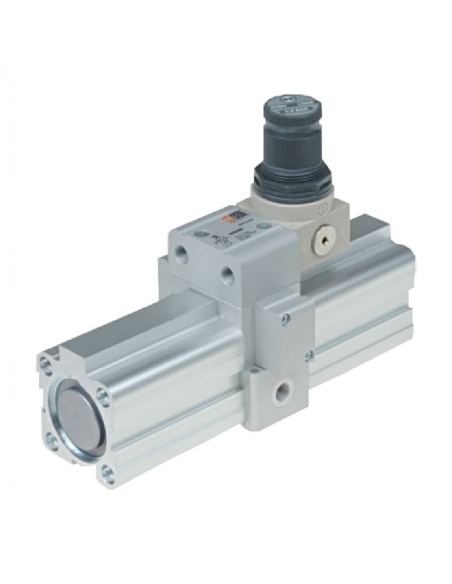

40 diameter air-air pressure multiplier , without air pressure regulator at the outlet. The air pressure multiplier, also called booster, is an automatic device that compresses the incoming air, releasing at the outlet a flow of air with double pressure with respect to the inlet, multiplying by two the value of the air pressure in its entrance.

This device is usually used where it is necessary to intensify, at a certain location, the supply pressure of one or more pneumatic actuators. It is an entirely pneumatic device, it can be used in environments where the use of electrical devices is discouraged. The multiplier is equipped with non-return valves that allow the outlet pressure to be maintained, even when the inlet pressure is interrupted.
Pressure multipliers do not replace compressors, but provide a higher pressure value for a limited time. They are often used to increase the force of pneumatic cylinders.

To avoid fluctuations in the outlet pressure, it is advisable to install a tank after the multiplier.

The pressure gauge for pressure indication is not included in the supply, it must be ordered separately.

Technical characteristics:

• Manufacturer: Metal Work .
• Reference: 9002100
• Diameter: 40mm.
• Fluid: Air without lubrication, if lubricated air is used, it must be continuous.
• Thread: G 1/8.
• Inlet pressure:
  • MPa: 0.2...1.
  • bar : 2...10.
  • psi: 29..145.
• Outlet pressure:
  • MPa: max 2.
  • bar : max 20.
  • psi: max 290
• Operating temperature: -10º ... 60º.
• Weight: 1,380 gr.
• Fixing: Possibility of fixing to wall or panel.
• Mounting position: in any position.
• Pressure Regulator installed.

Attention: It is necessary to unplug the power and discharge the use circuit before carrying out any intervention with the device.

Dimensions:

Flow curves:

To avoid fluctuations in the outlet pressure, it is advisable to install a tank after the multiplier. If a tank is used, the tank filling times must be taken into account. Below we provide a filling curve for a 10-liter tank.

Installation note: The pressure regulator is installed at the inlet of the multiplier, if for example, we need to have 10kg/cm2 at the outlet, we have to set the regulator to a pressure of 5kg/cm2 since the multiplier provides double the pressure at the exit from the one at the entrance.

Material for professional use, install in compliance with the regulations in force at the installation site.
