Cylinder 25x75 double effect - Mindman

€40.57 Tax included

32.98 tax excl.

MCMI110250075

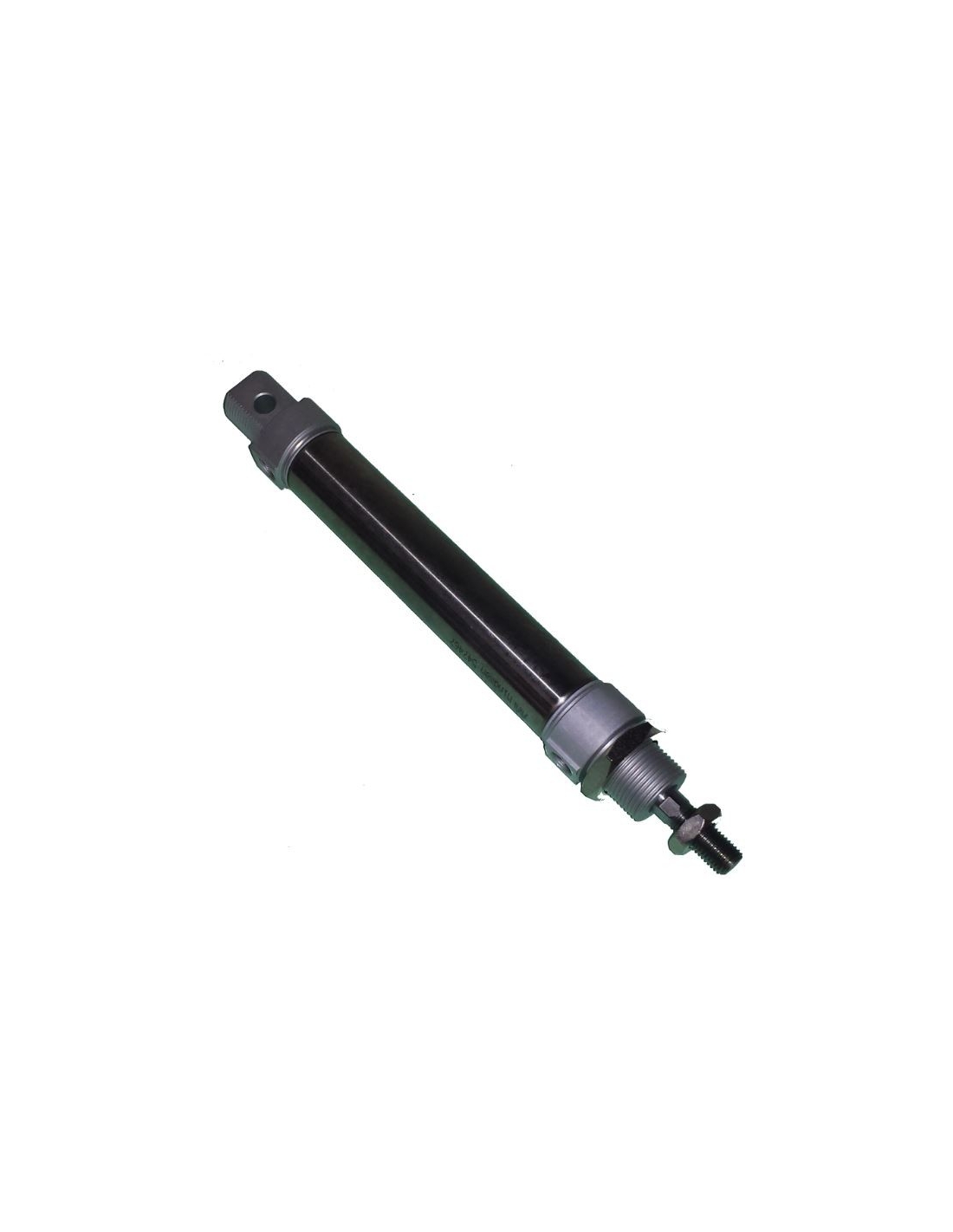

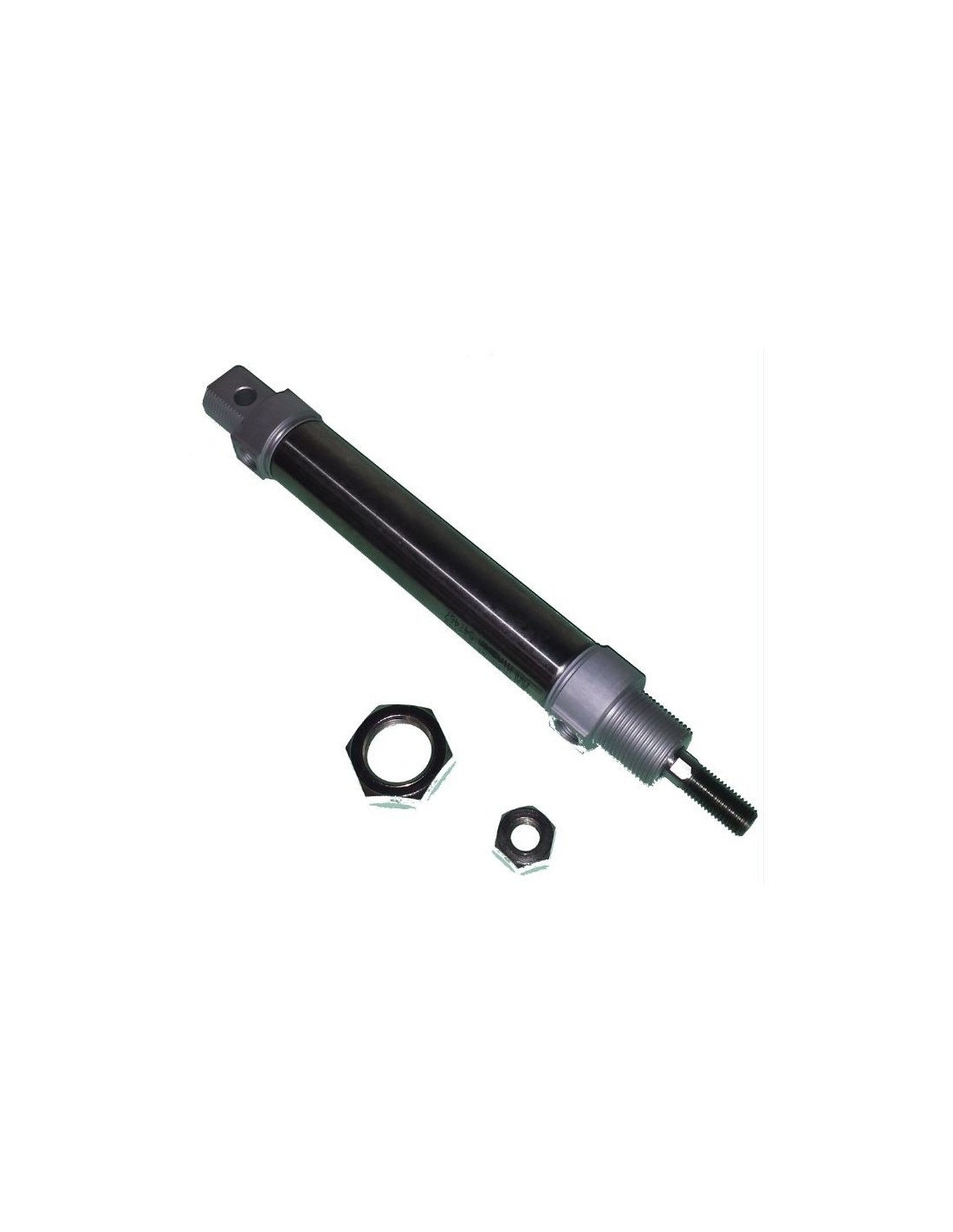

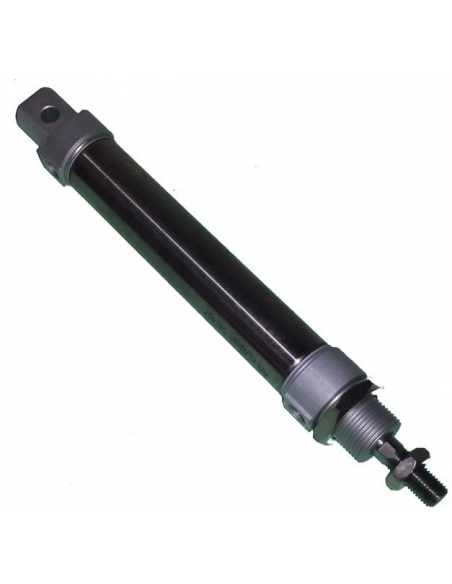

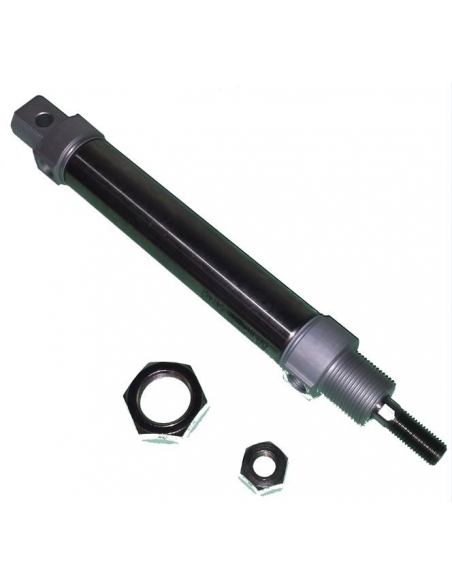

Pneumatic cylinder Ø25x75 double effect, magnetic.
Reference: 281MCMI110250075
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 25 mm stroke 75mm, double effect and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432, with shirt in anodized steel. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Diameter & Stroke: .25x75 mm.
  • Fitting thread: G1/8".
  • Type: Double-effect pneumatic cylinder.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 6432.
  • Maximum operating pressure: 7 Bar.
  • Maximum pressure: 10 Bar.
  • Type of gaskets: NBR.
  • Operating temperature: -5oC to +60oC.
  • Type of construction: Stem and cylinder head in chromed steel, steel shirt.

For other strokes or diameters consult.

Dimensiones cilindros neumáticos 16-25mm ISO 6432

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
Que diferencia hay entre la presion maxima de funcionamiento y la presion maxima?
Answer

Buenos días, la presión máxima de funcionamiento, es la máxima presión a la que se garantizan las carácteristicas de funcionamiento del cilindro. La presión máxima, es la presión máxima se que se puede aplicar en el cilindro en cualquier caso y que no se puede exceder.

Saludos

Santiago

Nicolas on 05/22/2016 14:21:12
