Pneumatic cylinder 20x25 double-acting - Mindman

€36.41 Tax included

29.6 tax excl.

MCMI110200025

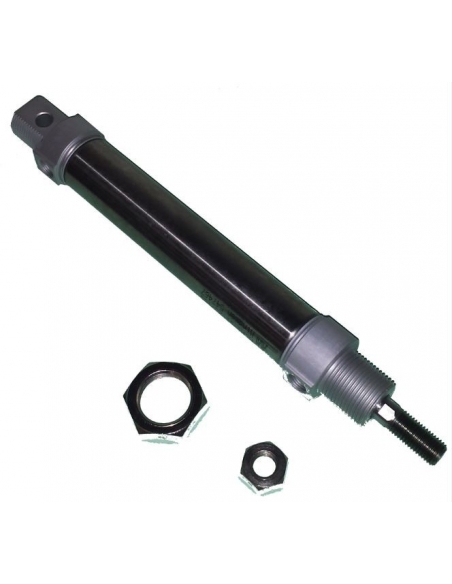

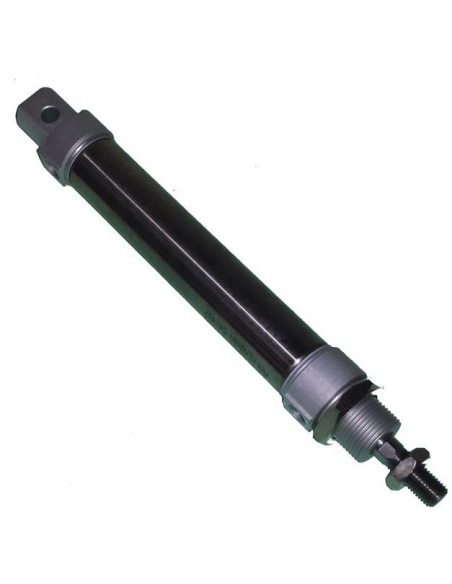

Pneumatic cylinder Ø20x25 double acting, magnetic.
Reference: 281MCMI110200025

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 20 mm stroke 25 mm, double acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432 standard, with anodized steel sleeve. Chrome-plated steel piston rod. Wide range of accessories for mounting the pneumatic cylinder.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Part number: 281MCMI110200025
  • Diameter and stroke: Ø20x25 mm.
  • Thread for fittings: G1/8".
  • Type: Double acting pneumatic cylinder.
  • Type of fluid: Air with or without lubrication.
  • Manufacturing standard: ISO 6432.
  • Maximum operating pressure: 7 Bar.
  • Maximum pressure: 10 Bar.
  • Type of seals: NBR.
  • Operating temperature: -5ºC to +60ºC.
  • Type of construction: Stem and cylinder heads in chrome-plated steel, steel jacket.

For other strokes or diameters, please consult us.

Dimensiones cilindros neumáticos 16-25mm ISO 6432


Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Question
Que peso puede levantar y aguantar mi intencion es elevar para nivelar y quitar movomiento en un autocaravana cuando esta estacionada mediante dos pistones
Answer

Buenas

La fuerza que un cilindro puede ejercer depende de la presión del aire que se suministre, para un cilindro de Ø25 las fuerza teorica máxima serian:

Presión de 5 K/cm2: Empuje 24,5 Kg - Tracción 20,6 Kg.

Presión de 6 K/cm2: Empuje 29,5 Kg - Tracción 24,7 Kg.

Presión de 7 K/cm2: Empuje 34,4 Kg - Tracción 28,9 Kg.

Como prodrá ver, no parece mucho para la utilidad que se le quiere dar, pero esto es decisión suya.

Para calcular la fuerza que cualquier cilindro, la formula es sencilla:

 F (Kg) = Superficie del cilindro (cm2)* Presión (Kg/cm2)  (Para empuje)

Saludos

Santiago

Jose ros on 03/14/2016 14:55:57
