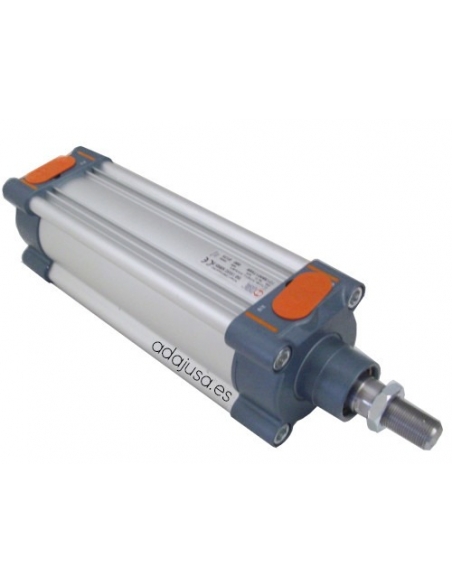

Pneumatic cylinder diameter 125 mm stroke 25mm, in double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with aluminium jacket. Rod in chromed steel. Wide range of accessories for the assembly of the pneumatic cylinder.
The 3 series manufactured by Metal Work is fully compatible with the standard series of cylinders and highly compatible with the "A" series also manufactured by Metal Work. Its elaborate design of extruded aluminum profile, allows to accommodate a wide variety of magnetic detectors on groove and mounted on supports.
The standard cylinder is equipped with pneumatic damping and NBR gaskets, on request it can be supplied with polyurethane gaskets.
Technical characteristics of the pneumatic cylinder:
- Manufacturer: Metal Work.
- Manufacturer reference: 1213A20025AN
- Bore and stroke: Ø125x25 mm
- Type: Double effect pneumatic cylinder
- Damping: pneumatic.
- Fluid type: Air with or without lubrication
- Manufacturing standard: ISO 15552 (Ex ISO 6431)
- Maximum operating pressure: 10 Bar
- Gasket Type: NBR
- Operating temperature: -10ºC to +80ºC.
- Type of construction: Chrome steel stem, aluminum jacket
- Air Connection Thread Size: G 1/2"
- Stem thread: M27x2
- Theoretical maximum force that the cylinder can develop at thrust:
- Pressure 5 kg/cm²: 613,6 Kg
- Pressure 6 kg/cm²: 736.3 Kg
- Pressure 7 kg/cm²: 859,0 Kg
- Theoretical maximum force that the cylinder can develop to traction:
- Pressure 5 kg/cm²: 573,4 Kg
- Pressure 6 kg/cm²: 688,1 Kg
- Pressure 7 kg/cm²: 802,7 Kg
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
