Clamp ASFA-L (9 mm) stainless steel W2 16-27mm| ADAJUSA : price

Clamp INOX W2 16-27mm auger for tube or hose

Name: Clamp INOX W2 16-27mm auger for tube or hose
Brand: Generico-MAD
SKU: 4810.000758
Price: 0.86 EUR
Availability: InStock

€0.86 Tax included

0.7 tax excl.

4810.000758

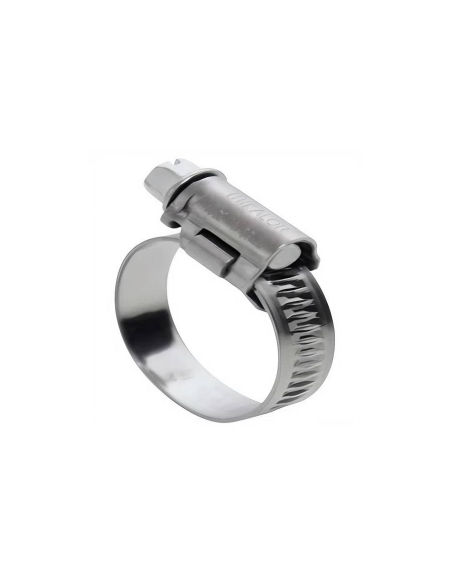

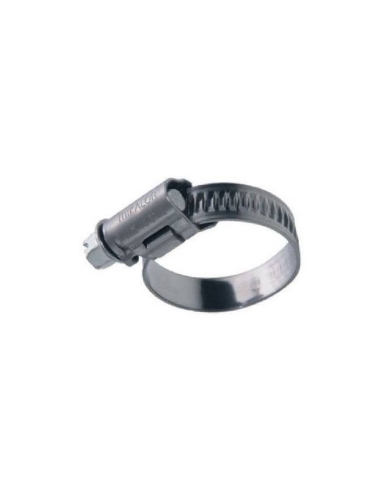

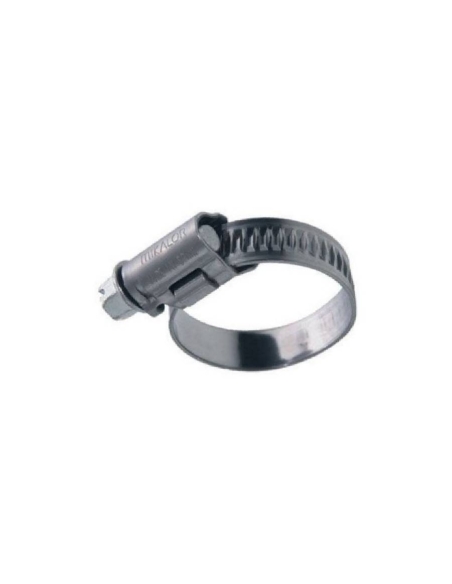

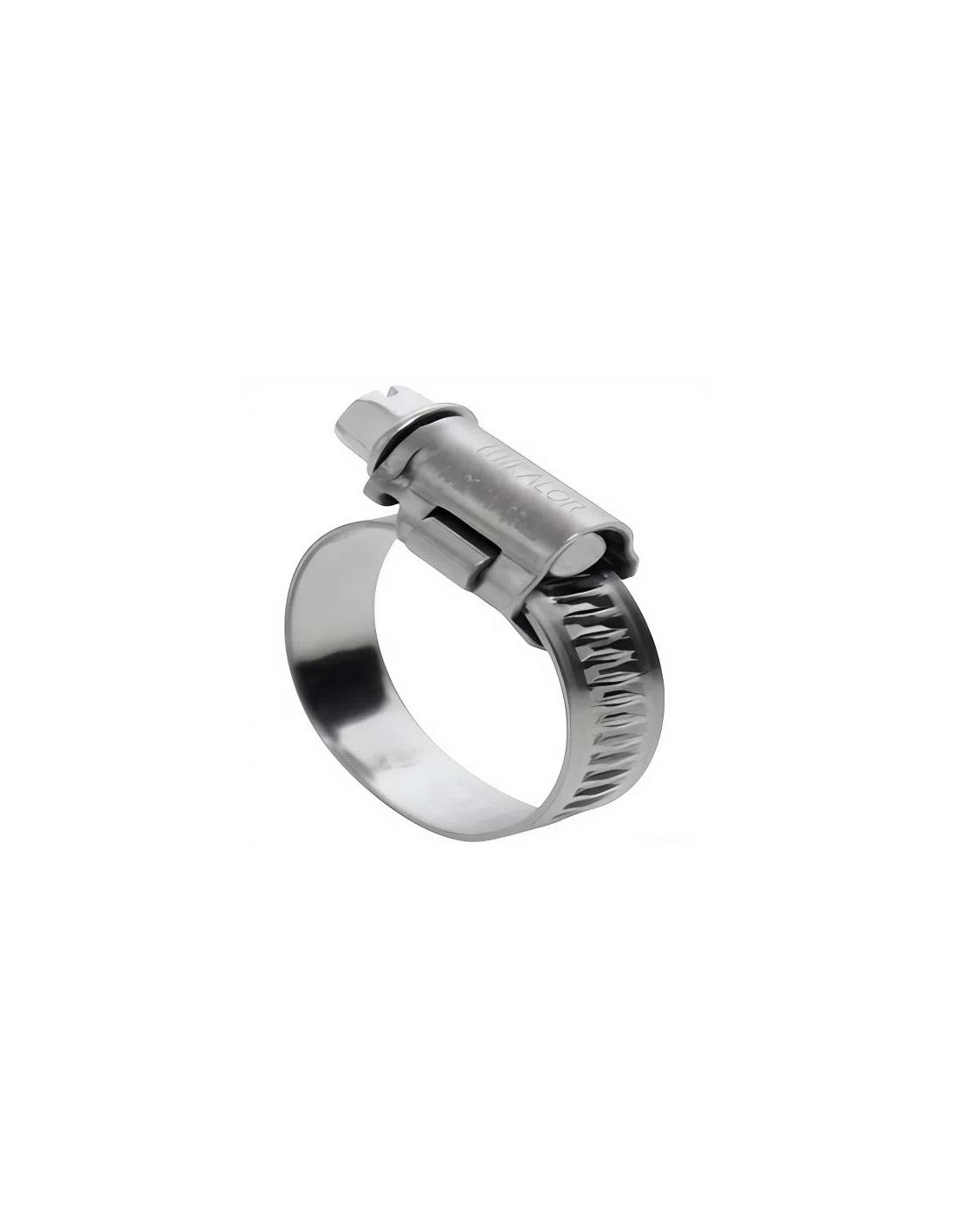

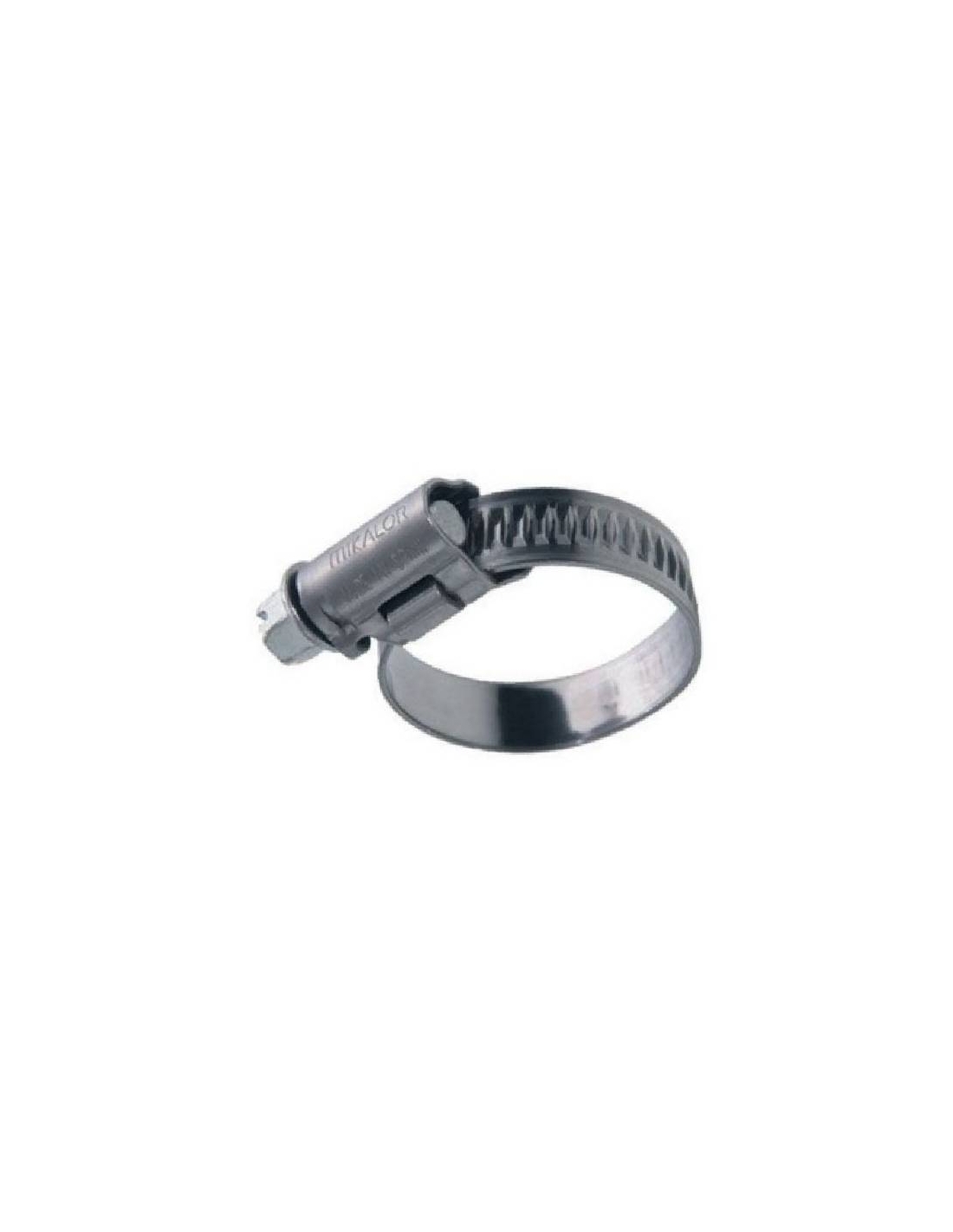

Clamp W2 stainless steel worm drive model ASFA-L for clamping pipe or hose with a diameter between 16-27 mm, quick and easy tightening by means of a high resistance adjusting screw.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Clamp ASFA-L medium pressure screw clamp in stainless steel W2 DIN 3017. Clamp for clamping of pipe or hose of 16-27 mm diameter, quick and easy tightening by means of screw. Provides a firm and secure clamping in a wide variety of applications.

Unique high strength head and screw design offers a compact, high performance solution. Manufactured to DIN 3017 and compliant with EU Directive 2002/95/EC, meeting the highest standards of quality and safety

This clamp is ideal for securing hoses without damaging them, guaranteeing a secure and durable connection thanks to its non-perforated 9mm tape, with a completely smooth interior and rounded edges. Thanks to the design of the head and its high-strength screw, it is a very compact and high performance clamp. It offers good corrosion resistance (type W2) and high tightening force, being common in industrial and automotive applications.

Features:

Manufacturer: Mikalor
Application diameter: 16-27 mm
Band and head material: Stainless steel. W2 AISI 430 X6Cr17 (DIN 1.4016)
Screw material: Steel Qst 36-3 (DIN 1.0214) Zinc plated Cr3
Corrosion resistance: 72 h. CNS (ASTM B-117)
Maximum screwing speed: 540 ± 5 rpm
Maximum pressure: 42 bar
Maximum torque: 3,5 Nm
Standards: DIN 3017. Complies with EU directive 2002/95/EC

Ø D: 16-27 mm; A +0.3 -0.2: 9 mm; L +1 -0.5: 23.6 mm; S ±0.1: 0.7 mm; H Max: 10.5 mm; B Max: 14 mm

Material for professional use, install in compliance with the regulations in force at the place of installation.
