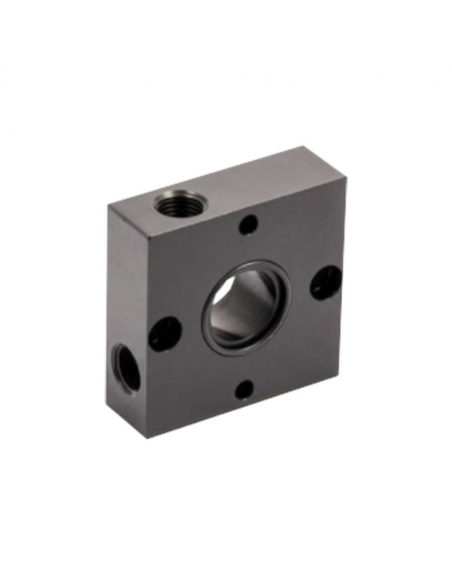

Air intake 3/4 New Deal - Metal Work - ADAJUSA

Air intake 3/4 PA New Deal - Metal Work

Name: Air intake 3/4 PA New Deal - Metal Work
Brand: Metal Work
SKU: 9600401
Price: 54.6858 EUR
Availability: PreOrder

€54.69 Tax included

€44.46 tax excl.

Air intake PA New Deal 3/4"

Allows air extraction in PRL New Deal groups.

Reference: 9600401

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Air intake PA New Deal 3/4"

The function of the air intake is to allow, regardless of the position in which it is mounted, the extraction of air from the PRL New Deal group.
Its use is necessary when you want to extract air from the FRL group itself in various treatment phases (normal, reduced filtering, lubricated, etc.).

Supplied with 2 screws for fixing between F/L and R/FR.

Reference: 9600401

Characteristics:

Threaded coupling: 1/2"
Maximum admitted pressure: 18 bar
Maximum temperature at 1MPa; 10bar; 145psi: 50ºC
Weight: 0.41Kg

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
