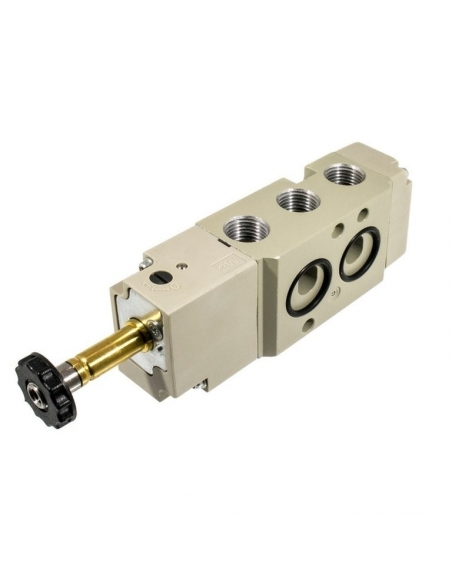

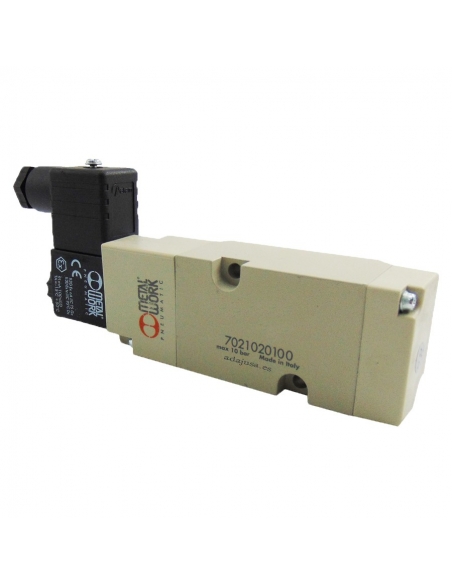

Single-stable NAMUR solenoid valve 5/2 230Vac - Metal Work

€75.55 Tax included

€61.42 tax excl.

Pneumatic solenoid valve NAMUR monostable 5/2. With connector and coil 230Vac






Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve NAMUR monostable 5/2. To be installed directly on pneumatic turning actuators.

The supply includes:
  • Pneumatic solenoid valve NAMUR 5/2 monostable
  • Coil 230 Vac 3.50 VA
  • Connector 22 mm


Specifications:
  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7021020100 SOV A5 SOS OO
  • Standard: NAMUR.
  • Operating pressure (bar): 2.5 ÷ 10
  • Minimum drive pressure (bar): 2.5
  • Operating temperature (ºC): -10 ÷ +60
  • Nominal diameter (mm): 7.5
  • Conductance C (Nl/min · bar): 264.26
  • Critical ratio b (bar/bar): 0.27
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 750
  • Flow rate at 6 bar ΔP 1 bar (0.1 Mpa - 14.5 psi) (Nl/min): 1100
  • Pneumatic monostable TRA/TRR at 6 bar (ms): 7 / 15
  • Power: 220 - 240 Vac
  • Voltage 3.50 VA




* In the piston return phase, the air in chamber A is communicated from that leaving chamber B. In this way, dirty air from penetrating the external environment is prevented.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
