Motor guard circuit breaker 0.63 to 1 A GV2ME05 - Schneider

€47.11 Tax included

€38.93 tax excl.

Three-phase motor circuit breaker for electric motor protection. The regulation of the motor circuit breaker junctor is between 0.63 and 1 A. The installation of a circuit breaker motor circuit breaker makes it possible to prevent the breakdown of electric motors, both single-phase and three-phase, due to overloading, failure of a phase or short circuit.

Reference: GV2ME05

Esquema eléctrico disyuntor magnetotérmico

Logotipo Schneider

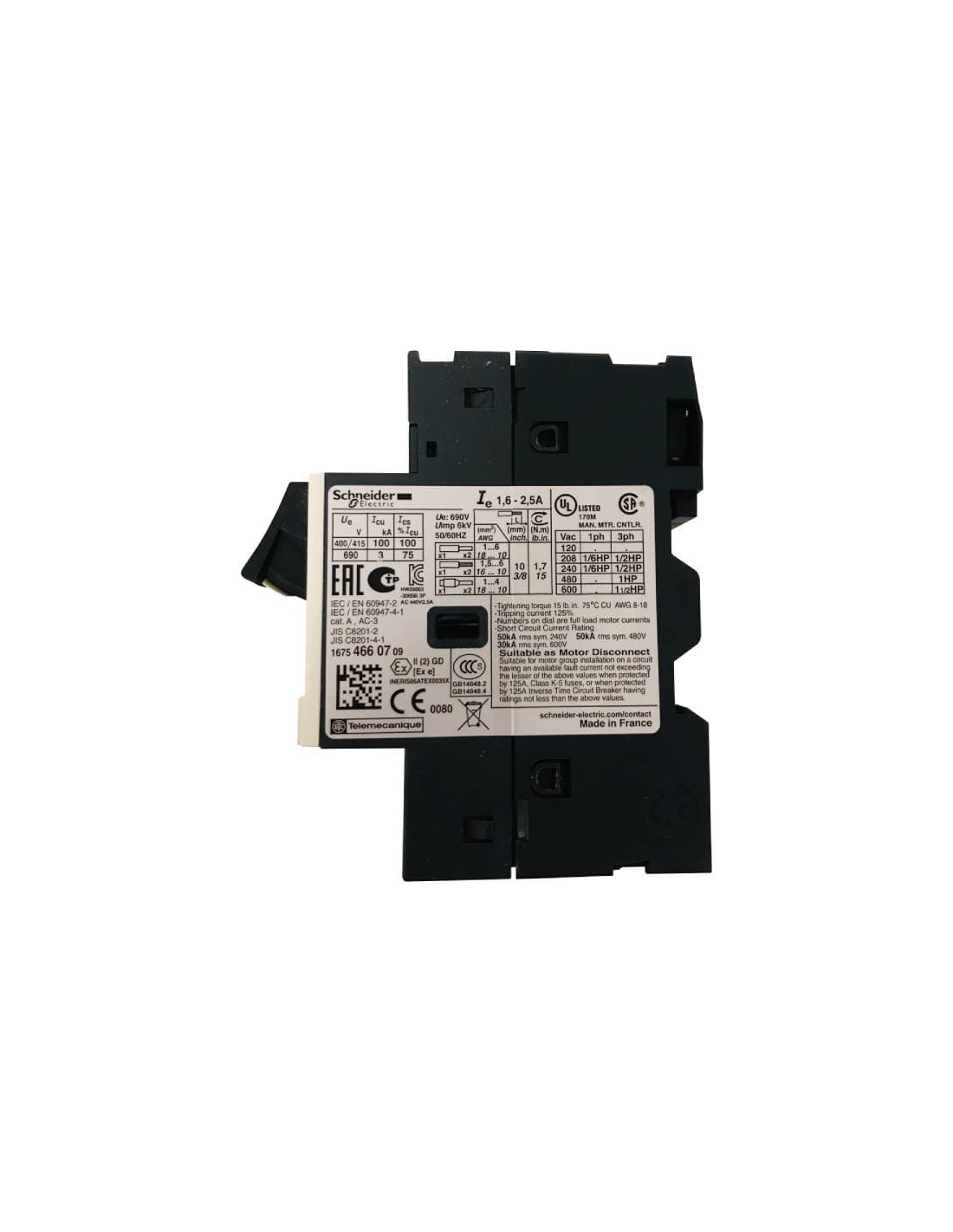

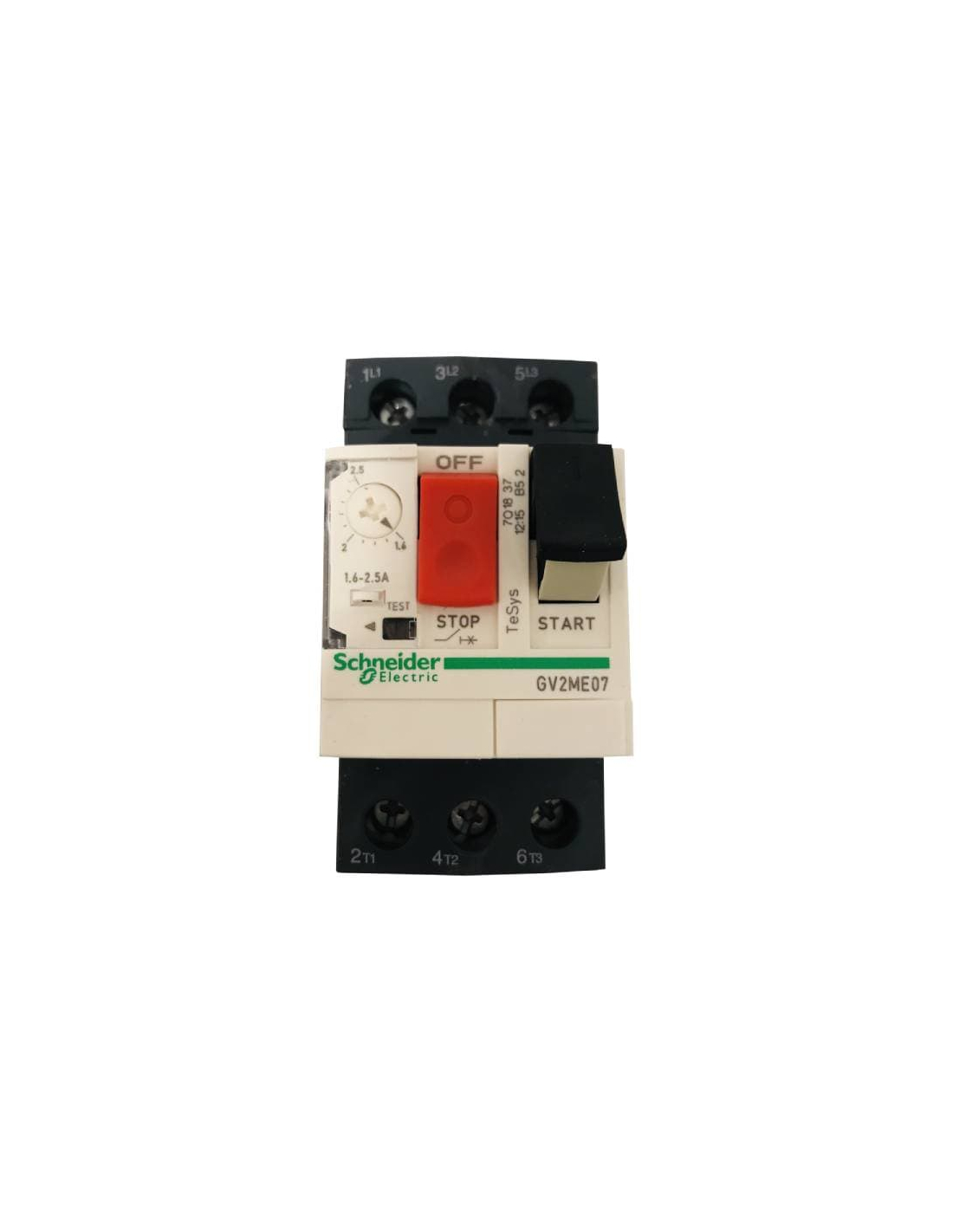

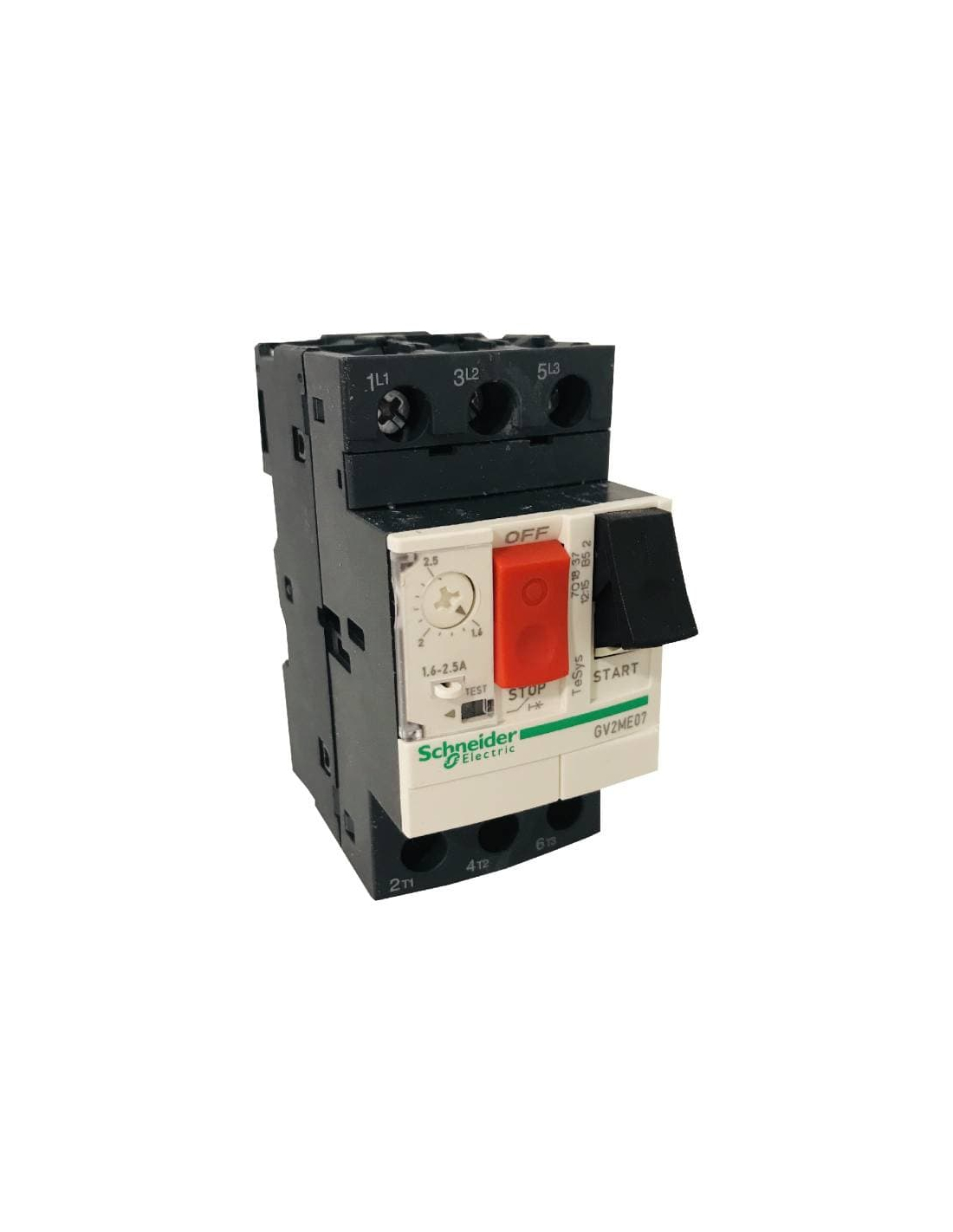

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pulse-operated motor guard circuit breaker for motor protection circuits by thermal (adjustable) or short-circuit (magnetic) disconnection. Possibility of installation of front and side auxiliary contacts. High cutting capacity.

The installation of a motor circuit breaker in the power circuit of an electric motor, both three-phase and single-phase, allows to prevent breakdowns in the engine by overload, in three-phase motors, also allows to prevent breakdown in the electric motor due to loss of a phase, preventing the motor from working in 2 phases.

Types of protection:

  • Short circuits (Magnetic).
  • Overload (Thermal).
  • Phase failure.


  • Manufacturer: Schneider Electric.
  • Range: Tesys.
  • Reference: GV2ME05
  • Maximum operating voltage (Ue): 690 V 50/60Hz.
  • Adjustment range (Thermal protection): 0.63 to 1 A.
  • Magnetic trigger intensity: 33.5A.
  • Type of shot: Thermal and magnetic.
  • Cutting power (Icu): 100kA.
  • Engine power: 0.75kW to 400Vac.
  • Poles: 3.
  • Frequency: 50/60 Hz.
  • Use category: AC-3 in accordance with IEC 60947-1. Category A in accordance with IEC 60947-2
  • Drive: By pushbuttons.
  • Clamping: DIN rail.
  • Degree of protection: IP-20 IK-04.
  • CE marking.
  • According to IEC 60947-2, 60947-4-1.

To expand the information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
