Motor circuit breaker 0.63 to 1 A GV2ME05 - Schneider

€49.32 Tax included

40.1 tax excl.

GV2ME05

Motor circuit breaker three-phase circuit breaker for electric motor protection. The setting of the motor circuit breaker is between 0.63 and 1A. The installation of a motor protection circuit breaker prevents the failure of electric motors, both single-phase and three-phase, due to overload, phase failure or short-circuit.

Part number: GV2ME05

Esquema eléctrico disyuntor magnetotérmico

Logotipo Schneider

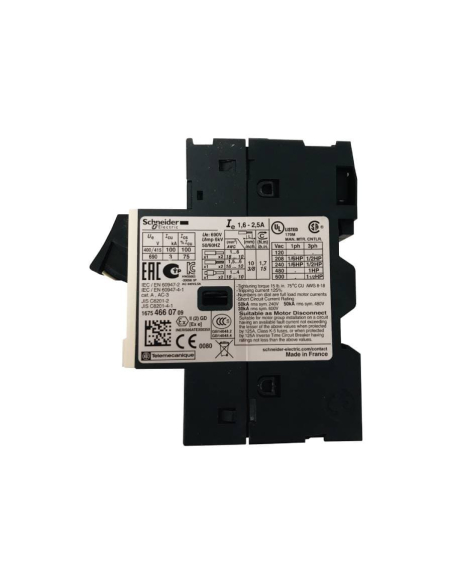

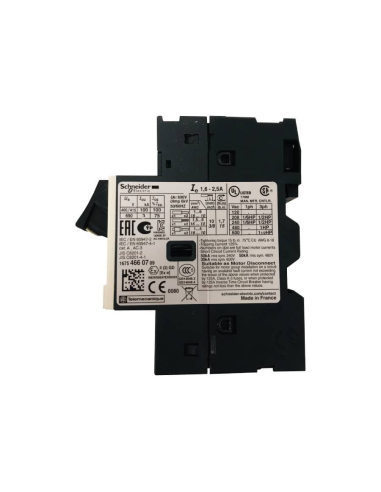

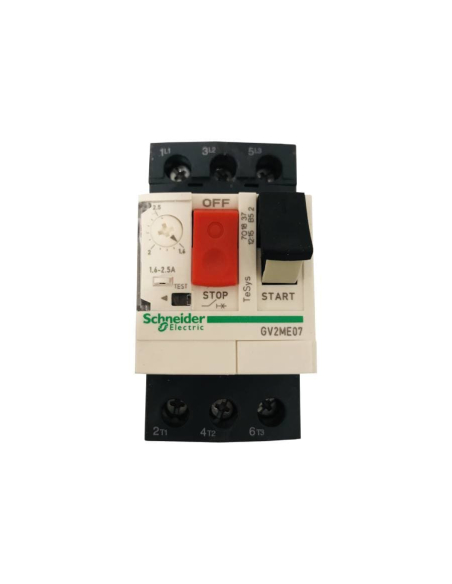

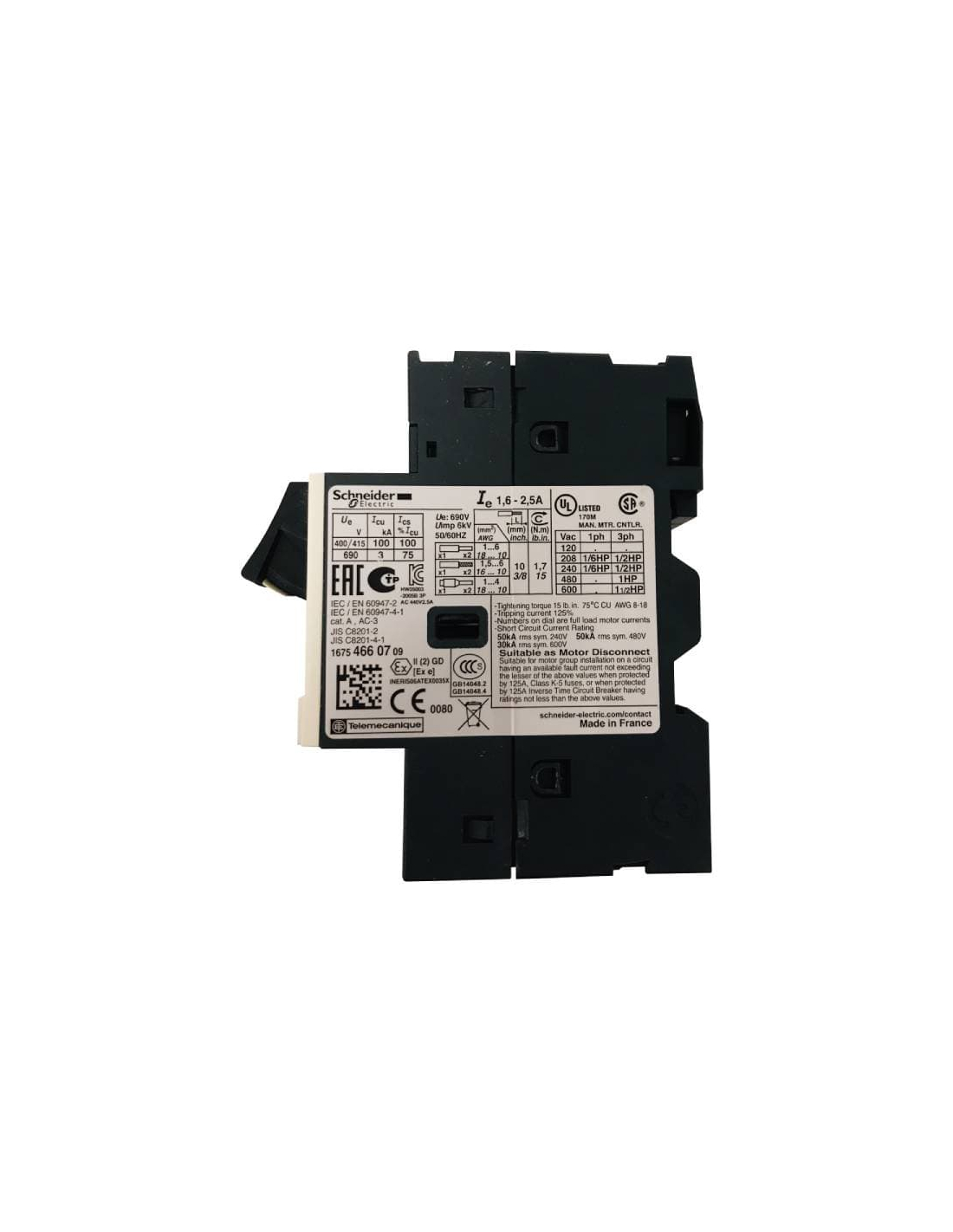

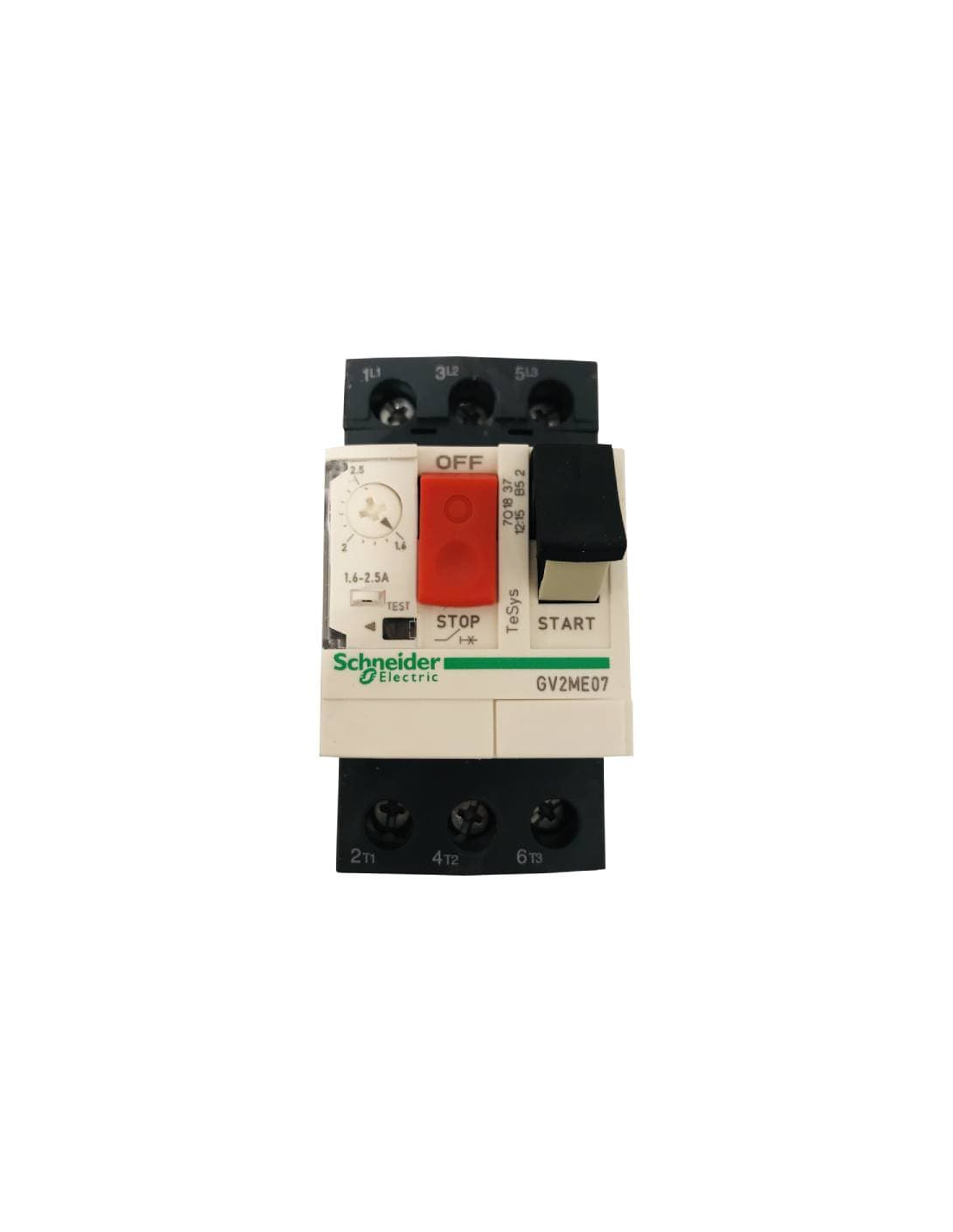

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Motor circuit breaker pulse-actuated, for motor protection circuits by thermal (adjustable) or short-circuit (magnetic) cut-off. Possibility of installing front and side auxiliary contacts. High breaking capacity.

The installation of a motor protection circuit breaker in the power supply circuit of an electric motor, both three-phase and single-phase, allows to prevent motor failures due to overload, in three-phase motors, it also allows to prevent the failure of the electric motor due to loss of a phase, preventing the motor from working in 2 phases.

Types of protection:

  • Short-circuit (Magnetic)
  • Overload (Thermal)
  • Phase failure


Characteristics:

  • Manufacturer: Schneider Electric
  • Range: Tesys
  • Part number: GV2ME05
  • Maximum operating voltage (Ue): 690 V 50/60Hz
  • Adjustment range (Thermal protection): 0.63 to 1 A
  • Magnetic trip current: 33,5A
  • Tripping type: Thermal and magnetic.
  • Breaking capacity (Icu): 100kA
  • Motor power: 0.75kW at 400Vac
  • Poles: 3
  • Frequency: 50/60 Hz
  • Utilization category: AC-3 according to IEC 60947-1. Category A according to IEC 60947-2
  • Actuator: Push button
  • mounting: DIN rail
  • Degree of protection: IP-20 IK-04
  • CE marking.
  • According to IEC 60947-2, 60947-4-1

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
