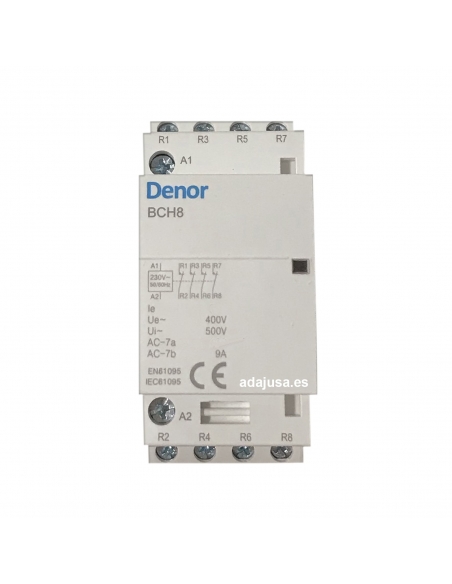

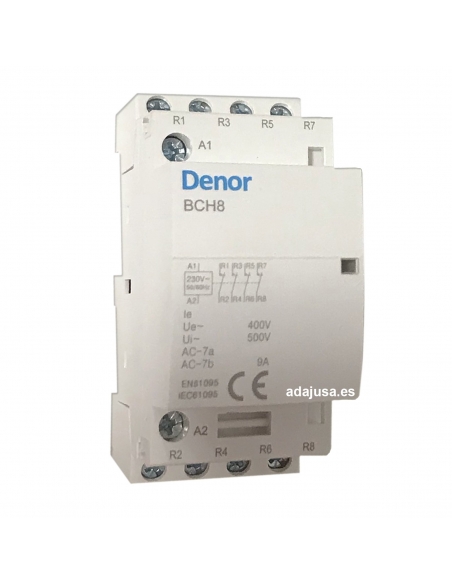

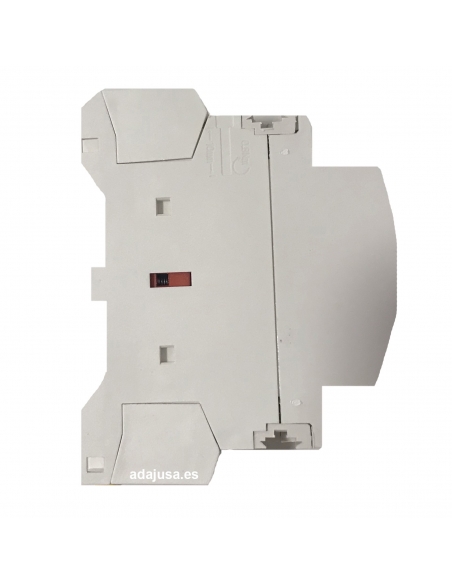

Modular contactor 25A 4 Closed stations 230Vac - Denor

Modular contactor 25A 4 Closedpoles 230Vac

Name: Modular contactor 25A 4 Closedpoles 230Vac
Brand: Generico-DE
SKU: BCH8-25A4P4NC
Price: 21.538 EUR
Availability: InStock

€21.54 Tax included

€17.80 tax excl.

Modular electric contactor 4 closed poles for domestic applications, for control of domotic systems, domestic motors, heating, lighting, ventilation and general uses. with a capacity of 25A in AC-1/AC-7a category. Coil voltage 230Vac. Size 2 module (36mm).

Ref: BCH8-25A 4P 4NC 230Vac

Esquema contactor 4 contactos cerrados

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Normally closed 4-pole modular contactor (NC), 25A in AC-1/AC-7a category, contactor coil voltage is 230 Vac. The main application of modular contactors is the control of loads in the domestic environment, allows the control of domestic systems, domotics, heating, lighting and air conditioning, can also be used in industrial and general purpose applications.

Fixation by DIN rail and size 2 modules (36mm).

General modular contactor features:

Manufacturer/Supplier: Denor
Ref: BCH8-25A 4P 4NC 230Vac
Contactor assigned current in AC1/AC7a: 25A.
Contactor assigned current in AC3/AC7b: 8.5A.
Number of contacts (Poles): 4.
Contact status: Normally closed (NC).
Maximum contactor power in AC1/AC7a: 5.3 Kw.
Maximum contactor power in AC3/AC7b: 1.3 Kw.
Contactor coil voltage: 230Vac 50/60 Hz.
Width size: 36mm (2 modules).

Dimensiones contactor modular 25A 4 polos

Material for professional use, install in compliance with the regulations in force at the installation site.

Modular contactors catalog

Modular contactors datasheet

Download (1.09MB)

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Modular Contactors

Bistable relay 16A 1NA-NC 230Vac

Generico-DE

GRM8-01

€26.44 (€21.85 tax excl.)

Bistable relay,16A with a switched contact (open and closed), coil 230Vac. For command and control of installations with lamps or general uses. Ref: GRM8-01

Modular Contactors

Modular contactor 63A 2Poles open 230Vac with manual control - Tracon

TRACON

SHK2-63K

€26.92 (€22.25 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 63A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm).With manual operation lever or lock.Reference: SHK2-63K Representative image...

Modular Contactors

25A modular contactor 4 open poles 24Vac

Generico-VMC

CM254NA024

€52.85 (€43.68 tax excl.)

Modular electric contactor with 4 open poles for domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. with a capacity of 25A in category AC-1/AC-7a. Coil voltage 24Vac. Size 2 modules (36mm). Reference: CM25 2M 25A 4NO 24VAC Representative image for illustrative purposes, the...

Modular Contactors

Modular contactor 40A 2Poles open 230Vac with manual control - Tracon

TRACON

SHK2-40K

€27.19 (€22.47 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 40A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm). With manual operation lever or lock. Reference: SHK2-40K Representative...

Modular Contactors

Modular contactor 25A 2Poles open 24Vac - Tracon

TRACON

SHK2-25-24

€10.70 (€8.84 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 25A in category AC-1/AC-7a. Coil voltage 24Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 1 module (18mm).Reference: SHK2-25 Representative image for illustrative purposes, the item...

Modular Contactors

Teleswitch 16A 2NA 230Vac

Generico-DE

6BIR16-20-230

€18.51 (€15.30 tax excl.)

Telerruptor, 16A remote switch with two open contacts (2 NO), 230Vac coil. For command and control of installations with lamps or general uses. Manual override on the front. Part no.: 6BIR-16/20-230Vac Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Modular Contactors

Modular contactor 25A 4Poles 2NO+2NC 230Vac - Tracon

TRACON

SHK4-25V22

€20.67 (€17.08 tax excl.)

Modular electrical contactor with 4 poles, 2 normally open (NO) and 2 poles normally closed (NC) with a capacity of 25A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm). Reference: SHK4-25V22 Representative...

Modular Contactors

Modular contactor 25A 2Poles open 230Vac - Tracon

TRACON

SHK2-25

€10.27 (€8.49 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 25A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 1 module (18mm).Reference: SHK2-25 Representative image for illustrative purposes, the item...

Modular Contactors

Modular contactor 63A 2Poles NO+NC 230Vac - Tracon

TRACON

SHK2-63V11

€21.24 (€17.55 tax excl.)

Modular electrical contactor with 2 poles, 1 pole normally open (NO) and 1 pole normally closed (NC) with a capacity of 63A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm). Reference: SHK2-63V11...

Modular Contactors

Modular contactor 63A 2Poles open 230Vac

Generico-VMC

CM632NA230

€57.04 (€47.14 tax excl.)

Modular electrical contactor for domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. 2-pole normally open (NO) with a capacity of 63A in category AC-1/AC-7a. Coil voltage 230Vac. Size 2 modules (36mm). Reference: CM63 3M 63A 2NO 230VAC Representative image for illustrative...

Modular Contactors

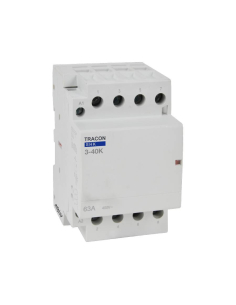

Modular contactor 40A 4Poles open 230Vac - Tracon

TRACON

SHK4-40

€26.04 (€21.52 tax excl.)

Modular electrical contactor with 4 normally open poles (NO) with a capacity of 40A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 3 modules (54mm).Reference: SHK4-40 Representative image for illustrative purposes, the item...

Modular Contactors

40A modular contactor 4Poles open 230Vac

Generico-VMC

CM404NA230

€85.20 (€70.41 tax excl.)

Modular electrical contactor with 4 open poles for domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. 4 poles with a capacity of 40A in category AC-1/AC-7A. Coil voltage 230Vac. Size 3 modules (54mm).Reference: CM40 3M 40A 4NO 230VAC Representative image for illustrative...

Modular Contactors

Modular contactor 40A 2Poles NO+NC 230Vac - Tracon

TRACON

SHK2-40V11

€18.03 (€14.90 tax excl.)

Modular electrical contactor with 1 pole normally open (NO) and 1 pole normally closed (NC) with a capacity of 40A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm). Reference: SHK2-40V11 Representative image...

Modular Contactors

Modular contactor 40A 2Poles open 230Vac - Tracon

TRACON

SHK2-40

€18.03 (€14.90 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 40A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm).Reference: SHK2-40 Representative image for illustrative purposes, the item...

Modular Contactors

Modular contactor 63A 2Poles open 230Vac - Tracon

TRACON

SHK2-63

€21.24 (€17.55 tax excl.)

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 63A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 2 modules (36mm). Reference: SHK2-63 Representative image for illustrative purposes, the item...

Shipping time: 2-3 days

Special relays

Teleswitch 16A coil 230Vac 1 changeover contact

TRACON

NARIMP

€23.40 (€19.34 tax excl.)

16A remote switch or impulse relay with a change-over contact (1 CO), 230Vac coil. Activated by impulses for the command and control of lighting in installations with several light points or for general uses. It has a control on the front for manual control. Reference: NARIM Representative image for illustrative purposes, the item supplied will...

Customers who bought this product also bought:

Timers - Switches and time programmers

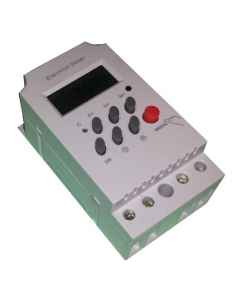

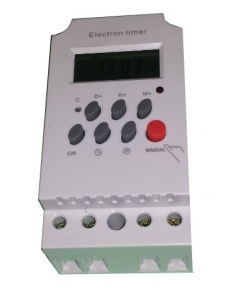

Digital time scheduler switch
