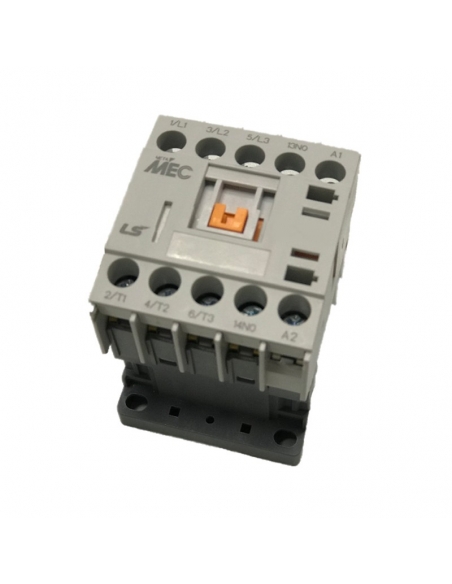

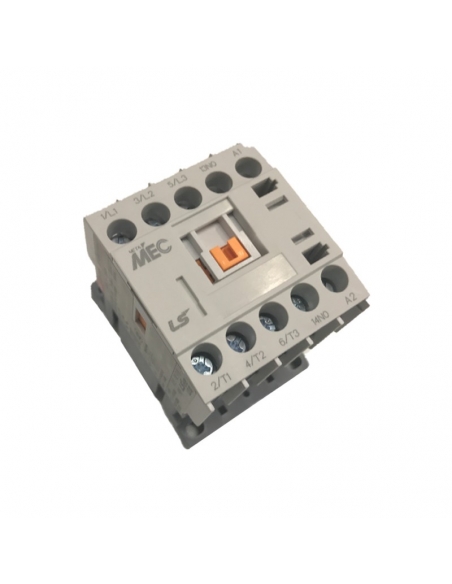

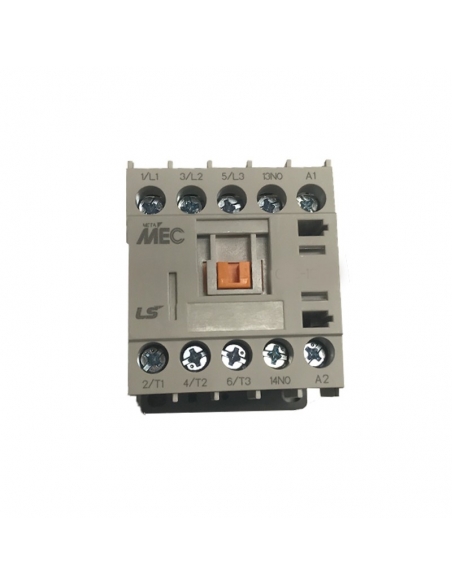

Mini connector LS 12A coil 24Vac NC closed auxiliary contact
Mini connector LS 12A coil 24Vac NC closed auxiliary contact
Mini connector LS 12A coil 24Vac NC closed auxiliary contact
Mini connector LS 12A coil 24Vac NC closed auxiliary contact
Mini connector LS 12A coil 24Vac NC closed auxiliary contact
Mini connector LS 12A coil 24Vac NC closed auxiliary contact

Miniature circuit breaker 12A coil 24Vac auxiliary contact closed NC - LS

€20.32 Tax included

16.52 tax excl.

97GMC12MA24B

Three-phase electricmini contactor for motor control, heating, lighting, ventilation, or general uses, 3-pole with a current capacity of 12A category AC3 or 20A category AC1, with 24Vac coil, the contactor is equipped with a closed auxiliary contact (NC).

Ref: GMC-12M-01-AC24V

Esquema electrico minicontactor 3 polos contacto auxiliar cerrado

Logotipo LS LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase LS miniature contactor (3 poles) of 12A in category AC3 or 20A in category AC1, the contactor coil voltage is 24Vac, with a closed auxiliary NC contact. The contactor is fixed by screws or DIN rail. The intended uses of the contactor are for control of electric motors, heating, lighting, ventilation, and general applications.

General characteristics of the mini contactor:

  • Manufacturer: LS.
  • Ref: GMC-12M-01-AC24V
  • Number of poles: 3.
  • Rated current mini contactor in AC3: 12A.
  • Maximum thermal current Ith mini contactor: 20A.
  • Maximum voltage: 660 V.
  • Maximum power: 3~AC3 230V: 3 Kw.
  • Maximum power: 3~AC3 400V: 5,5 Kw.
  • Control voltage (coil): 24Vac.
  • Contact auxiliary integrated in the mini contactor: 1 Closed (NC)

Dimensiones contactor LS vista frontal

Minicontactor LS Vista lateral y posterior

Material for professional use, install in compliance with the regulations in force at the place of installation.
