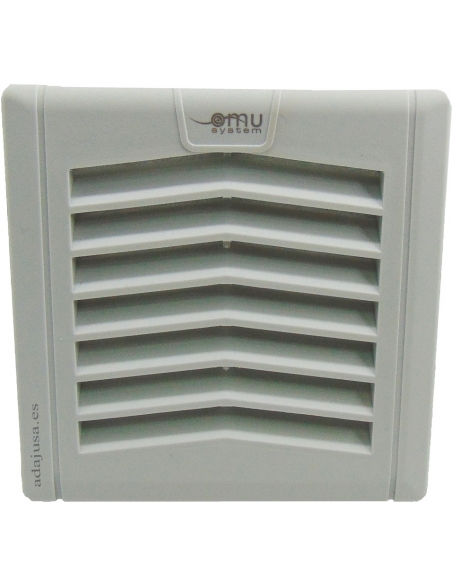

Ventilation grille with filter 120x120mm

€5.63 Tax included

4.58 tax excl.

KSZ-120

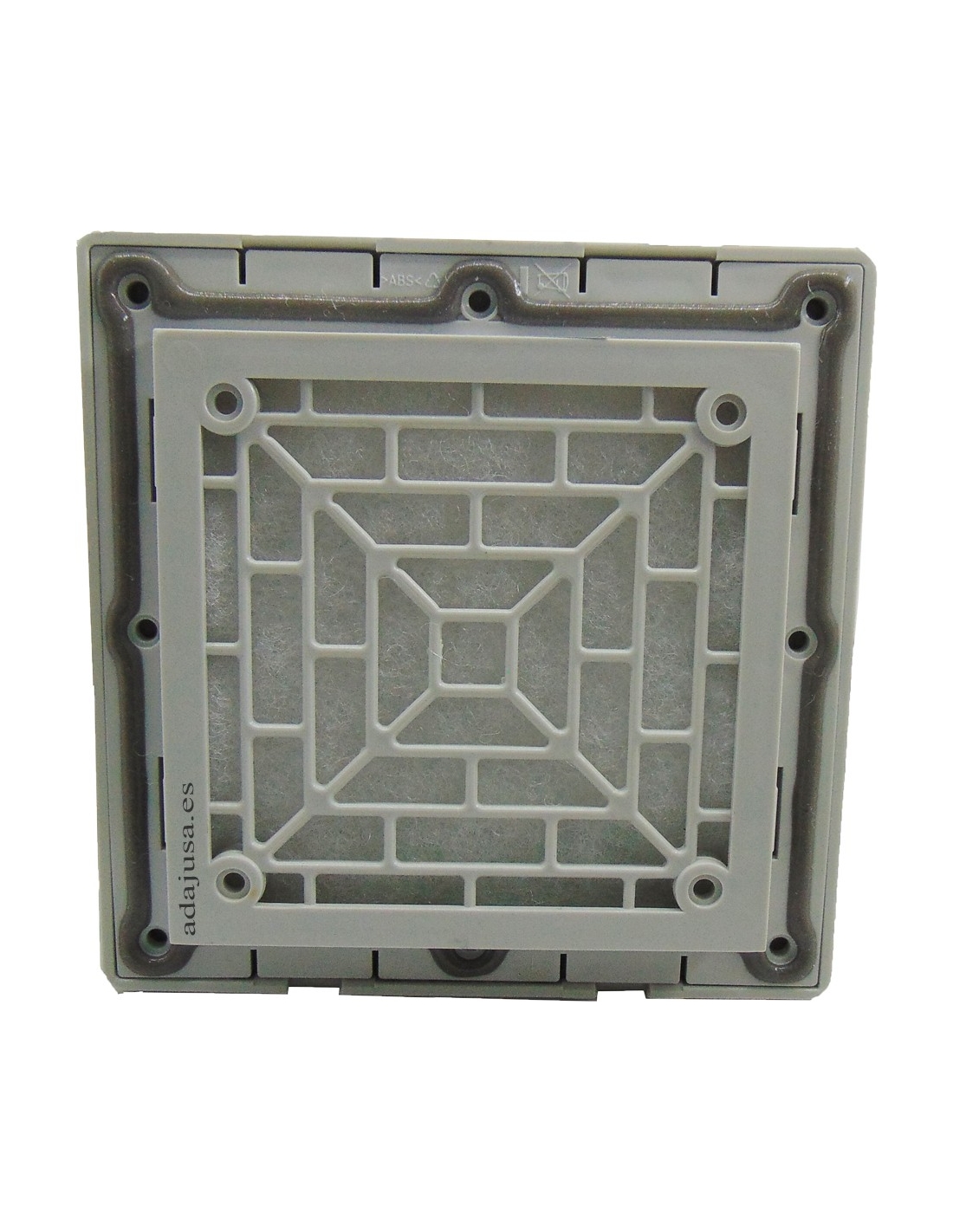

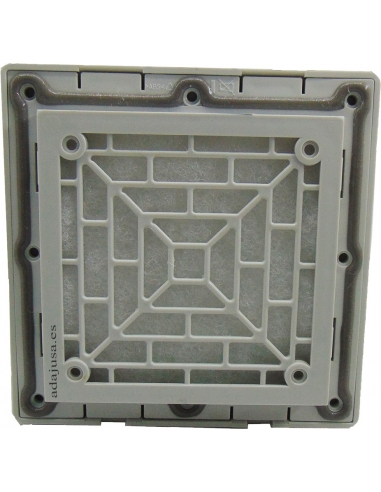

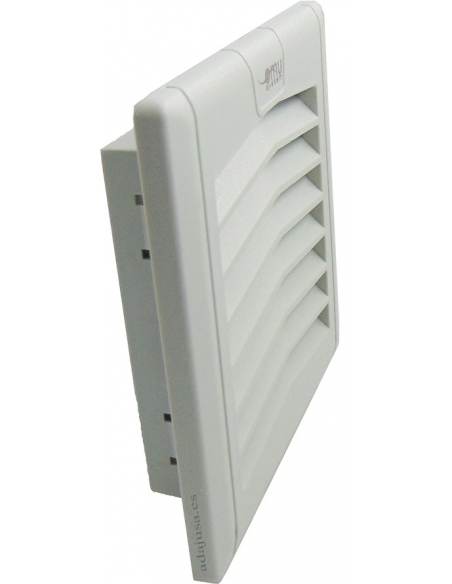

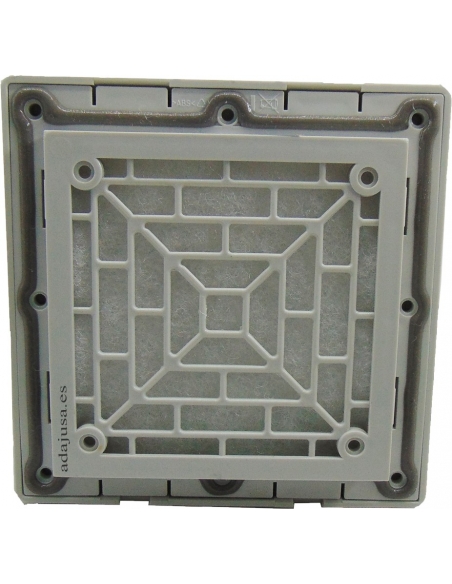

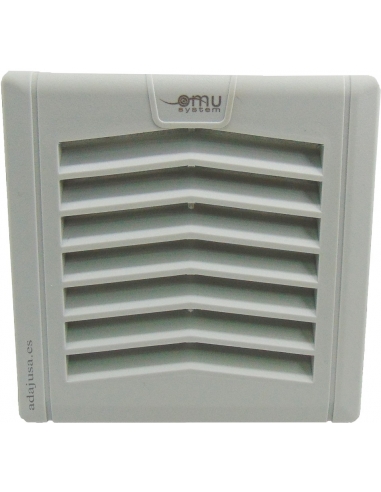

Grille with 120x120mm ventilation filter. Gray.

Reference: KSZ-120


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Grille with filter for ventilation in electrical and electronic cabinets. Made of plastic material (according to UL94 VO), gray color.

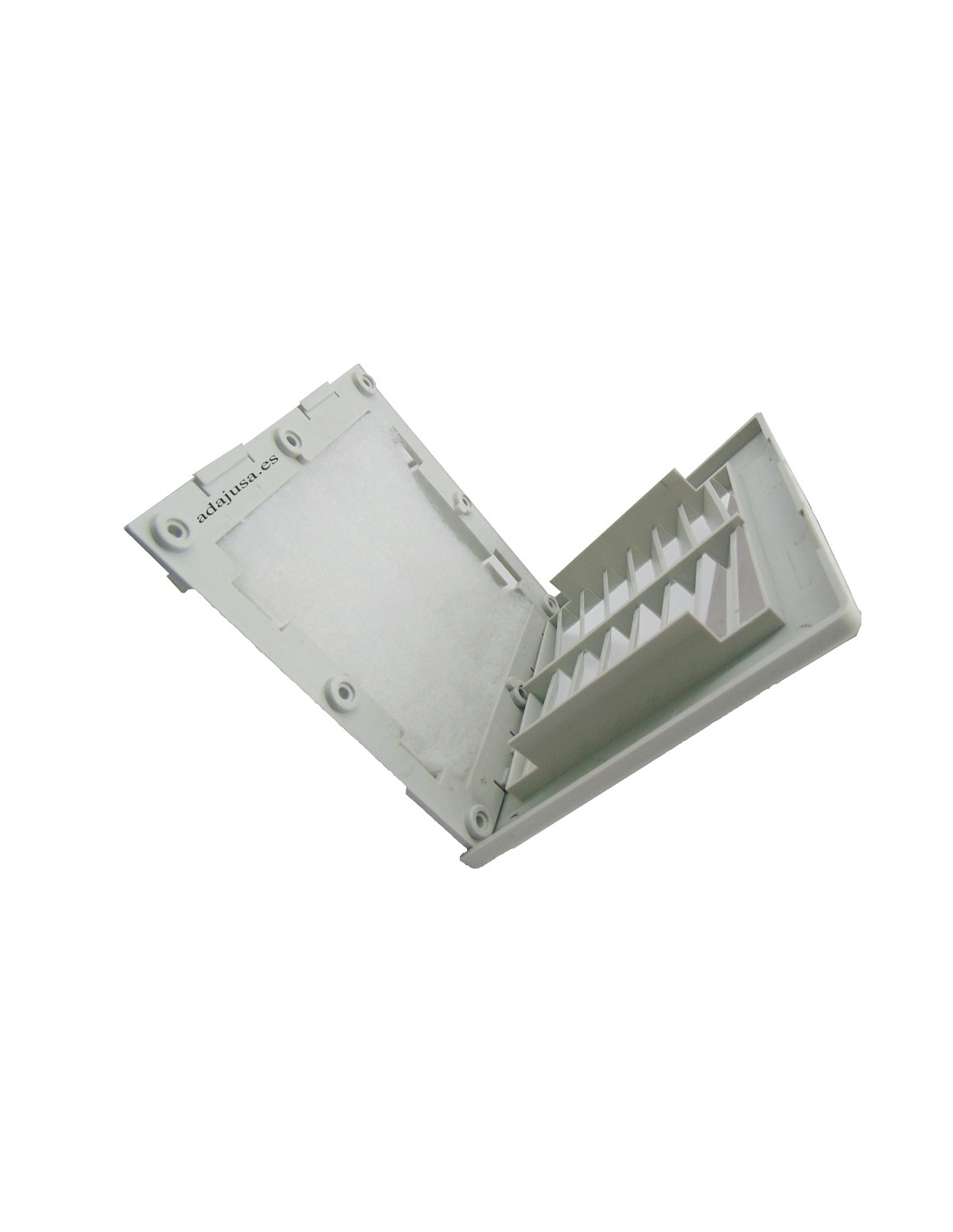

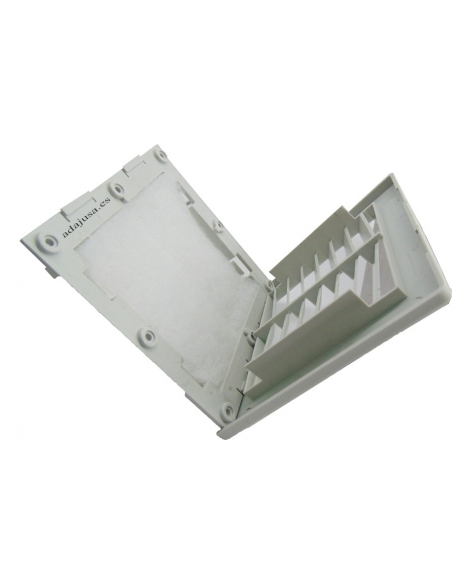

The exterior dimensions of the grate are 120x120mm, allowing front opening for maintenance of the filter element.

This type of grille with filter is used to provide an optimal climate in electrical and electronic cabinets. The temperature inside the cabinet can be reduced by facilitating the exit of hot air to the outside, avoiding the formation of hot air zones inside the electrical and electronic cabinets, protecting and increasing the useful life of the electrical and electronic components and avoiding overheating. The filter prevents impurities from entering the interior of the cabinet.

The filter is made of synthetic material and must be cleaned and replaced depending on the accumulated dirt and operating time. A dirty filter reduces the efficiency of the ventilation system.

Main technical characteristics:

  • Supplier/Manufacturer: Mixvil/OMU
  • Reference: KSZ-120
  • Exterior dimensions: 120 x 120mm
  • Cutting dimensions 92 x 92mm
  • Plastic material: self-extinguishing ABS, in accordance with UL94 VO
  • Filter material: reusable, self-extinguishing synthetic fiber (class F1)
  • Operating temperature: -40ºC to +70ºC
  • Protection: IP54
  • Color: Gray RAL7035
  • Fastening with 4 screws


A = 120mm


Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Buongiorno, a queste griglie posso essere fissate le ventole
Answer

Grazie per la sua richiesta.
Queste griglie di ventilazione con filtro non sono progettate per il fissaggio diretto di ventole.
Si tratta di un accessorio passivo destinato esclusivamente alla protezione e ventilazione naturale del quadro elettrico o dell’armadio.

Per l’installazione di una ventola è necessario utilizzare una unità di ventilazione specifica, già predisposta per il montaggio del motore.

Rimaniamo a disposizione per qualsiasi altra informazione.

Cordiali saluti,
Adajusa

Gabriele impianti on 09/02/2025 09:35:22

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Chassis 104 modules 4 rows 800x600 Sheet metal - ASJD Chassis 104 modules 4 rows 800x600 Sheet metal - ASJD 2
  • -25%
Metal cabinets and envelopes

Chassis 104 modules 4 rows 800x600 Sheet metal

Tibox
500CHARM8060R
€103.35 (€84.02 tax excl.) €137.80
Sheet metal front chassis for distribution cabinets . 104-module front panel in 4 rows, used to divide and insulate the front of the cabinets. Cabinet dimensions: 800x600mm. ( Cabinet not included). Minimum cabinet depth: 250mm. Number of modules: 104 (4x26). Note: The wardrobe is not included in the supply, it must be purchased separately....
Chassis 78 modules 3 rows 800x600 Sheet metal - ASJD Chassis 78 modules 3 rows 800x600 Sheet metal - ASJD 2
  • -25%
Metal cabinets and envelopes

Chassis 78 modules 3 rows 800x600 Sheet metal

Tibox
500CHARM08060
€102.68 (€83.48 tax excl.) €136.91
Front chassis for sheet metal distribution cabinets. Front panel of 78 modules in 3 rows, used to divide and provide insulation of the front of the cabinets. Cabinet dimensions: 800x600mm. (cabinet not included). Minimum cabinet background: 250mm. Number of modules: 78 (3x26). Note: The cabinet is not included in the supply, it must be purchased...

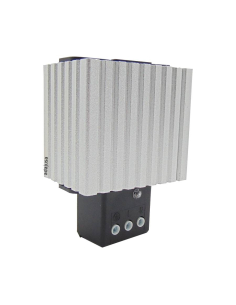

Heating resistors PTC GHT 030-B
