MCB circuit breaker 3 poles 25A (3x25A) Curve C...

MCB circuit breaker 3 poles 25A (3x25A) Curve C - LS

Name: MCB circuit breaker 3 poles 25A (3x25A) Curve C - LS
Brand: LS Electric
SKU: BKJ63N3PC25A
Price: 17.3514 EUR
Availability: OutOfStock

€17.35 Tax included

€14.34 tax excl.

MCB circuit breaker 3 25a Curve C, for protection against short circuits and overloads in three-phase installations. With an breaking capacity of 6000A.

Reference: BKJ63N 3P C25A

Diagrama magnetotérmico 3 polos

Logotipo LS Industrial Systems

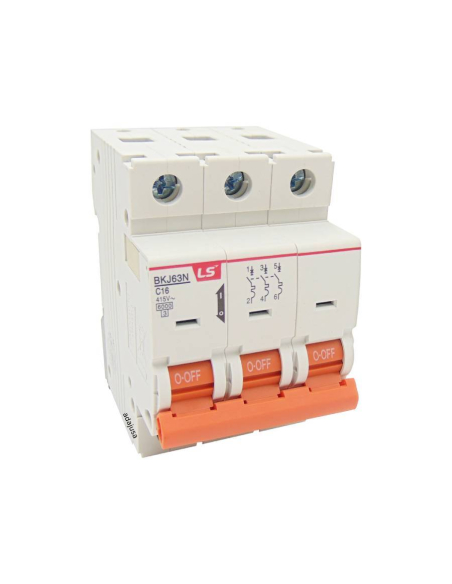

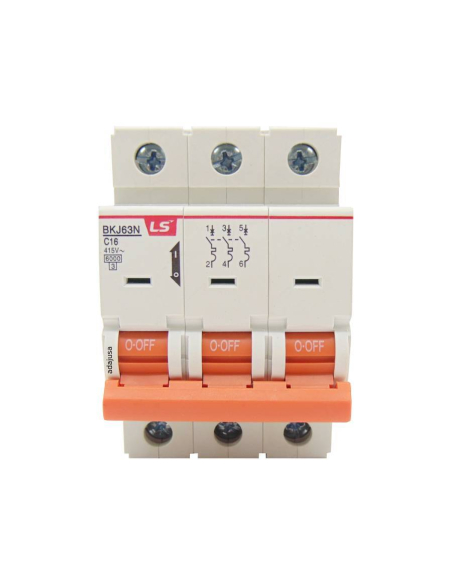

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Out of stock

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

MCB circuit breaker 3 poles 25A curve C, for protection against short circuits and overloads in installations and three-phase elements. High cutting power assigned, 6000A according to IEC 60898-1.

Ideal for use in both domestic or industrial installations as well as in machine automation cabinets.

High reliability and performance, allowing a high number of duty cycles.

Wide range of accessories available for these MCB circuit breakers.

Main features of MCB circuit breaker:

Manufacturer/Supplier: LS (LG Industrial Systems)
Reference: BKJ63N 3P C25A
Nominal MCB circuit breaker intensity: 25A
Number of poles: 3 (3x25A)
Use of MCB circuit breaker: domestic, tertiary and industrial sector
MCB circuit breaker cutting power: 6000A
Operating voltage: 230/400Vac 50/60Hz
Shooting curve: C
Mechanical life: >6000 operations
Regulations: IEC60898-1
Marking: CE
Allows the use of pin-like connection combs
Connection capacity: 25mm2 cable
Width: 3 modules (3x17.8mm)

Material for professional use, install in compliance with the regulations in force at the installation site.
