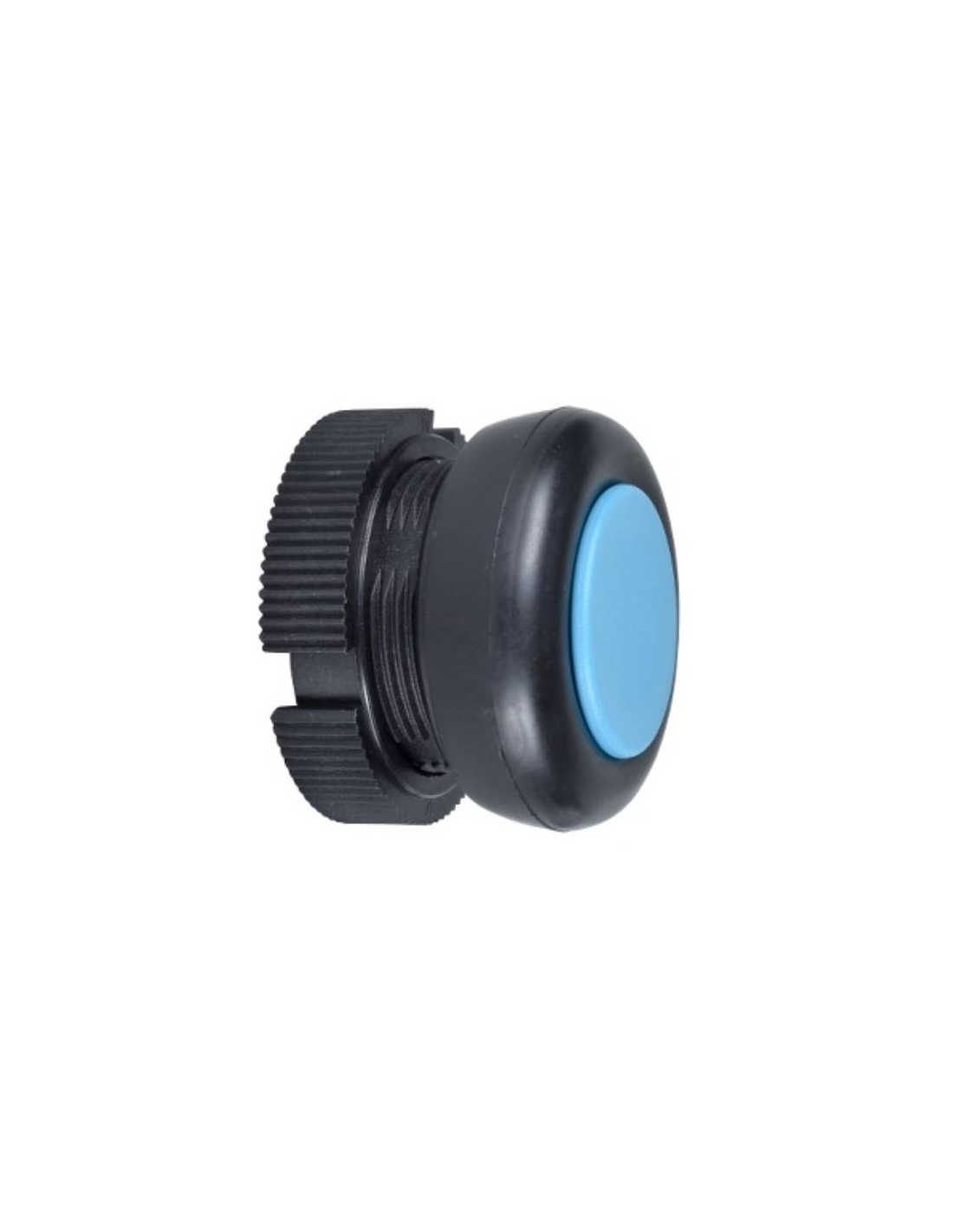

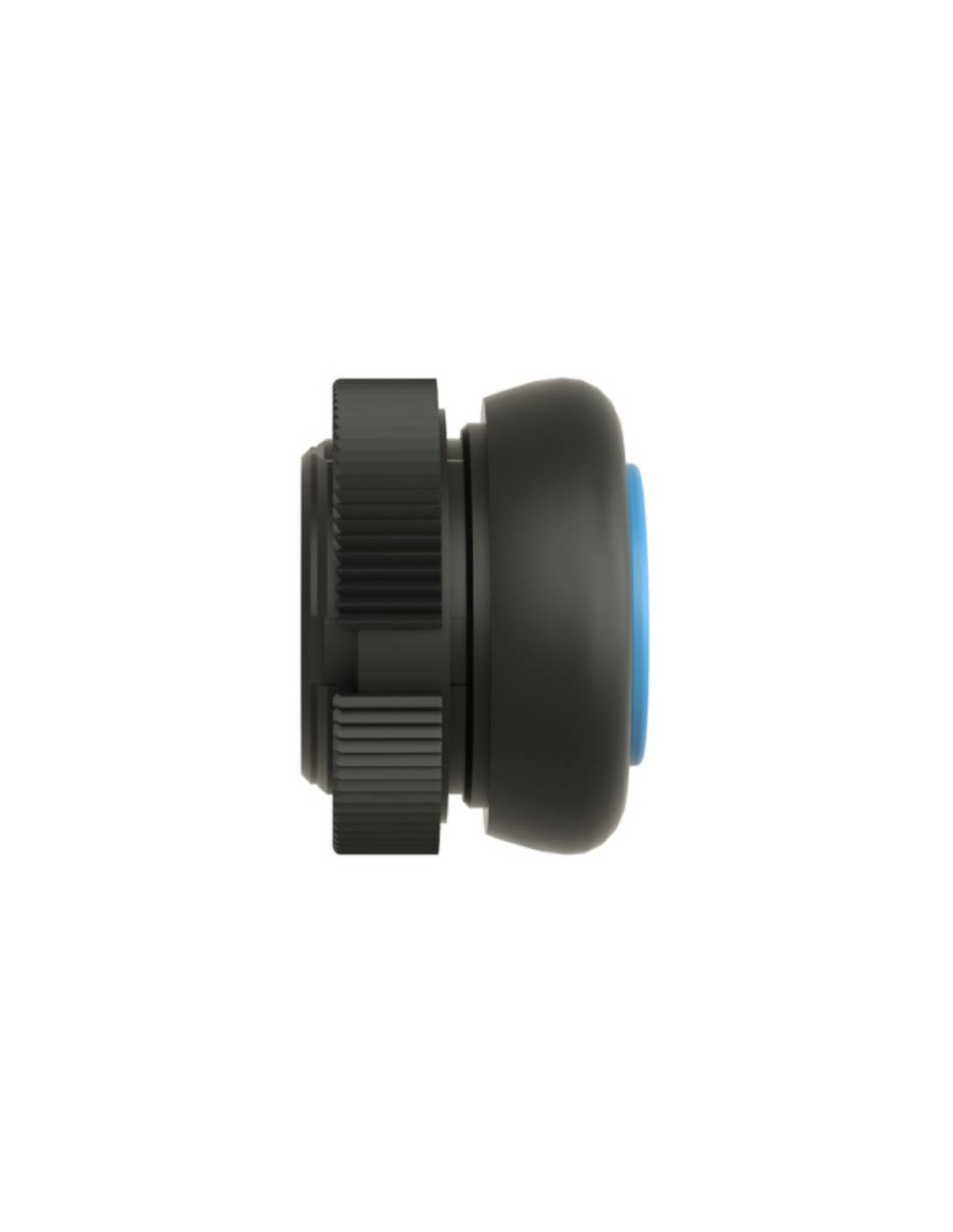

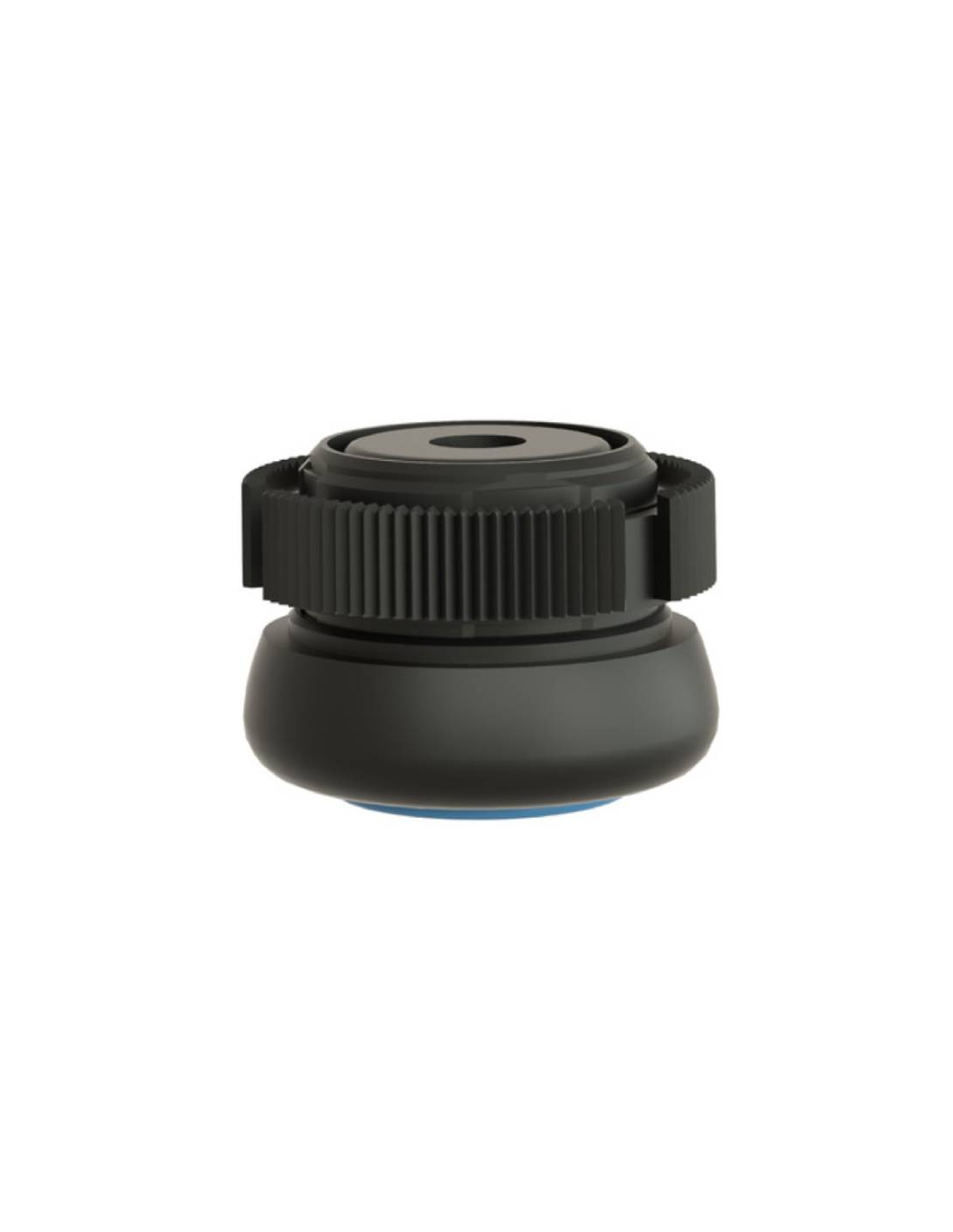

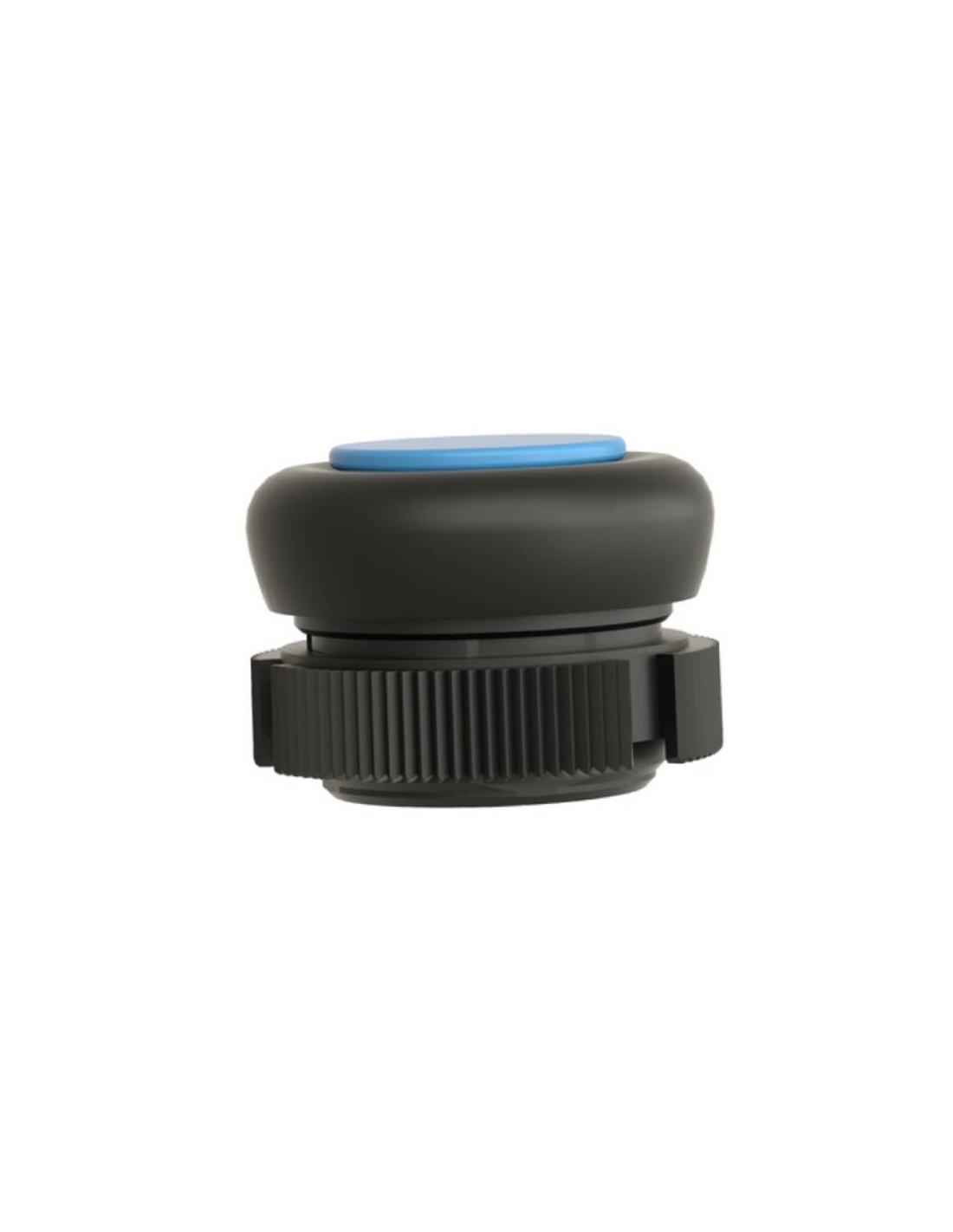

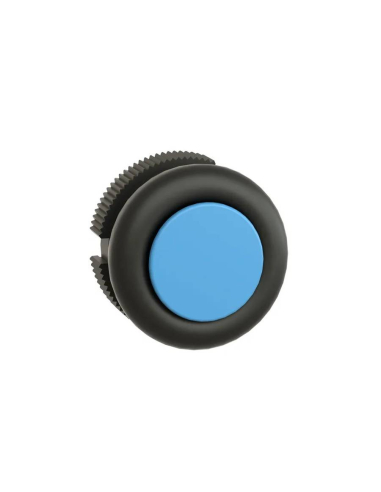

round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER
round head for blue pushbutton - SCHNEIDER

round head for blue pushbutton - SCHNEIDER

€3.87 Tax included

€3.15 tax excl.

round blue pushbutton head, spring return. Suitable for front mounting on pendant pushbutton boxes and can be combined with the HARMONY XAC series of contact blocks.


Reference: XACA9416




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


round head in blue for push buttons. Capped head, works with a spring/impulse return mechanism.

Suitable for front mounting on Schneider HARMONY XAC series pendant control boxes and combinable with the range of contact blocks of the same series, allowing it to perform a wide variety of control functions.

Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XACA9416
  • HARMONY XAC SERIES
  • Operator Profile: Yellow flush, unmarked
  • Operator Type: Spring Return
  • Operating temperature: -40…70C
  • Overvoltage category: Class II according to IEC 61140
  • IP protection class: IP65 according to IEC 60529
  • IK protection class: IK08 according to IEC 62262
  • Weight: 0.01kg
  • Regulations: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60204-32, UL 508








For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
