Racor "Y" input s10 output 8
Racor "Y" input s10 output 8

Y fitting inlet diameter 10 outlet diameter 8 technopolymer - Metal Work

€5.67 Tax included

4.61 tax excl.

2L23306

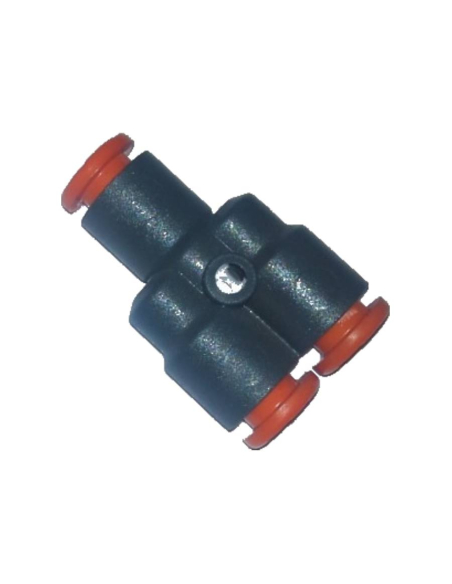

Racor "Y" automatic intermediate, tube input Ø10mm and tube outputs Ø8mm, quick connection. Made of technopolymer.
Reference: 2L23306

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate automatic "Y" fitting, tube inlet 10mm and output tubes 8mm, quick connection for applications in pneumatic and vacuum systems. Made of technopolymer.

specifications:

  • Manufacturer: Metal Work:
  • Manufacturer's reference: 2L23306.
  • Tube diameter: 10mm-8mm.
  • Material: technopolymer.
  • Fluid: Empty- Compressed air.
  • Pressure range: -0.99 to 12 bar.
  • Temperature range: -20oC to +60oC.

Dimensiones racores neumáticos Y asimetricos

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Intermediate Y fitting 3/8 tube diameter 8mm Series 50000 - Aignep | ADAJUSA
Intermediate "Y" fittings

Intermediate Y fitting 3/8 tube diameter 8mm Series 50000 - Aignep

Aignep
50326838
€8.36 (€6.80 tax excl.)
Intermediate automatic Y fitting with 3/8 thread and 8mm diameter tube with gasket , made of chrome-plated brass . A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .Series: 50000Reference: 50326 8 3/8 Representative image for illustrative purposes, the item...
Y side fitting 1/8 tube diameter 6mm technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Y side fitting 1/8 tube diameter 6mm technopolymer - Metal Work

Metal Work
2L25004
€6.16 (€5.01 tax excl.)
1/8" male thread Y side fitting for 6mm diameter tube, made of technopolymer . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L25004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Double Y fitting inlet 1/8 and outlet diameter 4mm Series 55000 - Aignep| ADAJUSA
Intermediate "Y" fittings

Double Y fitting inlet 1/8 and outlet diameter 4mm Series 55000 - Aignep

Aignep
55345418
€5.39 (€4.38 tax excl.)
Automatic intermediate double "Y" fitting with 1/8" male cylindrical thread, with seal and 4mm tube outlets , made of technopolymer and chrome-plated brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 55000 Reference: 55345 4 1/8 Representative...
Intermediate Y fitting tube 12 with adapter 12 technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Intermediate Y fitting tube 12 with adapter 12 technopolymer - Metal Work

Metal Work
2L24006
€9.96 (€8.10 tax excl.)
Automatic intermediate "Y" fitting for Ø 12mm tube with Ø 12mm adapter, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L24006 Representative image for illustrative purposes, the item supplied will correspond to...
Double Y fitting 1/8 inlet and 6mm diameter outlet technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Double Y fitting, 1/8 inlet and 6mm diameter outlet, technopolymer - Metal Work

Metal Work
2L43008
€8.88 (€7.22 tax excl.)
Automatic intermediate double "Y" fitting with 1/8" male cylindrical thread and 6mm tube outlet, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L43008 Representative image for illustrative purposes, the item...
Y male fitting 1/4 tube diameter 10mm technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Y male fitting 1/4 tube diameter 10mm technopolymer - Metal Work

Metal Work
2L23413
€8.43 (€6.85 tax excl.)
Automatic male Y fitting with 1/4 thread and 10mm diameter tube with seal , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L23413 Representative image for illustrative purposes, the item supplied will...
Intermediate Y fitting 1/8 tube diameter 6mm Series 50000 - Aignep | ADAJUSA
Intermediate "Y" fittings

Intermediate Y fitting 1/8 tube diameter 6mm Series 50000 - Aignep

Aignep
50326618
€5.44 (€4.42 tax excl.)
Intermediate automatic Y fitting with 1/8 thread and 6mm diameter tube with gasket , made of chrome-plated brass . A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 50000 Reference: 50326 6 1/8 Representative image for illustrative purposes, the...
Intermediate Y fitting 1/2 pipe diameter 12mm Series 55000 - Aignep: ADAJUSA
Intermediate "Y" fittings

Intermediate Y-connector 1/2 pipe diameter 12mm Series 55000 - Aignep

Aignep
553251212
€5.01 (€4.07 tax excl.)
Intermediate automatic Y-connector with 1/2 thread and 12mm diameter tube with gasket, made of technopolymer and chrome-plated brass.Veryefficientconnection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 50325 12 1/2 Representative image for illustrative...
Double Y fitting inlet diameter 6mm and outlet 4mm Series 55000 - Aignep: ADAJUSA
Intermediate "Y" fittings

Double Y-connector inlet diameter 6mm and outlet diameter 4mm Series 55000 - Aignep

Aignep
5533046
€4.51 (€3.67 tax excl.)
Intermediate automatic double Y-connector, inlet pipe diameter 6mm and outlet pipe diameter 4mm, made of technopolymer.Veryefficientconnection simple allowing reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55330 4 6 Representative image for illustrative purposes, the item...
Intermediate Y fitting tube 10 with adapter 10 Series 55000 - Aignep | ADAJUSA
Intermediate "Y" fittings

Intermediate Y fitting tube 10 with adapter 10 Series 55000 - Aignep

Aignep
553151010
€4.81 (€3.91 tax excl.)
Intermediate automatic "Y" fitting for Ø 10mm tube with Ø 10mm adapter, technopolymer body and acetal resin tube extraction ring. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Series: 55000 Reference: 55315 10 10 Representative image for illustrative...
Y male fitting 3/8 tube diameter 8mm technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Y male fitting 3/8 tube diameter 8mm technopolymer - Metal Work

Metal Work
2L23412
€7.01 (€5.70 tax excl.)
Automatic male Y fitting with 3/8 thread and 8mm diameter tube with seal , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L23412 Representative image for illustrative purposes, the item supplied will correspond...
Intermediate Y fitting tube 6 with adapter 6 technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Intermediate Y fitting tube 6 with adapter 6 technopolymer - Metal Work

Metal Work
2024003
€2.71 (€2.20 tax excl.)
Automatic intermediate "Y" fitting for Ø 6mm tube with Ø 6mm adapter, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2024003 Representative image for illustrative purposes, the item supplied will correspond to...
Y male fitting 3/8 tube diameter 10mm technopolymer - Metal Work | ADAJUSA
Intermediate "Y" fittings

Y male fitting 3/8 tube diameter 10mm technopolymer - Metal Work

Metal Work
2L23415
€8.62 (€7.01 tax excl.)
Automatic male Y fitting with 3/8 thread and 10mm diameter tube with seal , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L23415 Representative image for illustrative purposes, the item supplied will...

Customers who bought this product also bought:

Flexible polyurethane Pneumatic tube PU98 Blue 8x10 | ADAJUSA | price
Special material, PayPal and cash on delivery are not accepted
Flexible polyurethane linear tube

Pneumatic tube polyurethane tube 10x8mm blue - cut by meter

Aignep
PU8X10-m
€1.01 (€0.82 tax excl.)
polyurethane Pneumatic tube , size 10x8mm available in blue . Flexible linear tube with outer diameter 10mm and inner diameter 8mm. Sale by meters.Tube made of PU98 polyurethane with an ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and...
Straight automatic straight fitting 1/4 pipe 10mm Series 55000 - Aignep| ADAJUSA
Straight fittings

Straight automatic straight fitting 1/4 pipe 10mm Series 55000 - Aignep

Aignep
50020N1014
€1.88 (€1.53 tax excl.)
Cylindricalstraight male fitting with 1/4 thread for 10mm tube with O-ring, made of chrome-plated brass and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 50020N 10 1/4 Representative...
Intermediate straight fittings

Intermediate fitting diameter 10 mm technopolymer - Metal Work

Metal Work
2019005
€2.63 (€2.14 tax excl.)
Straight intermediate fitting for outer tube Ø10mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019005 Representative image...
Conical male adjustable elbow fitting 1/8 6mm tube with INOX gasket Series 60000 - Aignep | ADAJUSA
Conical male adjustable elbow fitting with O-ring - Series 60000 INOX

Conical male adjustable elbow fitting 1/8 6mm tube with INOX gasket Series 60000 - Aignep

Aignep
60115X618
€48.73 (€39.62 tax excl.)
1/8 conical male adjustable elbow fitting for 6mm tube, body made of AISI 316 L STAINLESS steel with food grade FKM gasket. Fittings suitable for corrosive fluids and aggressive environments; They are widely used in sectors such as the agri-food industry, chemical, petrochemical, pharmaceutical, medical, compressed air, vacuum, automation in the presence...

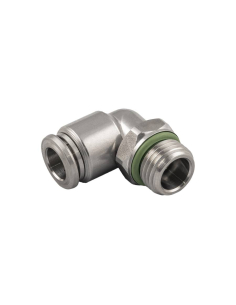

Conical male adjustable elbow fitting 1/4 10mm tube with INOX gasket Series 60000 - Aignep | ADAJUSA
Conical male adjustable elbow fitting with O-ring - Series 60000 INOX

Conical male orientable elbow fitting 1/4 10mm tube with INOX gasket Series 60000 - Aignep

Aignep
60115X1014
€71.07 (€57.78 tax excl.)
1/4 conical male adjustable elbow fitting for 10mm tube, body made of AISI 316 L STAINLESS steel with food grade FKM gasket. Fittings suitable for corrosive fluids and aggressive environments; They are widely used in sectors such as the agri-food industry, chemical, petrochemical, pharmaceutical, medical, compressed air, vacuum, automation in the presence...

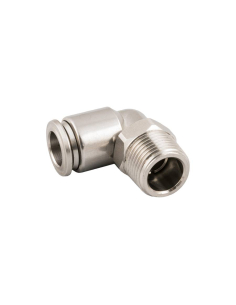

Conical male adjustable elbow fitting 1/4 tube 8mm INOX Series 60000 - Aignep | ADAJUSA
