6mm pipe tee with 4mm center adapter 55000...
6mm pipe tee with 4mm center adapter 55000 series - Aignep

6mm pipe tee with 4mm center adapter 55000 series - Aignep

€3.42 Tax included

€2.83 tax excl.

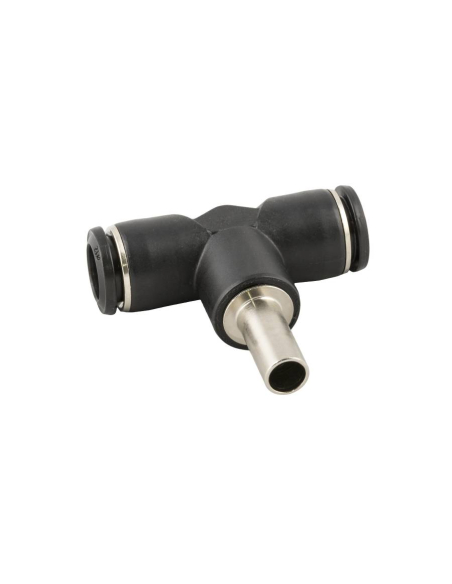

Automatic "T" fitting for 6mm O.D. pipes with central adapter diameter 4mm. Quick connection, made of technopolymer and nickel-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55237 6 4




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Automatic "T" fitting for 6mm O.D. pipes with central adapter diameter 4mm. Quick connection, made of technopolymer and nickel-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. It has a clamping spring, which clamps the tube without deforming or deforming it, thus simplifying the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55237 6 4
  • Outer tube diameters: 6mm and 6mm
  • Adapter diameter: 4mm
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

55237dimensiones
55237td


Material for professional use, install in compliance with the regulations in force at the place of installation.
