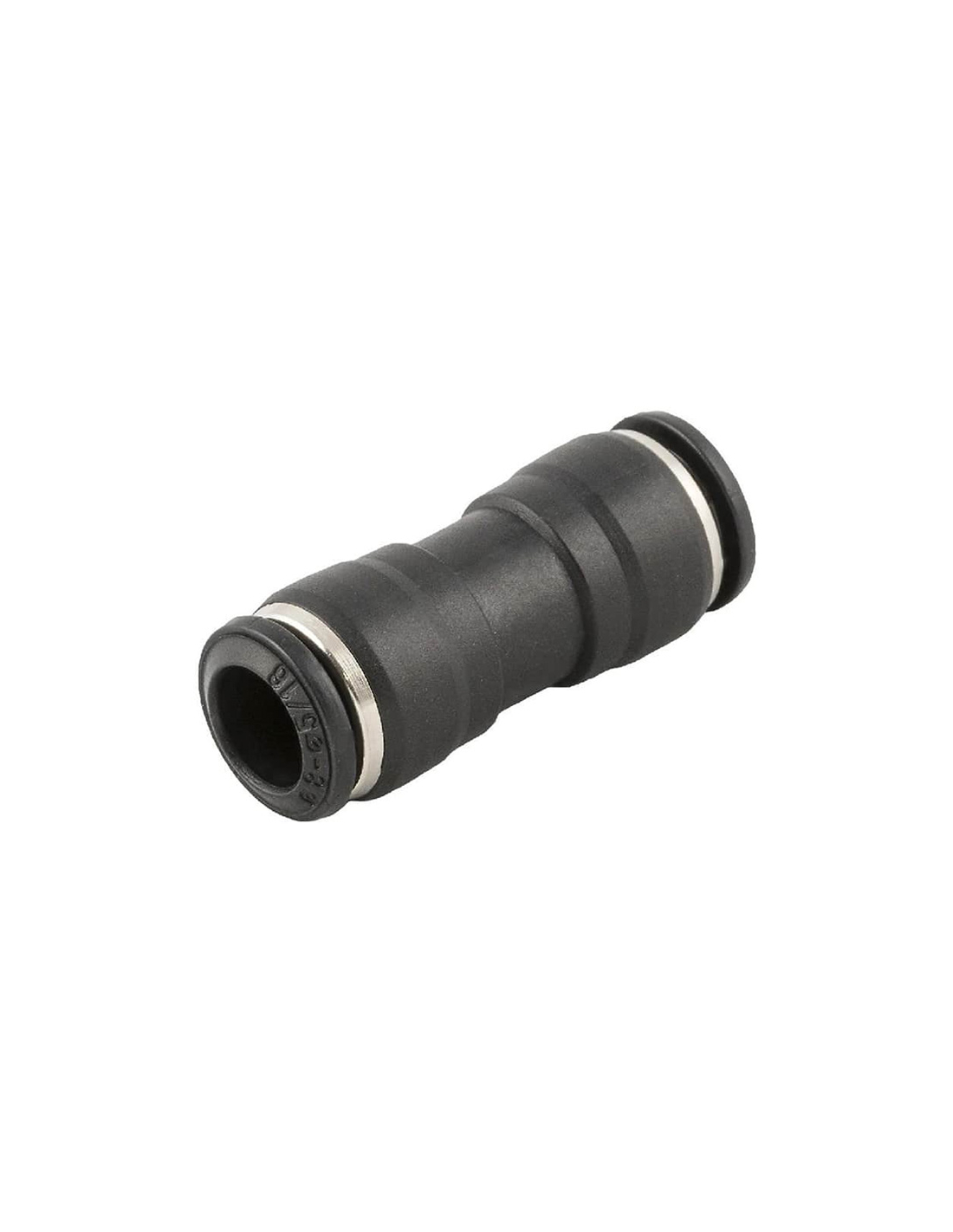

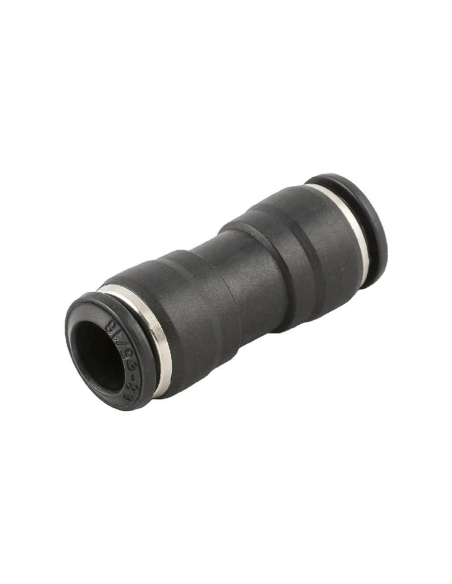

Intermediate straight fitting diameters 10mm - 8mm 55000 Series - Aignep

Name: Intermediate straight fitting diameters 10mm - 8mm 55000 Series - Aignep
Brand: Aignep
SKU: 55040108
Price: 1.8876 EUR
Availability: InStock

€1.89 Tax included

€1.56 tax excl.

Intermediate straight fitting for 10mm and 8mm diameter tubes, manufactured in technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55040 10 8

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Intermediate straight fitting for 10mm and 8mm diameter tubes, made of technopolymer and the tube extraction ring in acetal resin. The connection is very efficient simple and allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming or deforming it, thus simplifying the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

Manufacturer: Aignep.
Part number: 55040 10 8
Outer tube diameter: 10mm
Outer tube diameter: 8mm
Fluid: vacuum, compressed air and water
Material: technopolymer
Tube puller ring: acetal resin
Seal of retention: NBR
Clamping spring: stainless steel
Pressure: -0,99 bar to 20 bar
Working temperature: -20°C to +80°C
Thread standard
- Gas conical according to ISO 7.1, BS 21,DIN 2999
- Gas cylindrical according to ISO 228 Class A
- Metric according to ISO R/262

50040 Esq

55040Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
