Halogen-free 3x2.5mm hose
Halogen-free 3x2.5mm hose

Halogen-free 3x2.5mm hose

Special material, PayPal payment not accepted
€3.40 Tax included

€2.81 tax excl.

Electric hose of 3x2,5mm2 section, halogen-free, green, for use in public concurrency premises. Designed under CPR regulations (EN 50575)

Series: TopFree ZH RZ1-K (AS) 3G2.5

Color: Green.

Section: 2.5mm2.

Price per meter
Material cut to size, no return or cancellation of the order is allowed

logotipo_top_cable

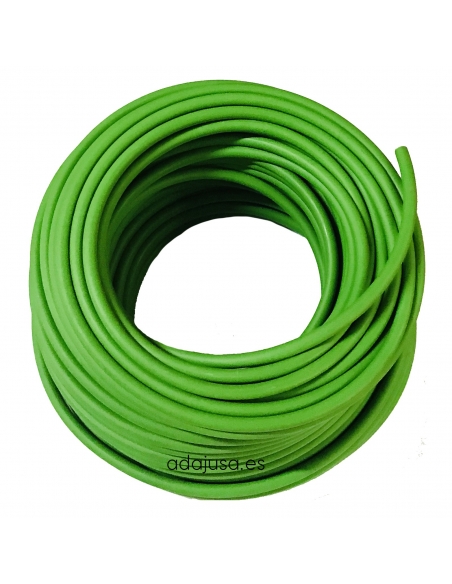

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Flexible hose of 3 conductors 2.5mm2 section each, Polyolefin insulator free of halogens in green.

The Topfree ZH RZ1-K (AS) multiconductor cable is a halogen-free, low-smoke, non-fire propagating cable. Its use is mandatory in public facilities such as: hospitals, schools, museums, airports, bus stations and commerce in general.

Drivers:

Each conductor is made of electrolytic copper, flexible class 5, according to UNE 60228 and IEC60228, with individual insulation in crosslinked polyethylene (XLPE), colors:

  • Blue.
  • Brown.
  • Grey.
  • Yellow/Green.

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed

Technical details:

  • Manufacturer: Top Cable.
  • Series: TopFree ZH RZ1-K (AS).
  • Conductor: electrolitic copper class 5 (flexible) according to UNE-UN 60228.
  • Insulation: Halogen-free ignited polyolefin in green.
  • Nominal section per conductor: 2.5mm2.
  • Rated voltage: 0.6/1kV.
  • Insulation of each individual conductor: Crosslinked polyethylene (XLPE).
  • Thermal Features:
    • Temp. driver's maximum: 90oC.
    • Temp. short-circuit maximum: 250oC (maximum 5 seconds).
    • Temp. minimum service: -40oC (static with protection).
  • Features against fire:
    • Non-flame propagator according to UNE-EN 60332-1 and IEC 60332-1.
    • Non-fire protection according to UNE-EN 60332-3, IEC 60332-3 and EN 50399.
    • Halogen-free according to UNE-EN 60754 and IEC 61034.
    • CPR Fire Ratio: E according to EN 50575.
  • Outside diameter: 9.8mm.
  • Impact resistance: AG2 Medium.
  • Curvature radius: 5 x outer diameter.
  • Chemical Attack Resistant: Good
  • UV resistance: UNE 211605.
  • Presence of water: AD7 immersion.
  • Installation conditions:
    • On the air.
    • Buried.
    • Tubing.
  • Design: According to CPR standard (EN 50575).
    Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
    ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Industrial use.
    • Public concurrency premises.
  • Weight: 0.151 kg.



Material for professional use, install in compliance with the regulations in force at the installation site.
