Cap from friction SF2 455030C type PAP 4530 P20 - ADAJUSA

Hollow ball bearing SF2 455030C type PAP 4530 P20 - ISB

Name: Hollow ball bearing SF2 455030C type PAP 4530 P20 - ISB
Brand: ISB
SKU: SF2455030C
Price: 4.1866 EUR
Availability: InStock

€4.19 Tax included

€3.46 tax excl.

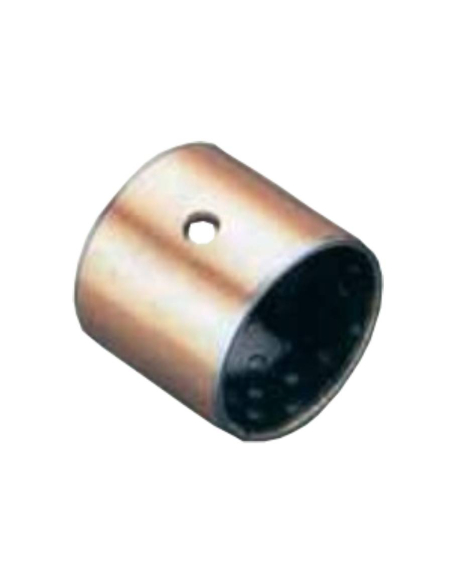

SF2 45x50x30mm PAP P20 honeycombed bushing, polyacetal resin (POM) interior with a sheet steel base on which a thick porous layer of bronze is sintered. The finish of the outer steel frame is copper plated.

Used in mining and metallurgy, stamping presses, hydroelectric machinery, for cold rolling of steel and many other applications that require periodic lubrication.

Reference: SF2455030C

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Bushings with alveolate surface, friction bushing (bearing) that has alveoli to contain and gradually release the lubricant, this characteristic means that they require little maintenance, they have a reduced friction capacity to protect the surface of the bushing.

It has an outer hole to facilitate lubrication. It is recommended to use a lithium grease.

Note: MoS2 and lithium based greases are not suitable.

As main characteristics of this type of bushings we can highlight:

Reduced maintenance, thanks to long relubrication intervals.
Good adaptability to oscillating and rotating movements
Limited wear (provided they are applied and used correctly)
water-repellent
Reduced sensitivity to edge loading
Good heat dispersion

Characteristic:

Manufacturer: ISB
Type: SF2
Reference: 455030C
Friction material: POM on porous bronze.
Outer material: Copper-plated steel armor.
Inner surface: Alveolate.
Load capacity: 70N/mm2
Temperature: -40ºC to +130ºC

Dimensions:

Inner diameter (d): 45mm
Outer diameter (D): 50mm
Length (L): 30mm
Outer hole diameter (H): 8mm

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Bushings tab

ISB bushings sheet

Download (515.95KB)
