SF1 060808C plain bearing type PAP 0608 P10 PTFE - ADAJUSA
SF1 060808C plain bearing type PAP 0608 P10 PTFE - ADAJUSA

Friction cap SF1 060808C type PAP 0608 P10 - ISB

€0.25 Tax included

€0.21 tax excl.

Self-lubricating plain bearing SF1 6x8x8mm PAP P10, PTFE interior with a sheet steel base on which a thick porous tin/bronze layer is sintered.

Used in hydraulic and mechanical cylinders, hydraulic vehicles, automobiles, motorcycles, agricultural machines, textile machines, printing machines, gymnastic apparatus and many other applications.

Reference: SF1 060808C

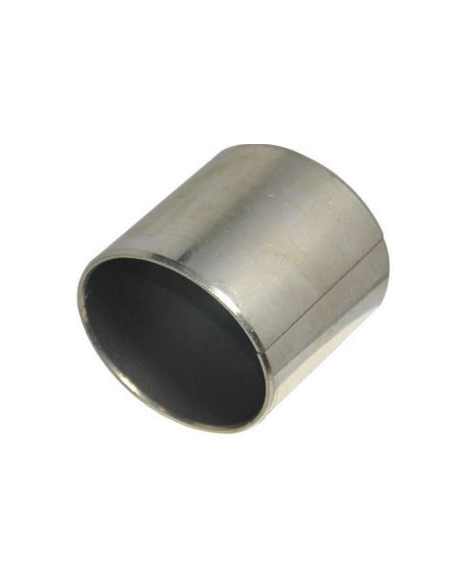

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Dry sliding bushings, self-lubricating friction bushing (bearing) without maintenance and high load capacity, both static and dynamic.
During a short break-in period, minute amounts of the PTFE material are transferred from the break-in layer to the contact surfaces. Once this transfer has taken place, the characteristic low friction and wear properties of these plain bearings are achieved.


  • Manufacturer: ISB
  • Type: SF1
  • Reference: 060808C
  • They do not need lubrication
  • High load capacity -140N/mm2
  • High slip and low static and dynamic friction coefficient
  • Good dimensional stability and thermal conductivity.
  • Inner diameter (d): 6mm
  • Outer diameter (D): 8mm
  • Length(L): 8mm
Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.


Be the first to ask a question about this product!
