4-pole differential 63A 30mA class A-APR superimmunized - Hyundai Electric

4-pole differential 63A 30mA class A-APR superimmunized - Hyundai Electric

€144.55 Tax included

€119.46 tax excl.

Three-phase class A-APR superimmunized differential 4 poles (3Poles + Neutral), 63A 30mA. It detects alternating and pulsating residual current that occurs suddenly or increases slowly in magnitude, and presents high immunity to unwanted tripping.

Circuit breaker of high immunization very suitable for installations with presence of electronic equipment such as air conditioners, LED lighting, computers, etc.


Part number: HRC63S-R4PG4063

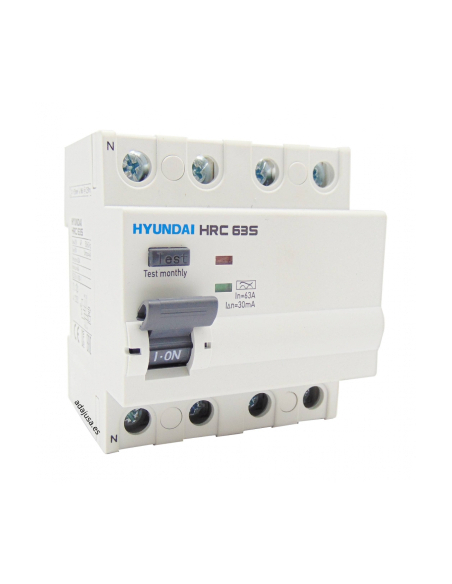

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electric differential switch 63A 30mA (0.03A) high immunization class A-APR, 4 poles (3Poles + Neutral), for protection of people against insulation / bypass problems in electrical installations or elements. For use in tertiary and industrial sectors and for loads with electronic components such as air conditioning, LED lighting, computers and peripherals, computer and server racks...

This type of differential detects alternating and pulsating residual current that occurs suddenly or increases slowly in magnitude, and presents high immunity to unwanted tripping.

Includes visual position indicator of contact red-ON, green-OFF.


Technical Features:

  • Manufacturer/Supplier: Hyundai Electric
  • Part No.: HRC63S-R4PG4063
  • Number of poles: 4 (3Poles+Neutral)
  • Class: Class A-APR Superimmunized
  • Use: Domestic, tertiary and industrial sector
  • Operating voltage: 415Vac
  • Frequency: 50/60Hz
  • Rated current (In): 63A
  • Sensitivity (IΔn): 300mA
  • Breaking capacity6kA
  • Rated closing power (Im): 500A or 10In (whichever is greater)
  • Tripping time: 1 IΔn
  • Insulation voltage (Ui): 690V
  • Electrical / Mechanical life (number of operations) Minimum: 10,000 / 20,000
  • Operating temperature: -40ºC to + 55ºC
  • Maximum terminal size: 25mm2
  • Degree of protection: IP20
  • Visual position indicator of contact: Red-ON, Green-OFF
  • Installation position: Vertical / Horizontal
  • Housing and cover: Molded thermoplastic, flame-retardant
  • Auxiliary contacts: No
  • Weight: 0.31 Kg
  • Standards: IEC/EN61008-1
  • CE Marking









Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
