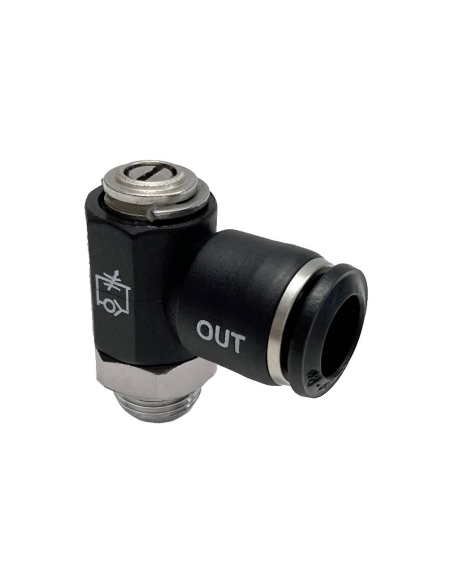

One-way adjustable Regulator with 1/4" tube...
One-way adjustable Regulator with 1/4" tube diameter adjustment screw for technopolymer cylinder - Aignep

One-way adjustable Regulator with 1/4" tube diameter adjustment screw for technopolymer cylinder - Aignep

€10.20 Tax included

€8.29 tax excl.

Adjustable one-way flow Regulator with 1/4 cylindrical thread and adjustment screw for 6mm diameter tube for mounting on the cylinder's feed opening, body and extraction ring made of technopolymer tube. Mounting on cylinder.

Series: Function
Reference: 55902 6 1/4
SCHEMEaignep
regulations


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

One-way, adjustable flow Regulator with a 1/4" cylindrical thread and O-ring seal. Its function is to regulate the piston speed in pneumatic cylinders . This model must be mounted on the cylinder's inlet. It can be manually adjusted with a screwdriver, providing a secure fit to prevent tampering.


cylinder mounting

 Regulator Features:
  • Manufacturer: Aignep
  • Reference: 55902 6 1/4
  • Working pressure bar : 1 ÷ 10
  • Operating temperature °C: -20 ÷ +80
  • Fluid: compressed air
  • Thread regulations:
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262
55902 DIMENSIONS

55902 DIMENSIONS TABLE


Professional use material, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attachments" tab.
