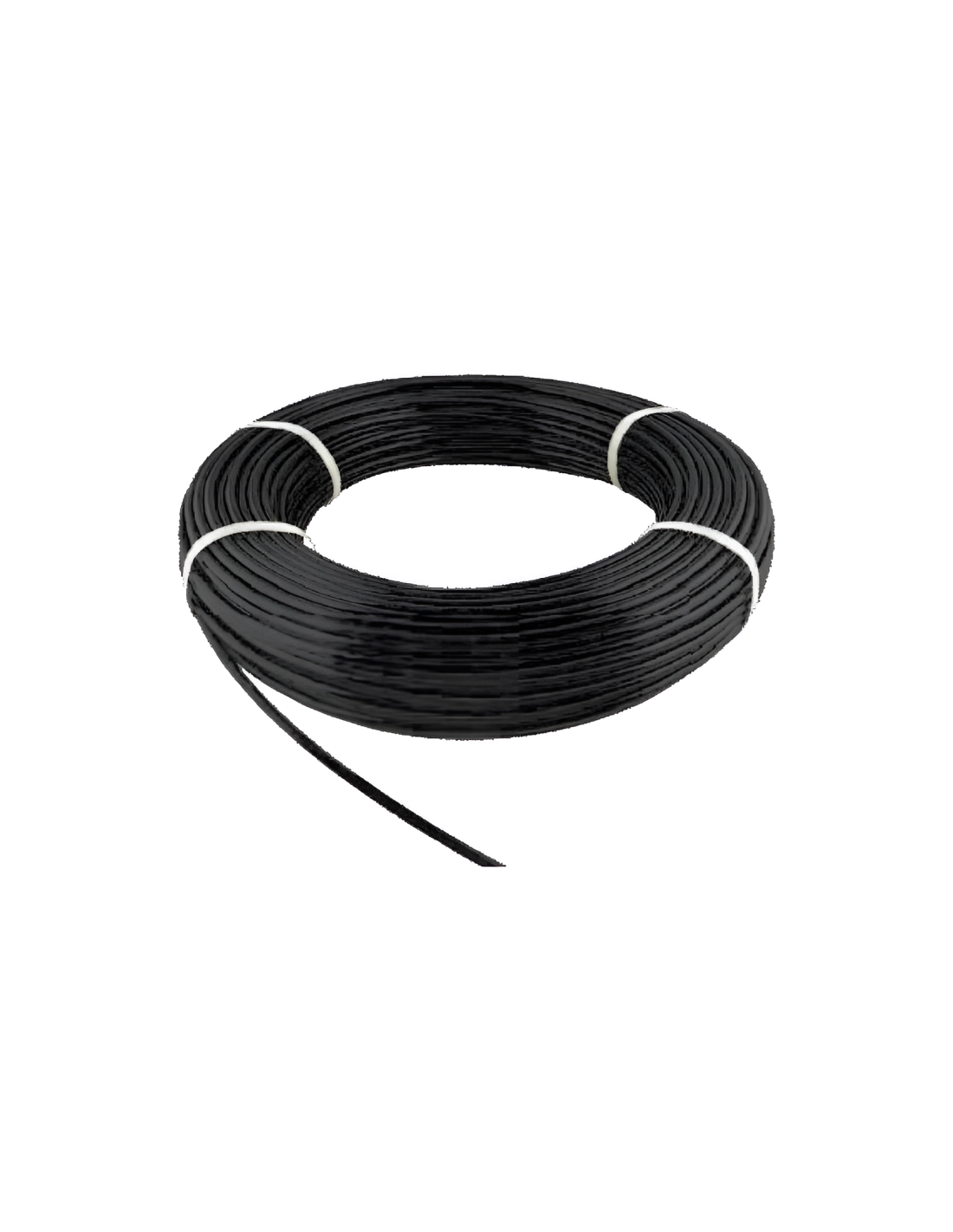

Pneumatic tube en polyurethane 4x2,5mm black 25m

Name: Pneumatic tube en polyurethane 4x2,5mm black 25m
Brand: Aignep
SKU: SCPU2,5X4X25N
Price: 9.43 EUR
Availability: BackOrder

€9.43 Tax included

7.67 tax excl.

SCPU2,5X4X25N

Pneumatic tube from polyurethane, size 4x2,5mm available in black color. Linear flexible tube with outer diameter 4mm and inner diameter 2,5mm. Box of 25 meters.

Tube made of polyurethane PU98 with ester base (hardness 52 Shore D), product of the LONGLIFE series ideal for applications with pneumatic fittings. Recommended for industrial use, agricultural industry and extreme conditions of pressure higher than 10 bar.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flexible tubing in polyurethane PU98 with ester base (hardness 52 Shore D), product of the LONGLIFE series for pneumatic applications, size 4x2,5mm. Box of 25 meters available in black color.

Tubing manufactured in polyurethane of chemical origin with flexible ester base, suitable for almost all industrial standard low pressure pneumatic applications. Especially recommended for agricultural industry and extreme pressure conditions above 10 bar. It has excellent flexibility, dimensional stability, tight bending radii and good resistance to bending, abrasion and high speed handling. It exhibits good high temperature resistance, good cold impact resistance, as well as resistance to oils, greases, oxygen and ozone.

Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, energy chains, machine tools, etc.

Characteristics:

Manufacturer: Mebra
Size: 4x2,5mm
Quantity: 25m
Color: Black
Outside diameter: 4mm
Inner diameter: 2,5mm
Thickness: 0,75mm
Minimum bending radius: 15mm
Hardness: SHORE 98 A / SHORE 49-55 D
Temperature: -40ºC to +60ºC
Working pressure (23ºC): 15bar
Burst pressure safety factor: 3:1
Tolerances
±0.05 on wall thickness
±0.05 on outer Ø, up to Ø 10
±0.10 on outer Ø, up to Ø 12
±0.5% on weight

NOTE: Not suitable for use in water and humid environments.

Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

polyurethane tube (PU98)

Download (678.73KB)
