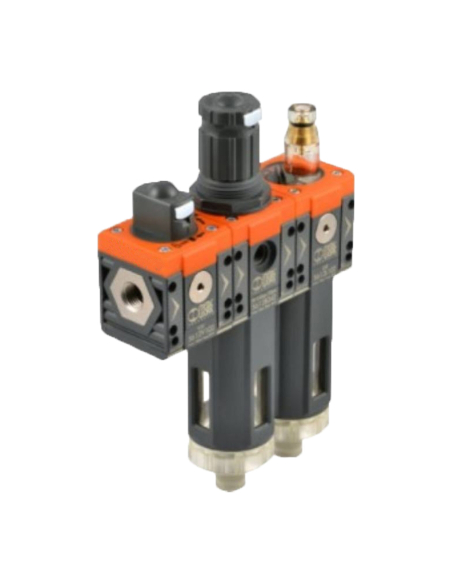

Filter group 1/8 with shut-off valve regulation 0-8 bar automatic drain Syntesi series - Metal Work

1/8 filter group with manual shut-off valve at the inlet, 1/8 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) of European manufacture.
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent resistance to corrosion. The filter unit has a 20 μm filter element,
This filtering group incorporates a manually operated shut-off valve at the inlet, which allows the machine or part of the installation in which this unit is installed to be isolated from the rest of the pneumatic network. The valve has a padlock locking system (the padlock is not included in the supply).
The type of purge is semi-automatic with condensate discharge, independent of pressure and flow.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Reference: V3V+FR+LUB SY1 1/8 20 08 RA
• Code: 5611V10B54L101
• Thread size: 1/8"
• Group Size: Size 1
• Regulation field: 0 to 8 bar .
• Maximum inlet pressure: 15 bar .
• Manual condensate drain and automatic drain when pressure is removed.
• Built-in overpressure bleed valve.
• Filtration degree: 20μm.
• Cup capacity: ^30cm3
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 350
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 1050
• Relieving discharge flow rate, at 6.3 bar (0.63 MPa; 91 psi) ( Nl/min): 70
• Flow rate of additional air intakes at 6.3 bar (Nl/min): 500 (V3V) - 500 (FR) + 450 (LUB)
• Thread size for pressure gauge: 1/8"
• Wall fixing screws: M4.
• Mounting position: Vertical.
• Working temperature: -10 to +50ºC.
• Included: full passage in discharge by zeroing the inlet pressure and unlockable knob.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
