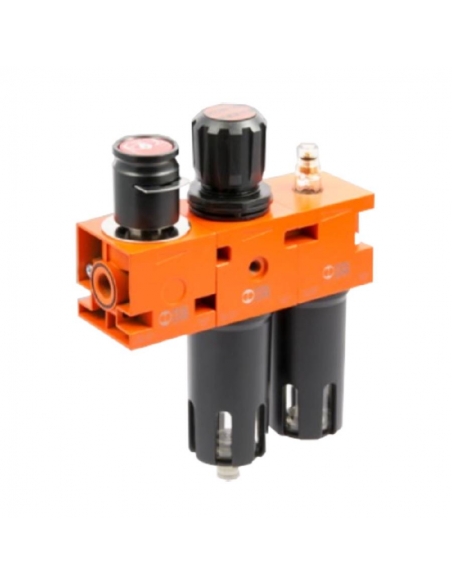

Filtering group 3/8 with shut-off valve regulation 0-12 bar semi-automatic drain New Deal series - Metal Work

€211.58 Tax included

€174.86 tax excl.

Free shipping!

Filter group 3/8  with manual shut-off valve , 3/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size and regulation range 0-12 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of aluminum and metal tanks with viewer. European manufacturing.

Series: New Deal
Reference: 1372054

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


 Filter group 3/8 with manual shut-off valve at the inlet, 3/8 maintenance unit for pneumatic applications, semi-automatic drain, compact size.
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum with excellent resistance to corrosion. The filter unit has a 20 μm filter element,
This filtering group incorporates a manually operated shut-off valve at the inlet, which allows the machine or part of the installation in which this unit is installed to be isolated from the rest of the pneumatic network. The valve has a padlock locking system (the padlock is not included in the supply).
The type of purge is semi-automatic with condensate discharge, independent of pressure and flow. Metal cups with external viewer, proportionality between lubricant quantity and flow rate, micrometric regulation.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

  • Manufacturer: Metal Work
  • Manufacturer reference: 1372054
  • Threaded connection: 3/8"
  • Adjustment range: 0÷8 - 0÷12 bar
  • Maximum inlet pressure: 18 bar .
  • Filtration degree: 20μm.
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 1000
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) ( Nl/min): 1900
  • Max temperature at 1 MPa; 10bar; 145psi: 50ºC
  • Weight: 1.8Kg
  • Wall fixing screws: M4x55
Do not take air from the manometric connections.



Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
