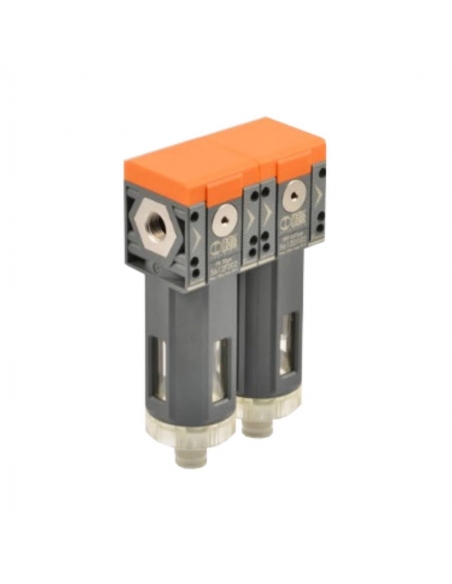

Metal filter group (Filter + Purifier) Syntesi Metal Work - ADAJUSA
Metal filter group (Filter + Purifier) Syntesi Metal Work - ADAJUSA

Pneumatic filtering and purification unit 1/8 filtering grade 5 semi-automatic purge Syntesi series - Metal Work

€107.53 Tax included

87.42 tax excl.

5611F10D101

Pneumatic filtration and purifier unit with 1/8 thread, Syntesi series, size SY1, with semi-automatic drain. Made of high-resistance technopolymer and threads on a metal support.

Reference: 5611F10D101


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic filtration and purifier unit with 1/8 thread, Syntesi series, size SY1, with semi-automatic drain. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is by means of a semi-automatic purge of condensation, independent of pressure and flow.

Characteristics of the filter group:

  • Manufacturer: Metal Work
  • Manufacturer reference : FIL+DEP SY1 1/8 05 RMSA
  • Code: 5611F10D101
  • Thread size: 1/8"
  • Filter condensate discharge: RMSA
  • Scrubber Condensation Discharge: RMSA
  • Filtration filtration degree ( μm) : 5 μm
  • Maximum inlet pressure (MPa / bar / psi): 1.5 / 15 / 217
  • Suggested flow at 6.3 bar (0.63 MPa; 91 psi) Nl/min: 550
  • max temperature at 1MPa; 10 bar; 145psi ( °C): 50
  • Wall fixing screws: number 2 M4 screws
  • Fluid: compressed air or other inert gases
  • Filter / scrubber tank capacity: 30/15 cm3
  • Mounting position: upright
  • Coupling for additional air intakes: 1/8", front and rear
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
Note: the maximum inlet pressure for the RA version must not exceed 10 bar.

For other sizes or references: consult.

Dimensions:

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
