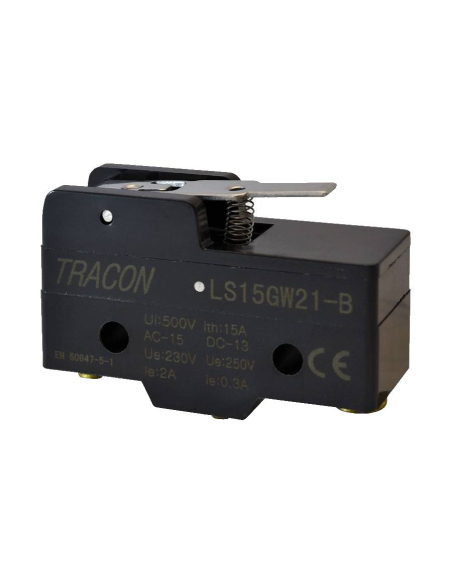

Short lever limit switch (microswitch microswitch) LS15 Series

€4.71 Tax included

€3.83 tax excl.

Short lever actuated limit switch (microswitch microswitch), 1 CO (NO/NC). High load capacity.


Part No.: LS15GW21-B

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch operated by short lever, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm)



Technical Characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GW21-B
  • Actuator type: Short lever
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0.3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1




Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Three-phase motor 0.12Kw... Three-phase motor 0.12Kw... 2
Three-phase electric motors 3000 rpm flange B5 aluminum housing IE1, IE2, IE3

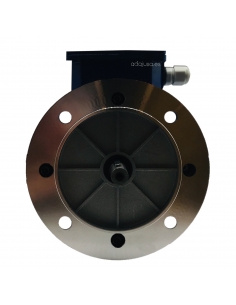

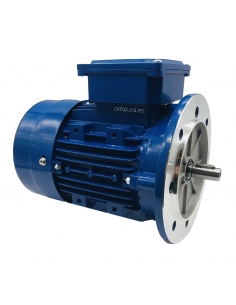

Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5
