Bearing 3311 BTVH 55x120x49.2mm - FAG

€177.68 Tax included

€146.84 tax excl.

Ball bearing 3311 double row angular contact,dimensions 55x120x49.2mm. Double row angular contact bearing, made of steel and with polymid cage.

Brand FAG.

Ref: 3311 BTVH

Logo-FAG

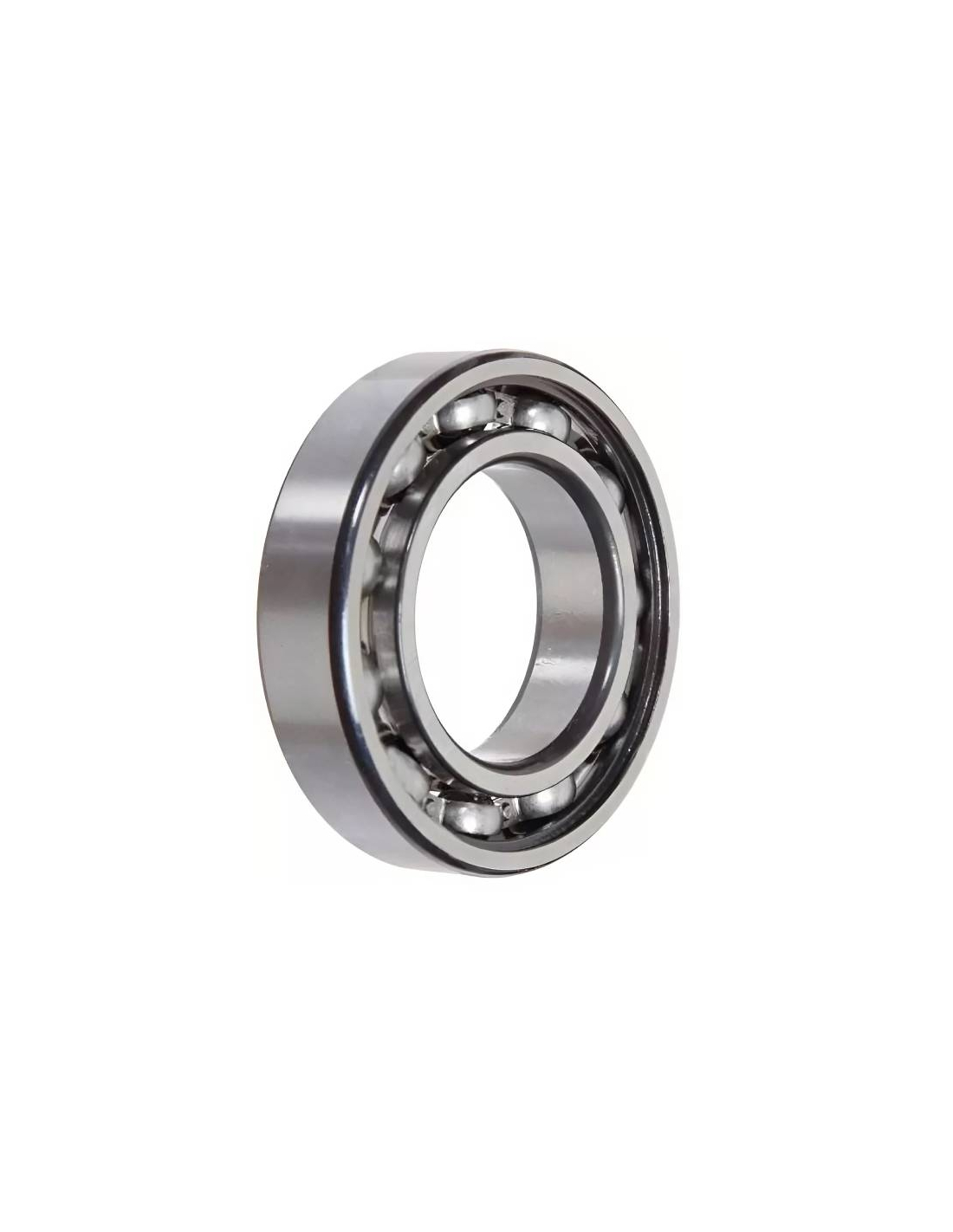

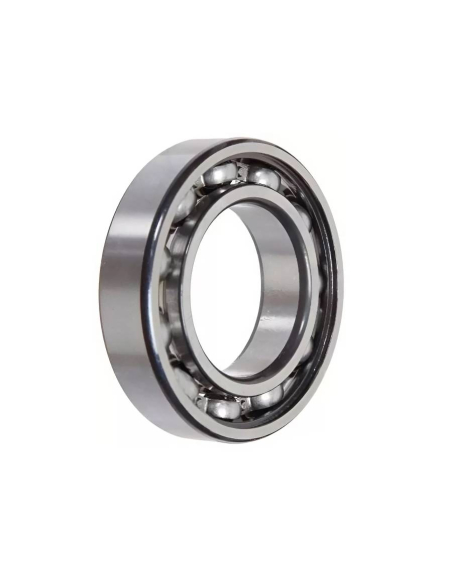

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Angular contact ball bearing, double row, series 3311 according to DIN 628-3, two rows of balls, without any type of opturation (open) and with cage in polyamide.

Double row angular contact ball bearings support high radial loads and axial forces in both directions, the contact angle of this series is 25o.

This type of bearings are suitable for operating temperatures from -30oC to +110oC

Dimensions: 55x-120x49.2.

For other references or measures consult.

Dimensiones doble hilera contacto angular

characteristics:

  • maker FAG
  • Reference: 3311 BTVH
  • Material: Tempered steel.
  • Dimension d: 55mm.
  • Dimension D: 120mm.
  • Dimension B: 49.2mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (N): 102000.
  • Static load capacity C₀r (N): 78000.
  • Contact Angle: ἀ-25o
  • Limit speed ng (min⁻1): 5000.
  • Weight: 2.32Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
