Cabinet distribution panel for recessing 18 modules (18x1) opaque door

€38.78 Tax included

31.53 tax excl.

EDSSN-18/1

Box 18-element distribution panel for flush mounting. White opaque door with special double spring lock, the opening direction of the door can be changed. Made of ABS, degree of protection IP40.


Reference: EDSSN-18/1


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns

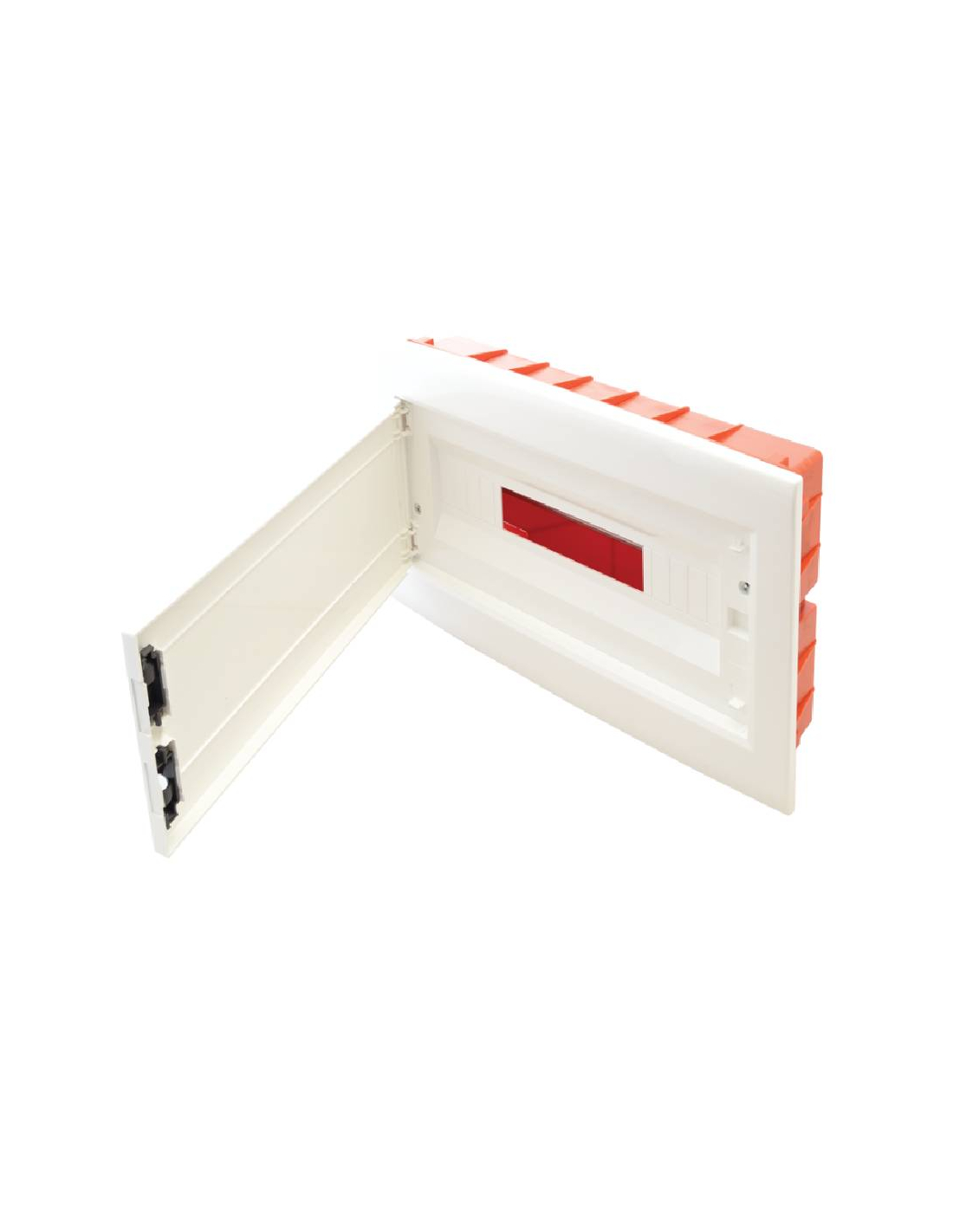

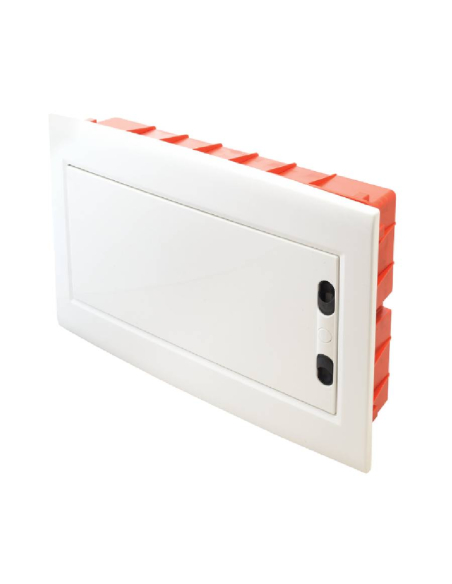

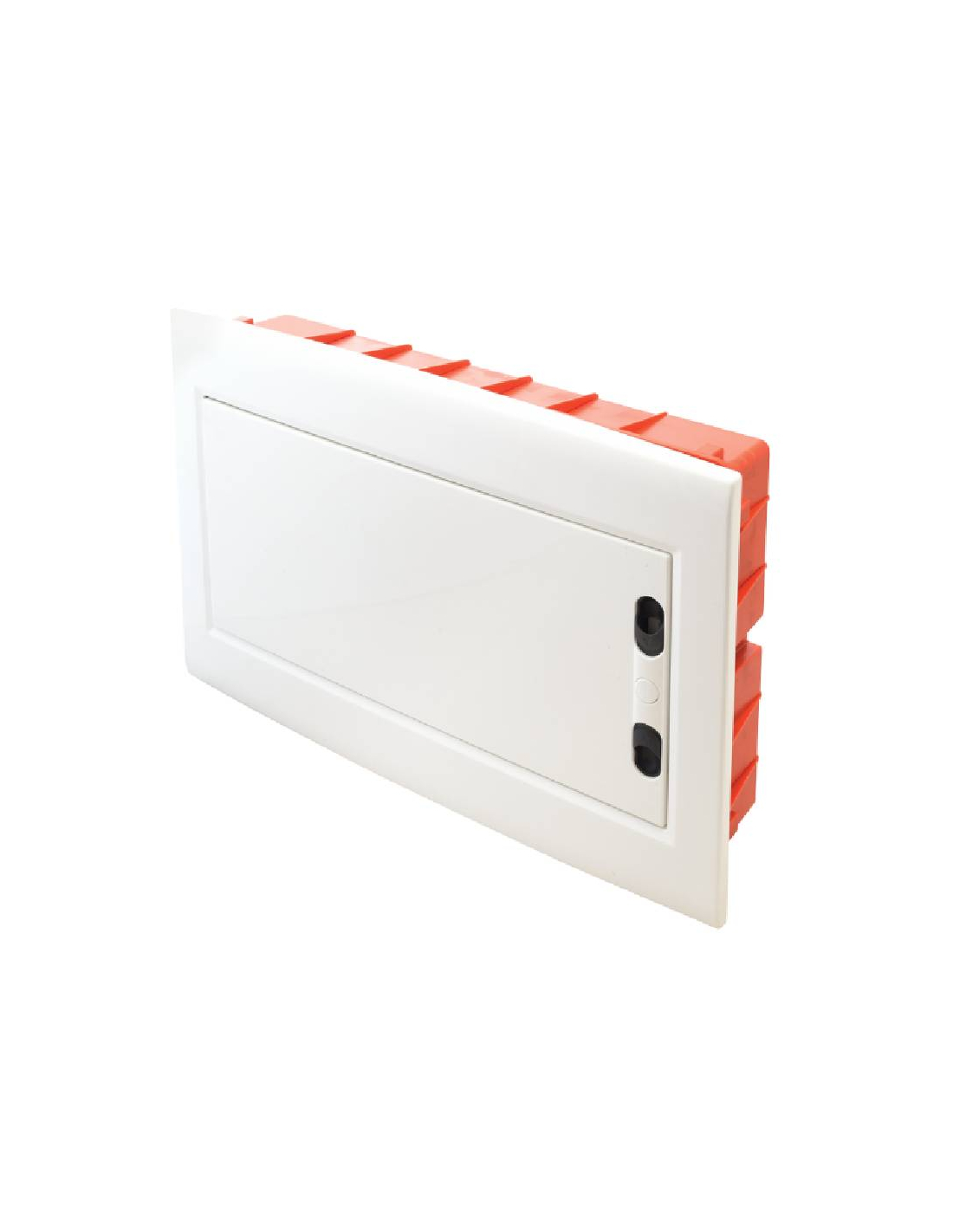

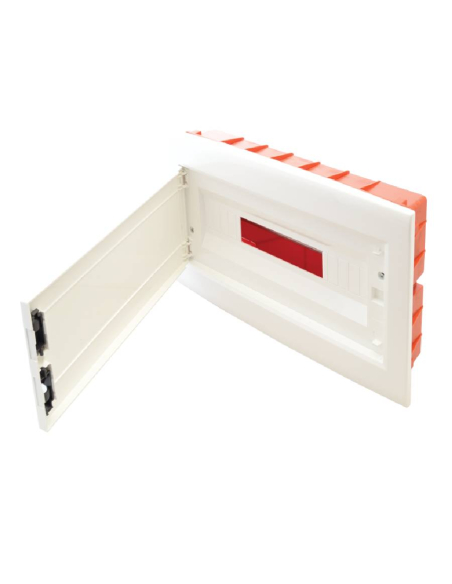

Cabinet 18-element electrical distribution cabinet for flush mounting, white opaque door and fast and ergonomic opening system with special double spring lock. The opening direction of the door can be changed, 180º opening. Made of ABS, cover can be sealable, IP40 protection degree.


Box with 18 modules distributed in a row, includes DIN rail for mounting elements

Technical features:

  • Manufacturer: TRACON
  • Part number: EDSSN-18/1
  • Number of modules: 18 (18x1)
  • Maximum insulation voltage: 660V
  • Mounting type: Recessed
  • Door: Opaque
  • Dimensions: 440 x 270 x 85 mm
  • Working temperature: -25ºC to +55ºC
  • Material: ABS
  • Color: RAL 9003
  • Degree of protection: IP40
  • Standard: EN 62208


Dimensions:







Material for professional use, install in compliance with the regulations in force at the place of installation.
