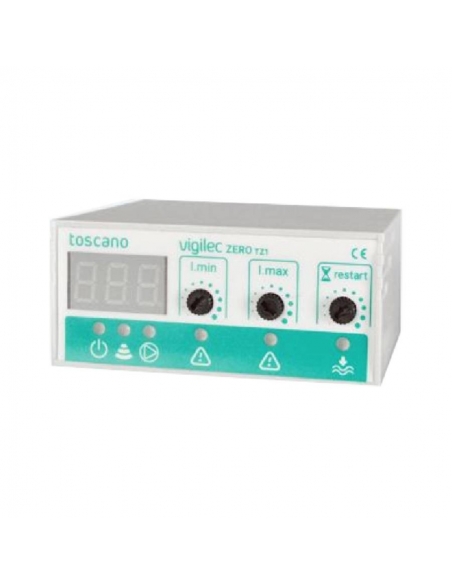

Plug-in control module for single-phase/three-phase control and protection panel TZ1-230 TOSCANO | ADAJUSA

Plug-in control module TZ1-230 for V1Z single-phase/three-phase control panel - TOSCANO

Name: Plug-in control module TZ1-230 for V1Z single-phase/three-phase control panel - TOSCANO
Brand: Toscano
SKU: TZ1-230
Price: 119.1729 EUR
Availability: InStock

€119.17 Tax included

€98.49 tax excl.

Pluggable control module for modular control and protection panel 1 single-phase or three-phase pump up to 18A , 230Vac power supply. It has an integrated display, simple adjustment and complete status indication. Compatible with PumpCheck data reader.

Reference: TZ1-230

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

The TZ1-230 control module allows quick and easy adjustment of the current for overload and underload protection, as well as the reset time. Its display allows you to show data such as the status of the pump and its current consumption, operating modes and times, detected faults and alarm. It also has pilot lights indicating the presence of voltage, pump operation, infrared communication (PumpCheck), states of underload, overload/phase failure and low level.

Characteristic:

Manufacturer: Toscano
Reference: TZ1-230
Power supply: Single-phase or Three-phase 230VAC
Current : 18 A / AC3

Control Module Parts:

The following messages will be shown on the display when the side selector changes from the 0 position to the AUTO position as long as the equipment is correctly powered.
The "Inhibit Time" message will only be displayed when the flow detector option is enabled:

For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
