Control panel and protection ECO-VE-COMBI three-phase 32A Toscano ADAJUSA

Control panel and protection 4x32A electric vehicle charging ECO-VE-COMBI-4P32T15 - Toscano

Delivery time 3-4 days

€354.76 Tax included

288.42 tax excl.

VE-C-4P32T15

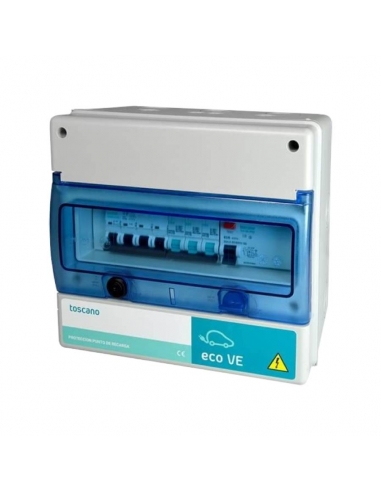

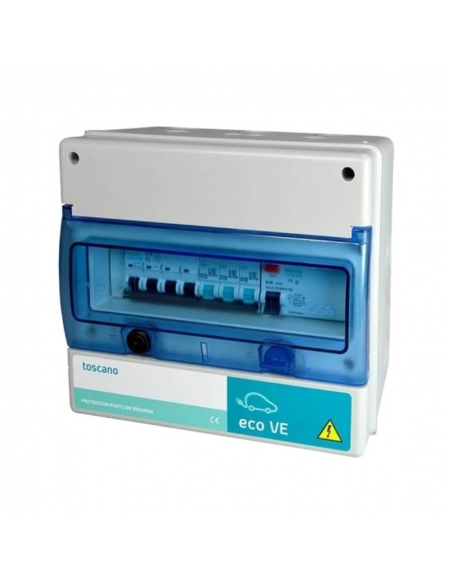

32A three-phase control and protection panel for electric vehicle charging point, according to diagram 1 and 3 of the ITC-BT-52 standard. Equipped with 32A IGA, class "A" differential and key lock. Degree of protection IP65.

This panel is equipped with surge protectors, both transient and permanent.

Reference: ECO-VE-COMBI-4P32T15

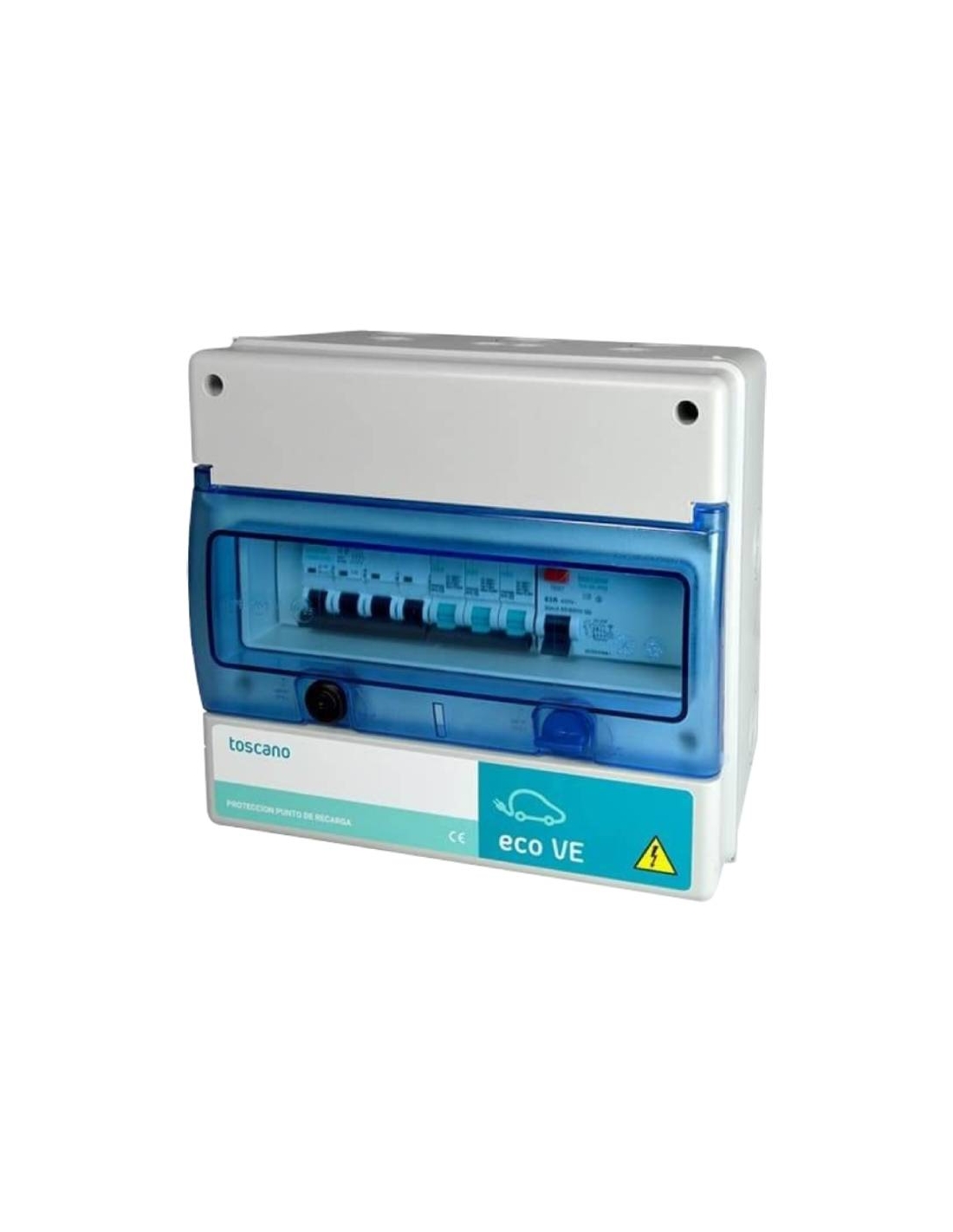

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

The ECO-VE-COMBI control and protection panels are designed to protect electric vehicle charging stations in accordance with the ITC-BT-52 directive.

The protection panel is equipped with protection against both permanent and transient surges in the electrical network.

The protection against transient surges protects against electrical discharges filtered through the network due to a thunderstorm and impacts caused by lightning or shunting of the transformers supplying the network. This protection shunts such discharge to the ground connection, preventing it from reaching the charging station. If the protection is triggered, red indicators will be displayed on the device and reconnection will be prevented. If this is the case, the transient protection cartridge must be replaced by firmly pulling it out and replacing it with a new one. The permanent protection protects against mains voltage surges above 275 V according to EN 50550, limiting the operation of the equipment and preventing voltage above this from reaching the charging station.

General characteristics

Manufacturer: Toscano
Reference: ECO-VE-COMBI-4P32T15
Amperage: 4x32A
Power rating: 22.17kW
Nominal voltage: 230Vac (L/N) / 400Vac (L/L) 50/60Hz
Vigivolt protection consumption: 0.3VA
Maximum terminal cross-section: 25mm²
Environmental ranges: -5ºC to +40ºC / 80º HR
Degree of protection: IP65
Dimensions (mm): 362x362x160
Lock: Metal key lock

Permanent Characteristics

Tripping voltage: >270Vac
Overvoltage response time: according to norm EN 50550

IGA characteristics

Rated current: 32A
Tripping curve: C
Breaking capacity: 10kA

Differential Characteristics

Class A: Alternating and pulsed current
Leakage current: 30mA

Transient Characteristics

Maximum voltage Uc: 320VAC (L/N)
Protection level Up (L/N) (N/PE):
Maximum discharge current (8/20µs) Imax (L/N) (N/PE): 15kA
Class: II

Standards:
IEC 61643-11 / EN 61643-11/ IEC 61439-123 / ITC-BT-52 / EN 50539-11:2013/A1:2014 / EN 60269-6:2011 / IEC 60364-7-712:2017 RLV / EN 60947 3:2009/A2:2015 / EN 61439-1:2012/ EN 61439-2:2012 / A11:2018

Connection

For further information you can download the data sheet by clicking on the "Attachments" tab.
Professional use material, install in compliance with the regulations in force at the place of installation

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

ECO-VE-COMBI Toscano Manual

Download (2.42MB)
