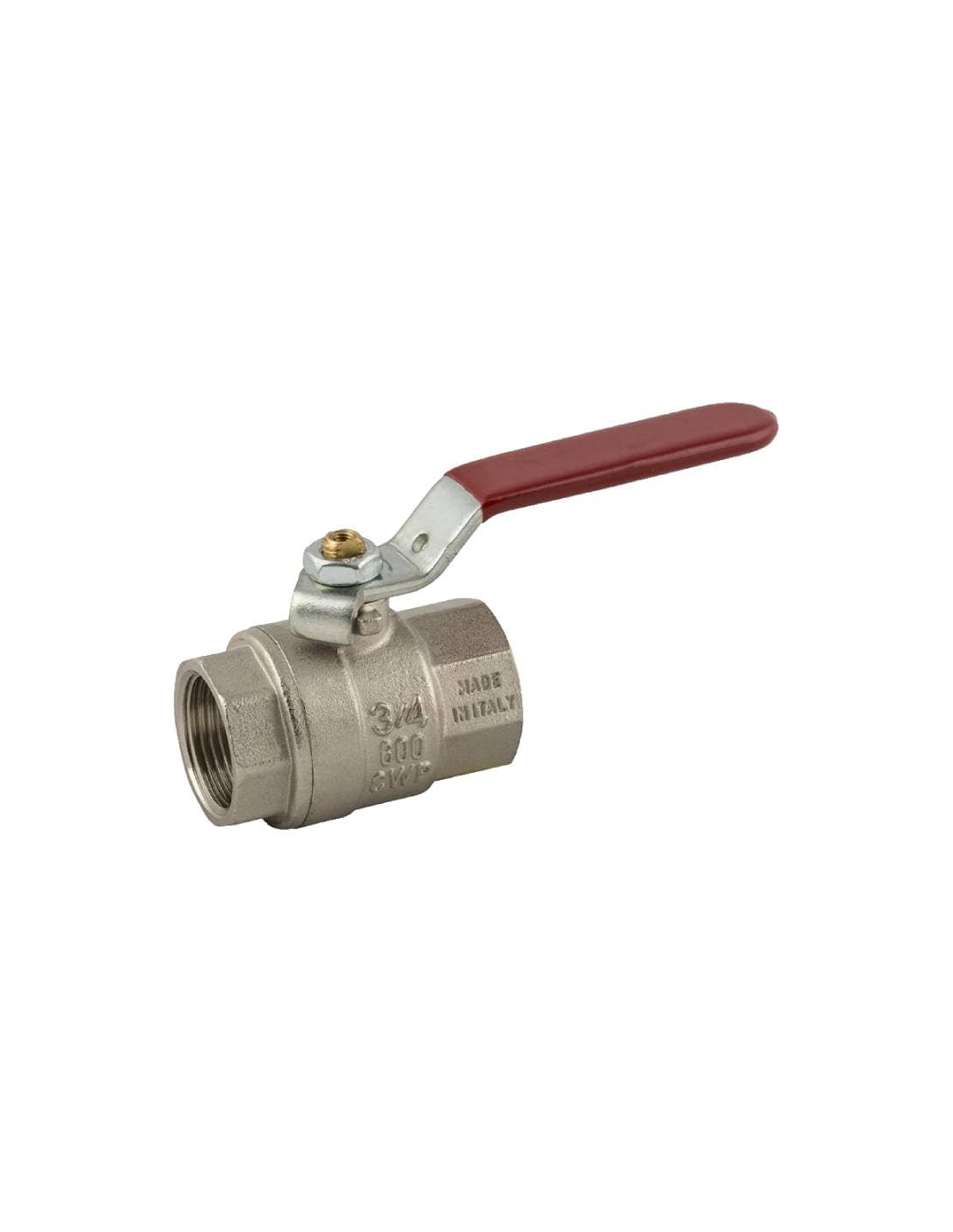

Two way G3/4 female ball valve (ISO 228 compliant) with lever operation. Body made of nickel-plated brass, plastic-coated steel maneuver cam and PTFE sphere seat gasket. These excellent performance valves ensure a reliable seal and secure connection between components. They are used to close the air passage in various pneumatic applications such as tools and compressed air, automation, thermo-hydraulic sector, food and beverages, life & science, plumbing, vacuum, inert gases, fluid interception, etc.
These on-off type valves have two possible positions, open or closed . In the ON position, the fluid from the circuit passes through the valve and when it is in the OFF position, it completely blocks the flow of fluid.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 6067 3/4
- Thread: Female 3/4 (Gas cylindrical thread conforming to ISO 228)
- Material: Chromed brass
- Application fluids: Compressed air / Water
- Pressure (up to DN 20): See values represented in the diagram
- Pressure (DN25 - DN 50): Max. 18bar
- Thread regulations:
- Gas conforms to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- NPTF Metric conforms to ANSI B1.20.5
Pressure - temperature diagram:
For more information you can download the technical sheet by clicking on the "Attachments" tab .
Material for professional use, install in compliance with the regulations in force at the installation site.
